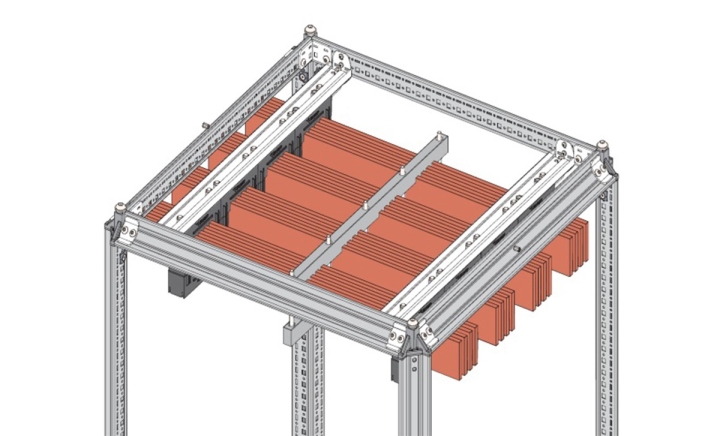

• Suitable for Teos Main Busbar crossbars and use with flat busbars
• Can be used on busbars with widths of 40mm/50mm/60mm/80mm and 10mm thickness.
• Suitable for 3-pole and 4-pole assembly. Mounting and fixing points on the crossbar are standard.
• Compliant with IEC 61439-1&2 and UL508A standards.
• Flame retardant rating V0 according to UL 94.
• Short-circuit withstand: Icw up to 85kA, Ipk up to 176kA.

Insulation levels:
Ue 690V AC, Ui 1000V AC, Uimp 12kVA.

Material:
Glass Fiber Reinforced Polyester (UP)

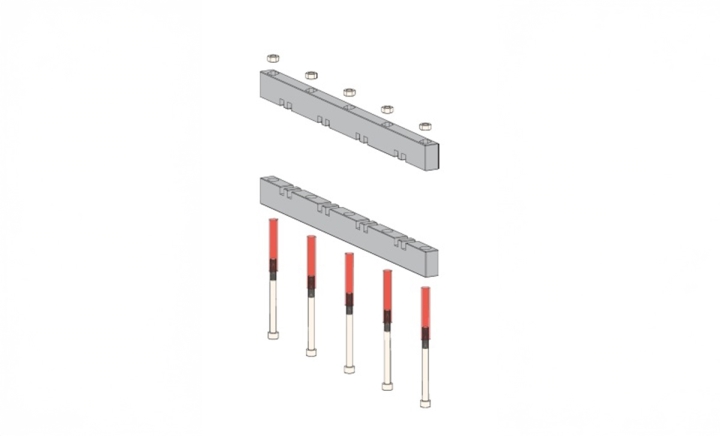

Supply Includes:
2 support holders and connecting parts
