General Overview

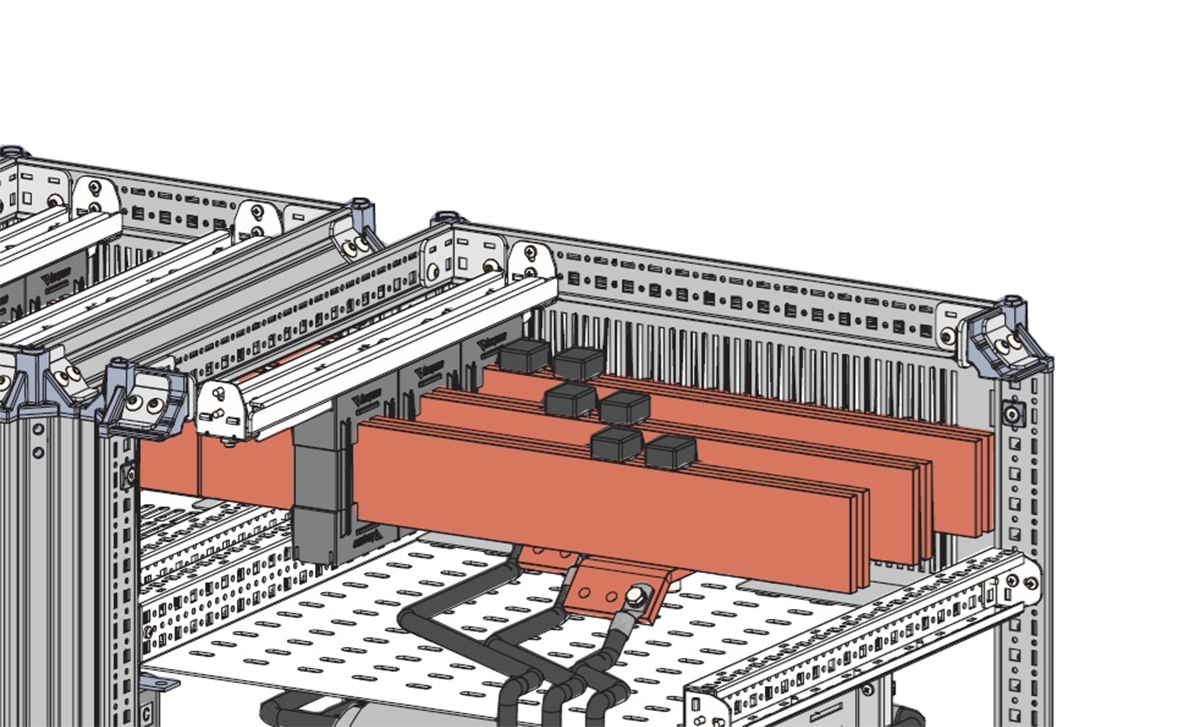

Main Busbar Form2 Segregation

  • Used to segregate the main busbar from the functional sections of the switchboard.
  • Compatible with Teos series panels.
  • Suitable for use in enclosures with mounting plates.
  • Complies with IEC 61439-1 & 2 standards.

Insulation level:
Ue: 690V AC, Ui: 1000V AC, Uimp: 12kV AC.

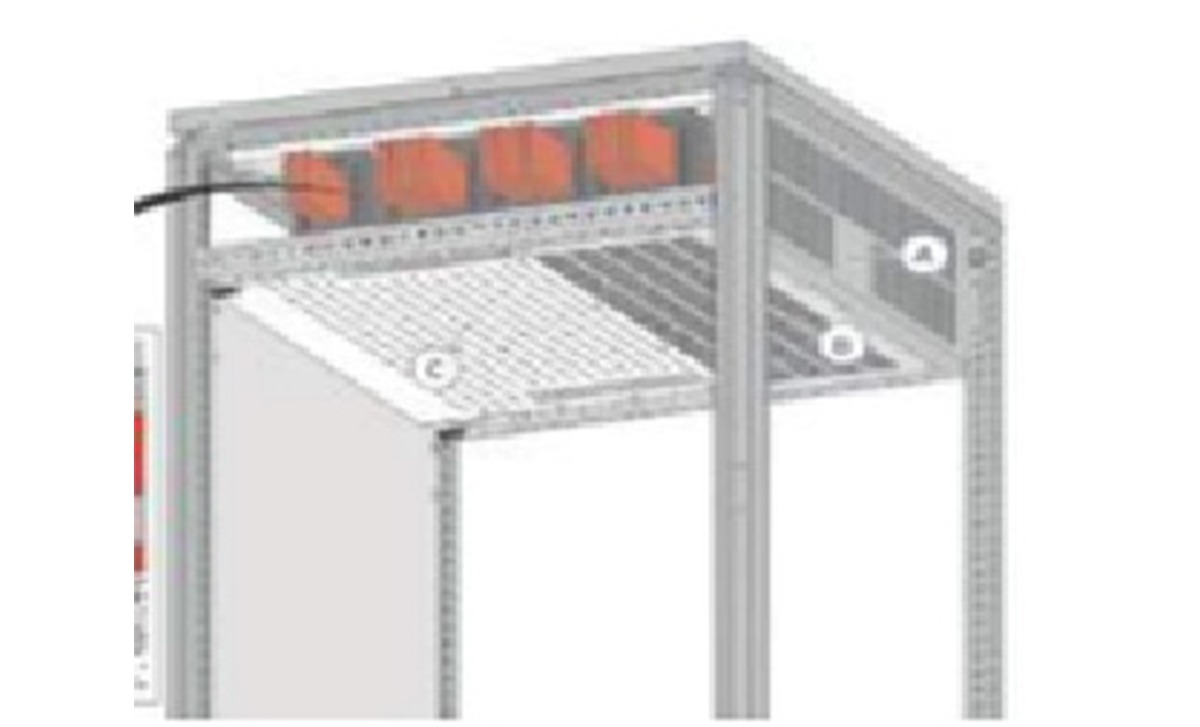

Material:
(A) Main Busbar Front Cover: DC-01 Steel Sheet + RAL 7035 Powder Coating
(B) Main Busbar Separation Shelf: DX51 Galvanized Sheet Steel
(C) Main Busbar Separation Shelf: Polycarbonate Plastic
(D) Depth Spacer: DC-01 Sheet Steel+ Zinc Coating
(E) Spacer Bracket: DC-01 Sheet Steel+ Zinc Coating


Main Bus Front Cover
   Product CodePacks OfTeos Enclosure Width
2D DXF3D STEP1013.0401 400mm
2D DXF3D STEP1013.0601 600mm
2D DXF3D STEP1013.0801 800mm
2D DXF3D STEP1013.1001 1000mm
2D DXF3D STEP1013.1201 1200mm
Main Bus Separation Shelf
   Product CodePacks OfTeos Enclosure Width
2D DXF3D STEP1008.1001 1000mm
2D DXF3D STEP1008.1201 1200mm
2D DXF3D STEP1008.1401 400mm
2D DXF3D STEP1008.1601 600mm
2D DXF3D STEP1008.1801 800mm
Main Bus Separation Shelf (Polycarbonate)
   Product CodePacks OfTeos Enclosure WidthTeos Enclosure Depth
2D DXF3D STEP1027.1061 1000mm600mm
2D DXF3D STEP1027.1081 1000mm800mm
2D DXF3D STEP1027.12611200mm600mm
2D DXF3D STEP1027.1281 1200mm800mm
2D DXF3D STEP1027.1461400mm600mm
2D DXF3D STEP1027.1481 400mm800mm
2D DXF3D STEP1027.1661 600mm600mm
2D DXF3D STEP1027.1681 600mm800mm
2D DXF3D STEP1027.1861 800mm600mm
2D DXF3D STEP1027.1881 800mm 800mm

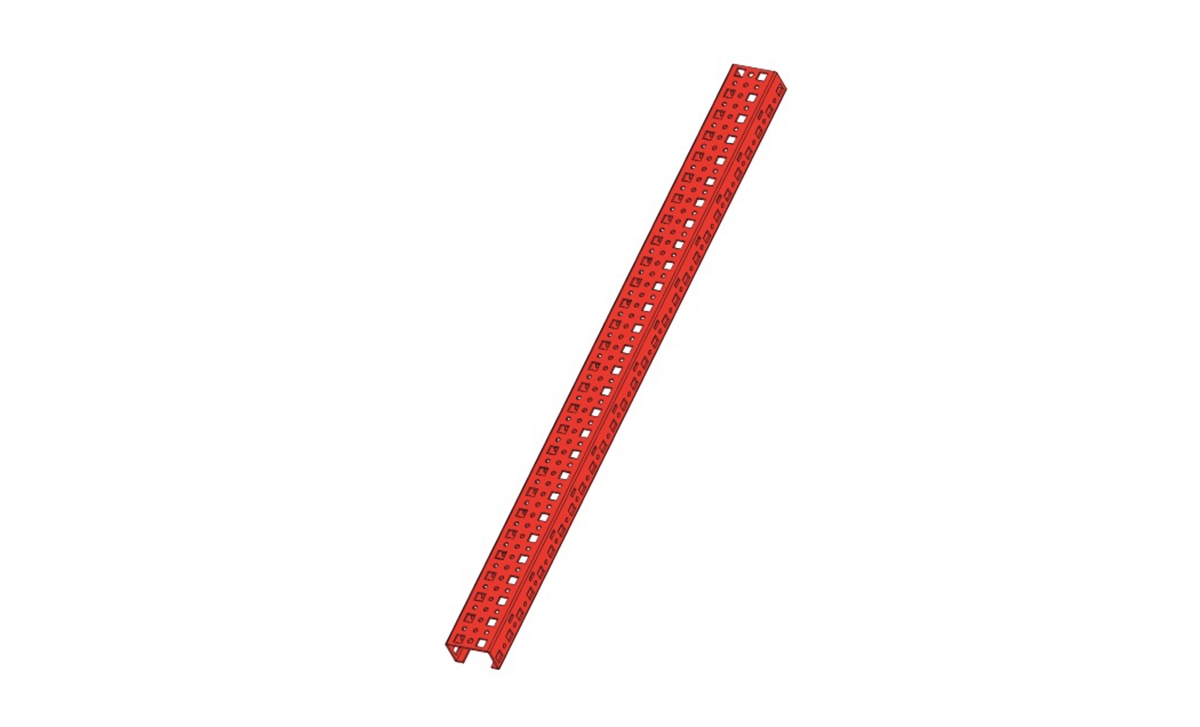

Depth Crossbar
   Product CodePacks OfTeos Enclosure Depth
2D DXF3D STEP944.9242 600mm
2D DXF3D STEP944.9252 800mm

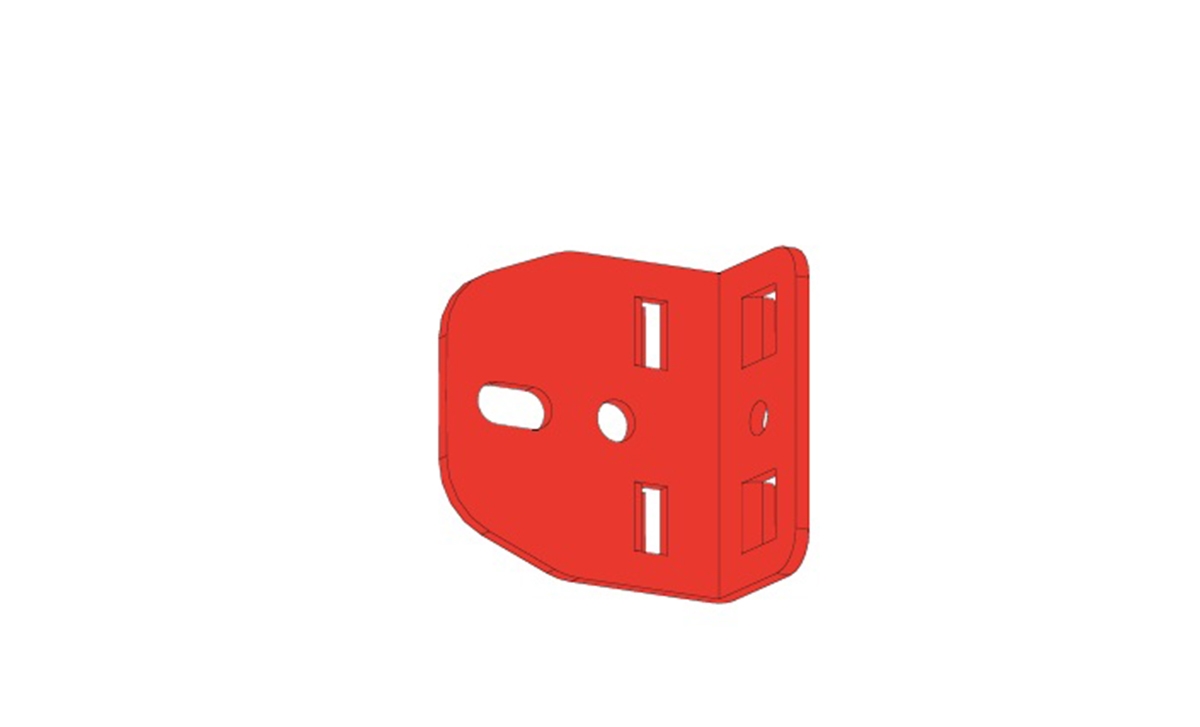

Snap-in Bracket
   Product CodePacks Of
2D DXF3D STEP944.42112
