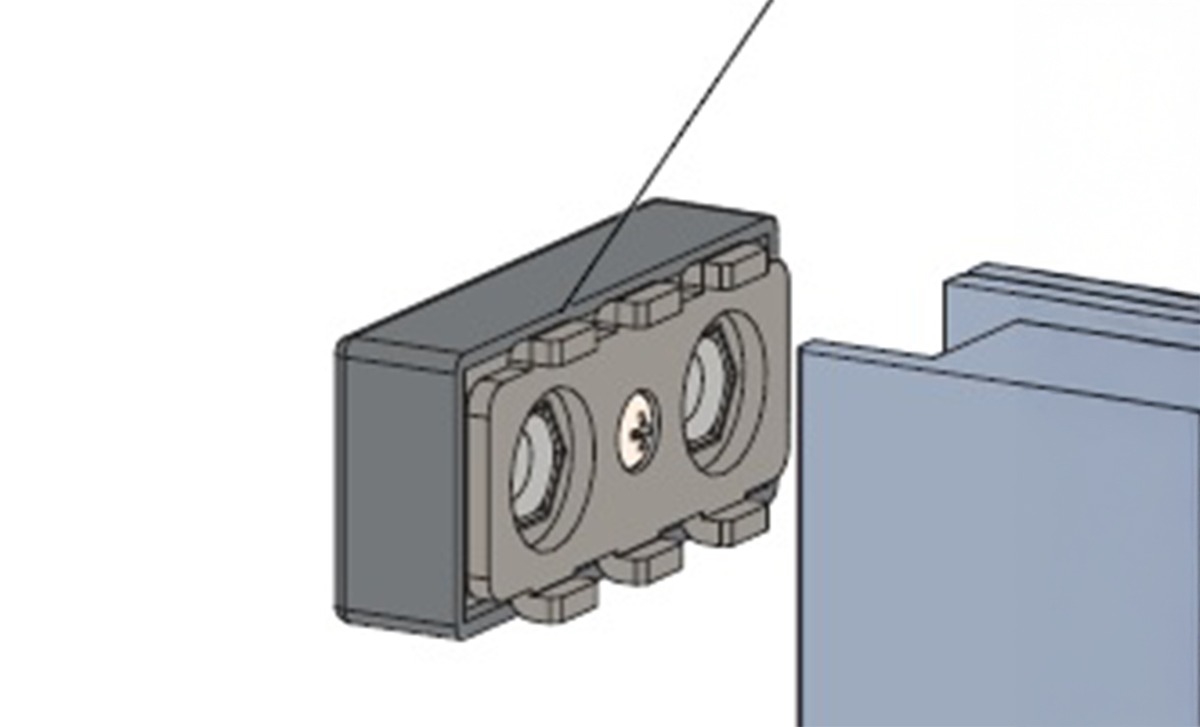

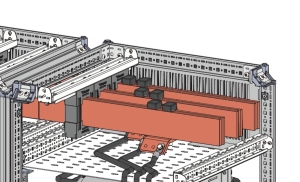

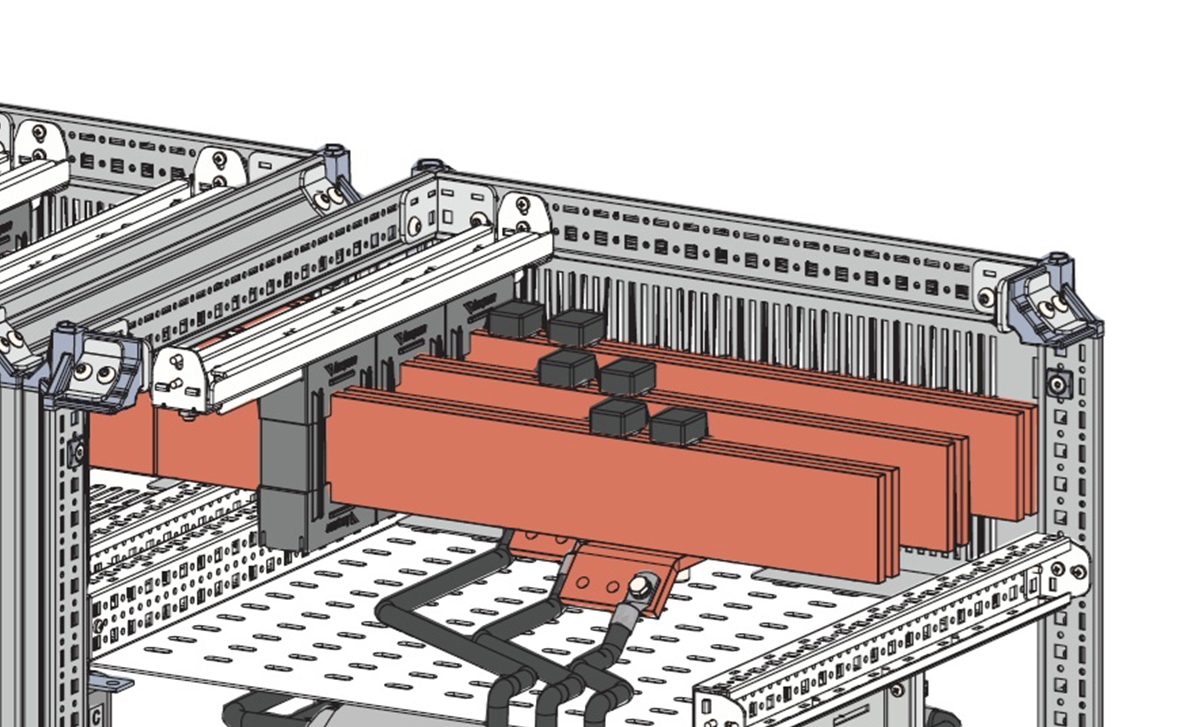

- Used to take a connection from the main bus without drilling in flat busbars.
- Suitable for 2 x 10mm and 4 x 10mm busbars.
- 2 x 10mm bars use 1 x M8 nut, 4 x 10mm bars use 2 x M10 nuts.
- Compliant with IEC 61439-1&2 standards.
- Short-circuit withstand capacity: Icw up to 85kA, Ipk up to 176kA.
Rated voltage:
Ue 690V AC, Ui 1000V AC, impulse withstand voltage Uimp 12kV.
Material:
Nut Clamp:
DC-01 Sheet Steel+ Zinc Plating
Insulation Cover:
Glass Fiber Reinforced Polyamide (PA 6.6)
Screws:
DIN 912 8.8
Supply Includes:
Refer to dimensions/order codes section.
| | |
|---|

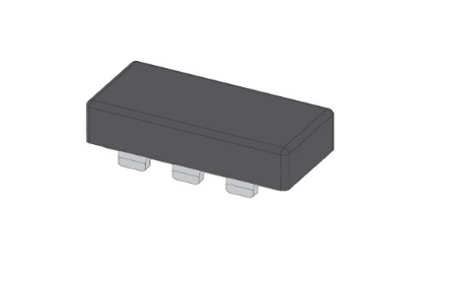

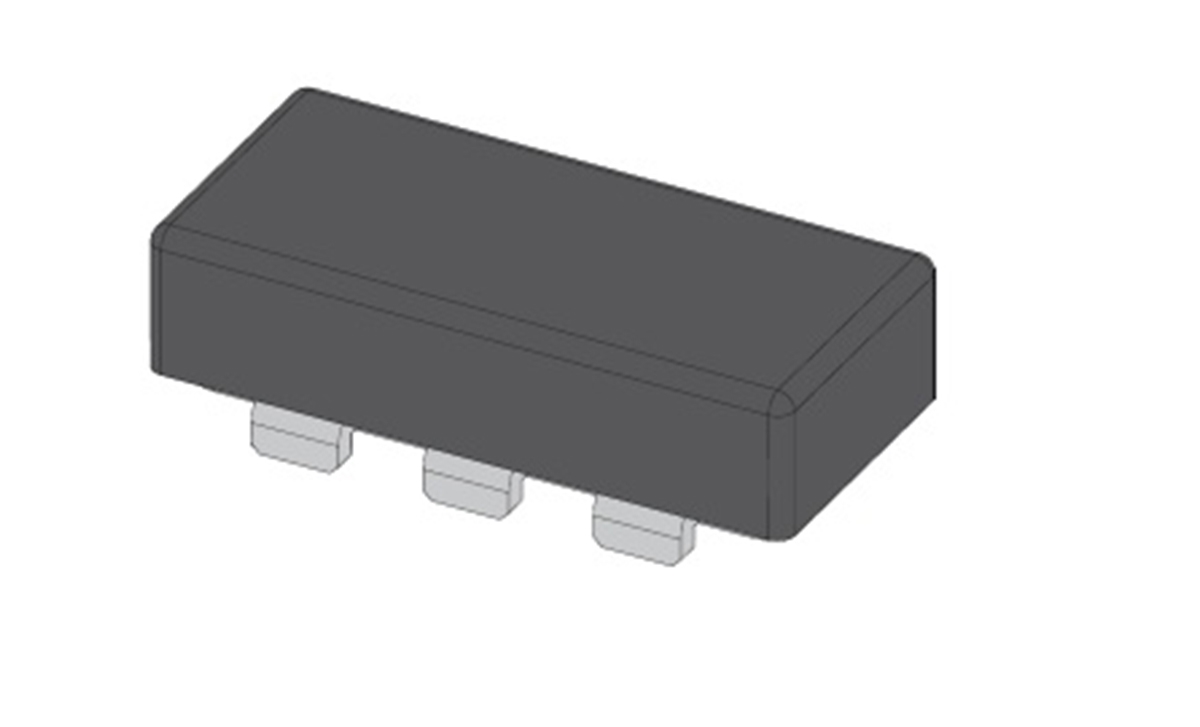

Flexible Busbar Connection Nut (4x10mm Busbar)
 | | | | | Product Code | Packs Of |
|---|
| 2D DXF | 3D STEP | 1035.001 | 40 |
|

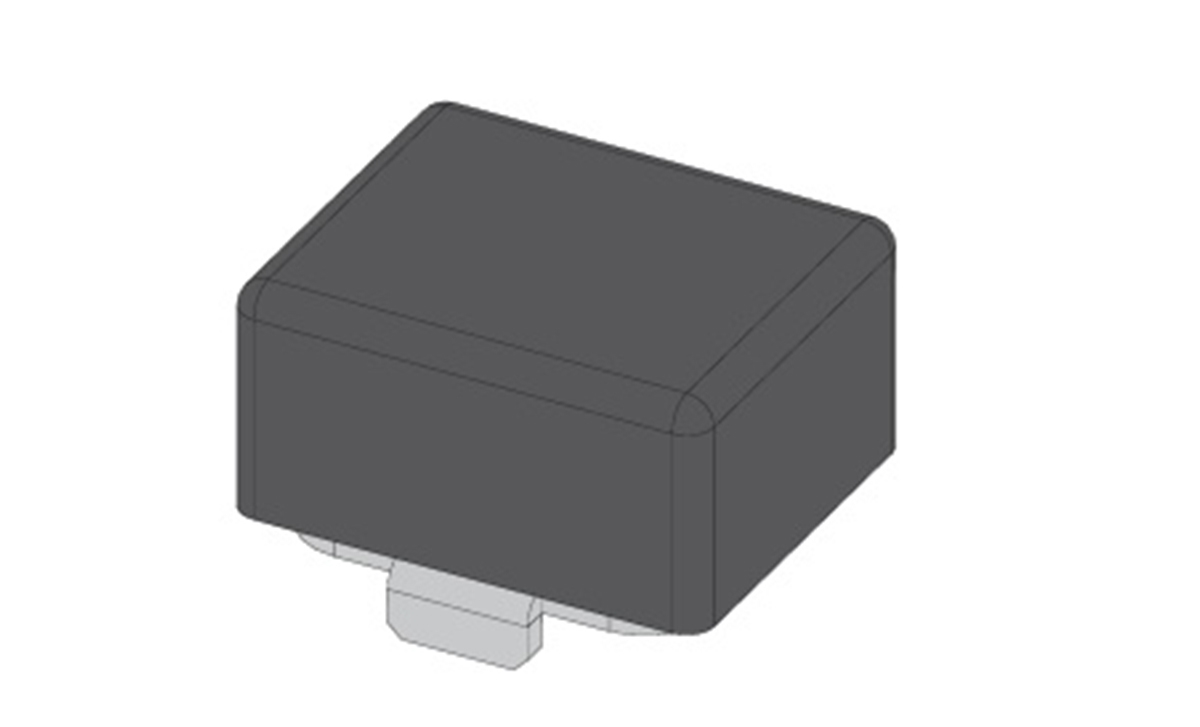

Flexible Busbar Connection Nut (2x10mm Busbar)
 | | | | | Product Code | Packs Of |
|---|
| 2D DXF | 3D STEP | 1035.011 | 40 |
|
