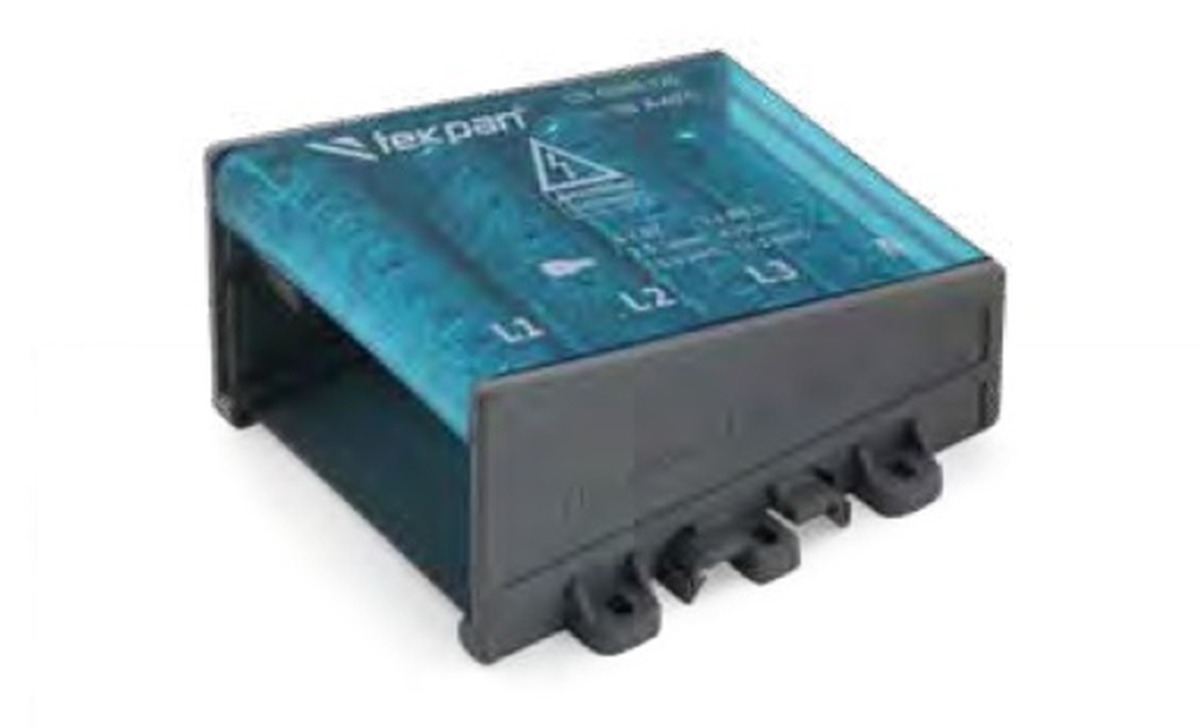

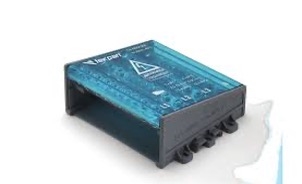

4-Pole Distribution Blocks
 | | | | | Product Code | Packs Of | Pole | Current(A) | Size(mm) | Cable Sizes |
|---|
| 2D DXF | 3D STEP | CS 4608.125 | 1 | 4 | 125A | 125x134x70 | 6x (2,5-16mm2) 2x(2,5-25mm2) | | 2D DXF | 3D STEP | CS 4608.160 | 1 | 4 | 160A | 125x134x70 | 6x (2,5-16mm2) 2x(2,5-35mm2) | | 2D DXF | 3D STEP | CS 4608.250 | 1 | 4 | 250A | 125x134x70 | 6x (2,5-16mm2) 2x(2,5-35mm2) | | 2D DXF | 3D STEP | CS 4611.125 | 1 | 4 | 125A | 165x134x71 | 7x (2,5-16mm2) 4x(2,5-25mm2) | | 2D DXF | 3D STEP | CS 4611.160 | 1 | 4 | 160A | 165x134x71 | 7x (2,5-16mm2) 4x(2,5-35mm2) | | 2D DXF | 3D STEP | CS 4611.250 | 1 | 4 | 250A | 165x134x71 | 7x (2,5-16mm2) 4x(2,5-35mm2) | | 2D DXF | 3D STEP | CS 4614.125 | 1 | 4 | 125A | 205x134x72 | 8x (2,5-16mm2) 6x(2,5-25mm2) | | 2D DXF | 3D STEP | CS 4614.160 | 1 | 4 | 160A | 205x134x72 | 8x (2,5-16mm2) 2x(2,5-25mm2) 4x(2,5-35mm2) | | 2D DXF | 3D STEP | CS 4614.250 | 1 | 4 | 250A | 205x134x72 | 8x (2,5-16mm2) 2x(2,5-25mm2) 4x(2,5-35mm2) | | 2D DXF | 3D STEP | CS 4617.125 | 1 | 4 | 125A | 250x134x73 | 9x (2,5-16mm2) 8x(2,5-25mm2) | | 2D DXF | 3D STEP | CS 4617.160 | 1 | 4 | 160A | 250x134x73 | 9x (2,5-16mm2) 4x(2,5-25mm2) 4x(2,5-35mm2) | | 2D DXF | 3D STEP | CS 4617.250 | 1 | 4 | 250A | 250x134x73 | 9x (2,5-16mm2) 4x(2,5-25mm2) 4x(2,5-35mm2) |
|

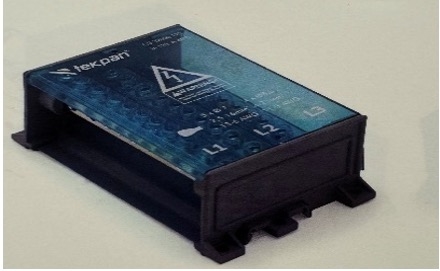

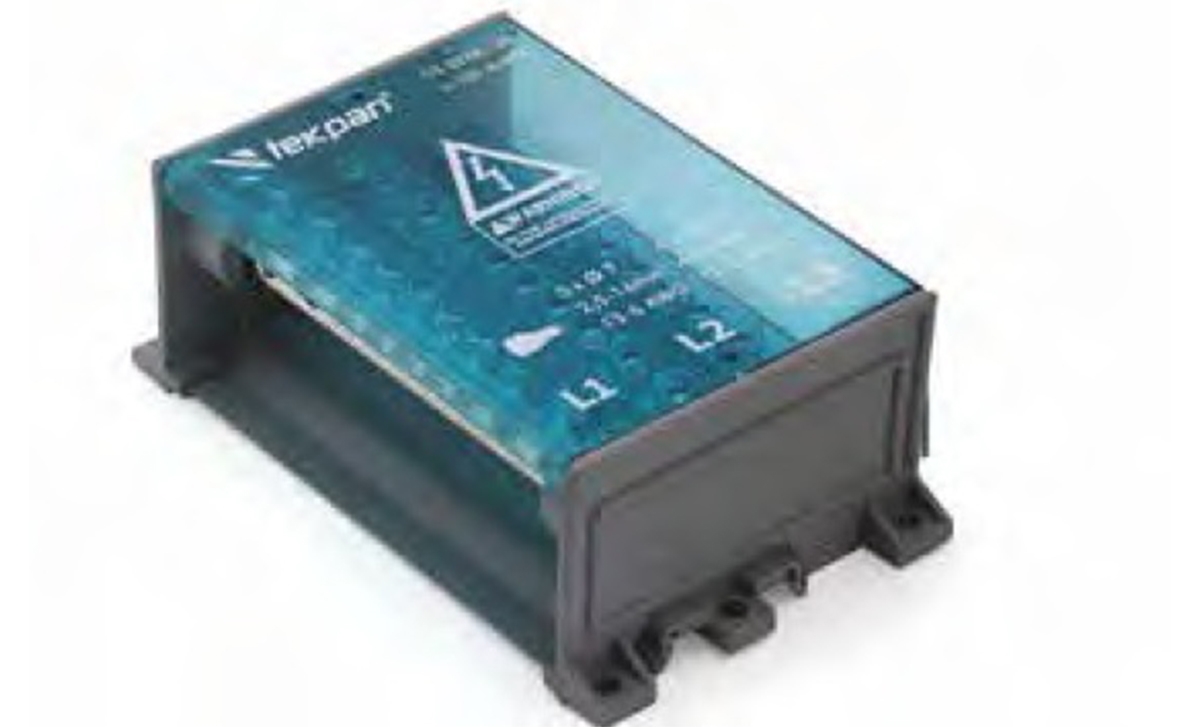

3-Pole Distribution Blocks
 | | | | | Product Code | Packs Of | Pole | Current(A) | Size(mm) | Cable Sizes |
|---|
| 2D DXF | 3D STEP | CS 3606.125 | 111111 | 3*** | 125A | 121x99,4x60,5 | 4x (2,5-16mm2) 2x(2,5-25mm2) | | 2D DXF | 3D STEP | CS 3606.160 | 1 | 3 | 160A | 121x99,4x60,5 | 4x (2,5-16mm2) 2x(2,5-35mm2) | | 2D DXF | 3D STEP | CS 3606.250 | 1 | 3 | 250A | 121x99,4x60,5 | 4x (2,5-16mm2) 2x(2,5-35mm2) | | 2D DXF | 3D STEP | CS 3611.125 | 1 | 3 | 125A | 161x99,4x60,5 | 5x (2,5-16mm2) 4x(2,5-25mm2) | | 2D DXF | 3D STEP | CS 3611.160 | 1 | 3 | 160A | 161x99,4x60,5 | 5x (2,5-16mm2) 4x(2,5-35mm2) | | 2D DXF | 3D STEP | CS 3611.250 | 1 | 3 | 250A | 161x99,4x60,5 | 5x (2,5-16mm2) 4x(2,5-35mm2) | | 2D DXF | 3D STEP | CS 3614.125 | 1 | 3 | 125A | 201x99,4x60,5 | 6x (2,5-16mm2) 6x(2,5-25mm2) | | 2D DXF | 3D STEP | CS 3614.160 | 1 | 3 | 160A | 201x99,4x60,5 | 6x (2,5-16mm2) 2x(2,5-25mm2) 4x(2,5-35mm2) | | 2D DXF | 3D STEP | CS 3614.250 | 1 | 3 | 250A | 201x99,4x60,5 | 6x (2,5-16mm2) 2x(2,5-25mm2) 4x(2,5-35mm2) | | 2D DXF | 3D STEP | CS 3617.125 | 1 | 3 | 125A | 246x99,4x60,5 | 7x (2,5-16mm2) 8x(2,5-25mm2) | | 2D DXF | 3D STEP | CS 3617.160 | 1 | 3 | 160A | 246x99,4x60,5 | 7x (2,5-16mm2) 4x(2,5-25mm2) 4x(2,5-35mm2) | | 2D DXF | 3D STEP | CS 3617.250 | 1 | 3 | 250A | 246x99,4x60,5 | 7x (2,5-16mm2) 4x(2,5-25mm2) 4x(2,5-35mm2) |
|
