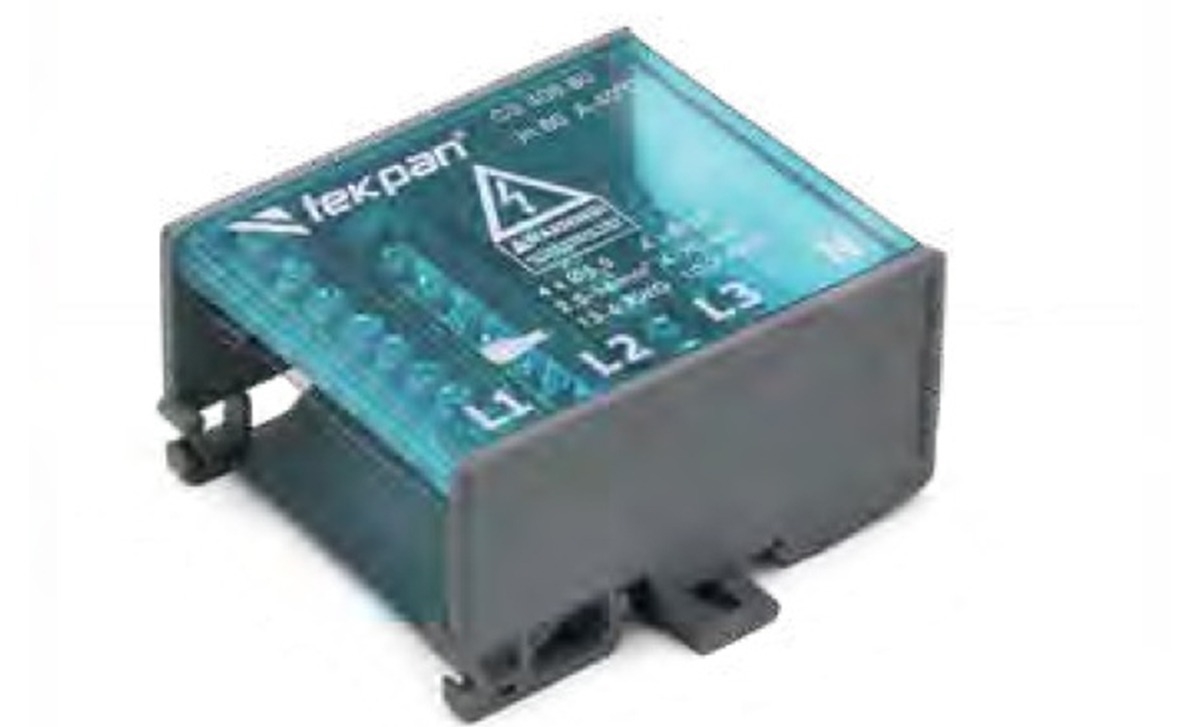

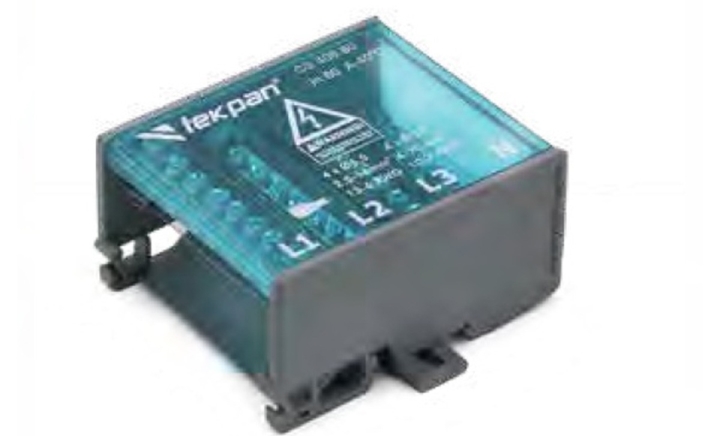

DIN Rail Mounted Distribution Blocks 80A–125A

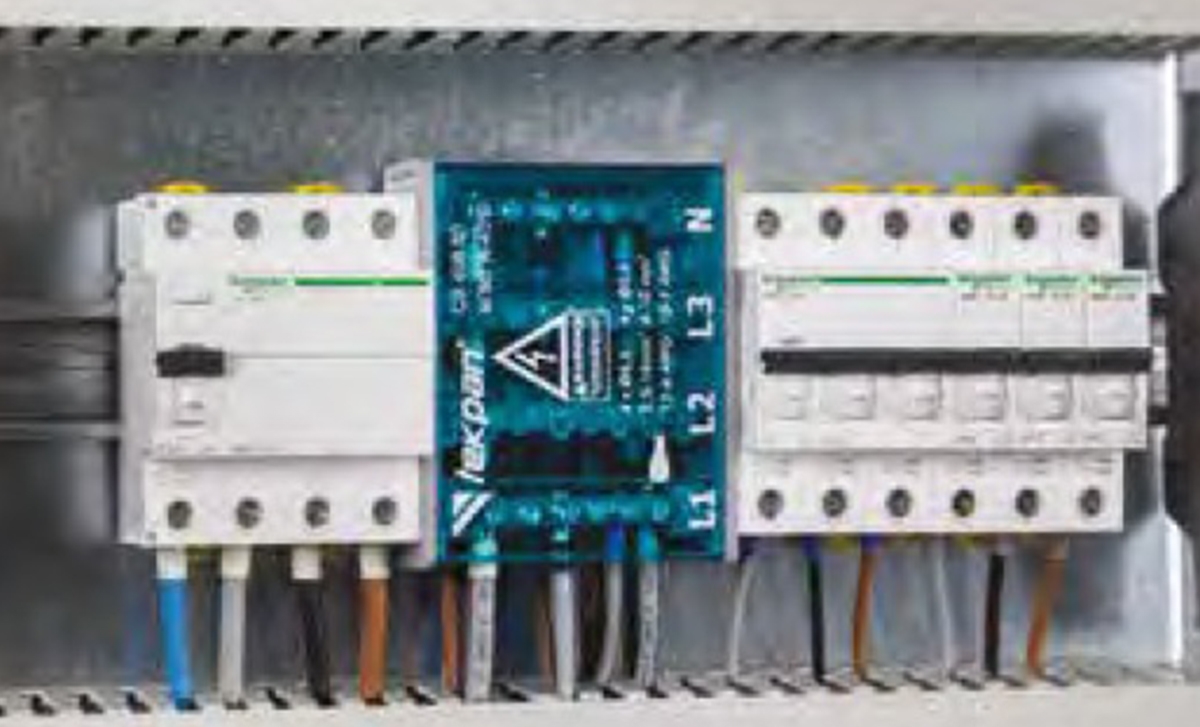

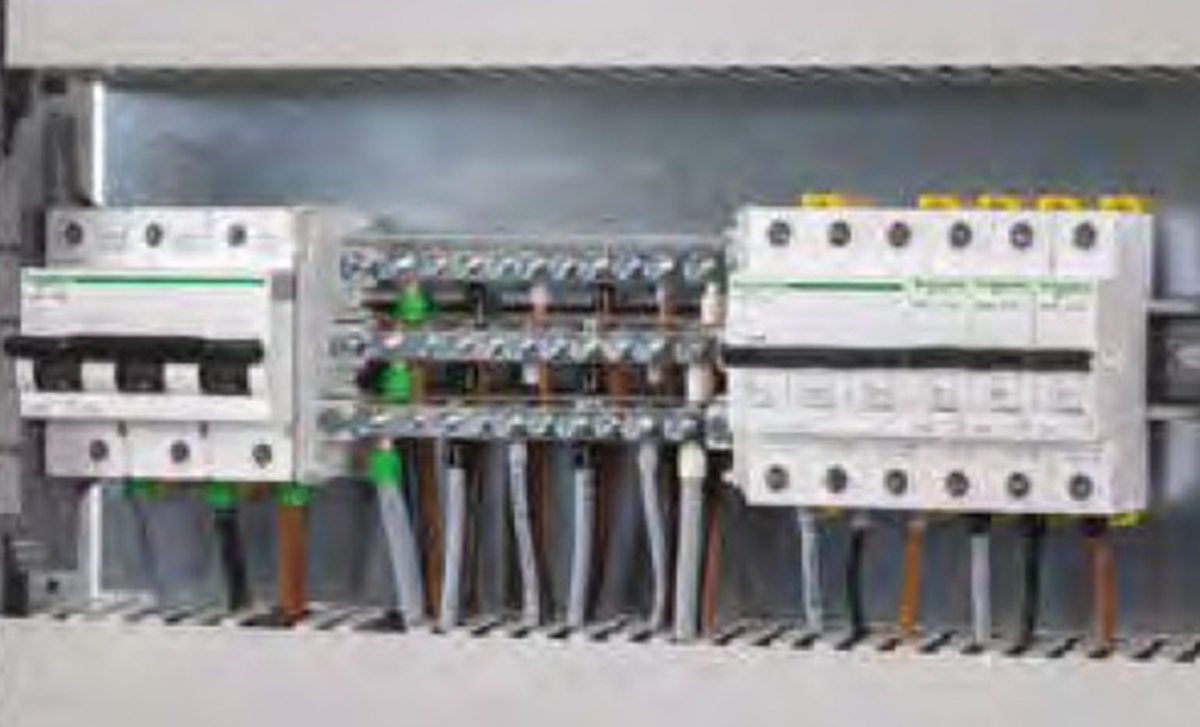

  • Used for internal panel power distribution and for multi power outputs.
  • Suitable for DIN rail mounting.
  • Available in 4-pole and 3-pole versions.
  • Power options: 80A – 125A.
  • Compliant with IEC 60947-7-1, IEC 60947-1, and IEC 61439-1 standards.
  • Operational Voltage (Ue): 415V AC
  • Insulation Voltage (Ui): 500V AC / 500V DC (for DIN rail mounting)
  • Insulation Voltage (Ui): 800V AC / 800V DC (for direct mounting plate)
  • Impulse Voltage (Uimp): 6kV
  • Short-Circuit Withstand (Icw): 80A: 2kA / 125A: 3kA
  • Peak Short-Circuit Current (Ipk): 80A: 3kA / 125A: 4.5kA
  • Fire resistance rating according to UL 94: V0.
  • Halogen-free.

Material:
Active Conductors:
Tin-plated Brass

Plastic Parts:
Glass-Fiber Reinforced Polyamide (PA 6.6)

CE EAC ROHS IEC

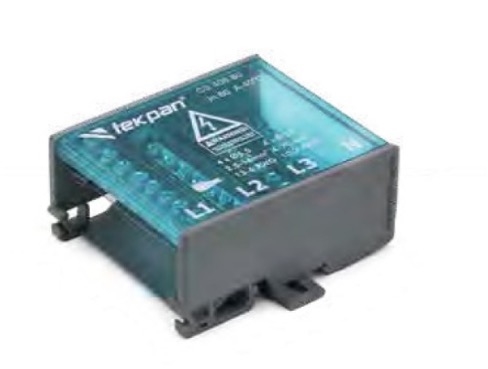

4-Pole DIN Rail Type Distribution Blocks
   Product CodePacks OfPoleCurrent(A)Size(mm)Cable Sizes
2D DXF3D STEPCS 4507.12514125A103x100x535x (2,5-16mm2) 2x(2,5-25mm2)
2D DXF3D STEPCS 4508.0801480A103x100x534x (2,5-16mm2) 4x(2,5-10mm2)
2D DXF3D STEPCS 4510.12514125A133x100x538x (2,5-16mm2) 2x(2,5-25mm2)
2D DXF3D STEPCS 4511.0801480A133x100x537x (2,5-16mm2) 4x(2,5-10mm2)
2D DXF3D STEPCS 4512.12514125A159x100x539x (2,5-16mm2) 3x(2,5-25mm2)
2D DXF3D STEPCS 4514.0801480A159x100x538x (2,5-16mm2) 6x(2,5-10mm2)
2D DXF3D STEPCS 4516.12514125A199x100x5313x (2,5-16mm2) 3x(2,5-25mm2)
2D DXF3D STEPCS 4519.0801480A199x100x539x (2,5-16mm2) 10x(2,5-10mm2)
2D DXF3D STEPCS 4519.12514125A229x100x5315x (2,5-16mm2) 4x(2,5-25mm2)
2D DXF3D STEPCS 4522.0801480A229x100x5310x (2,5-16mm2) 12x(2,5-10mm2)

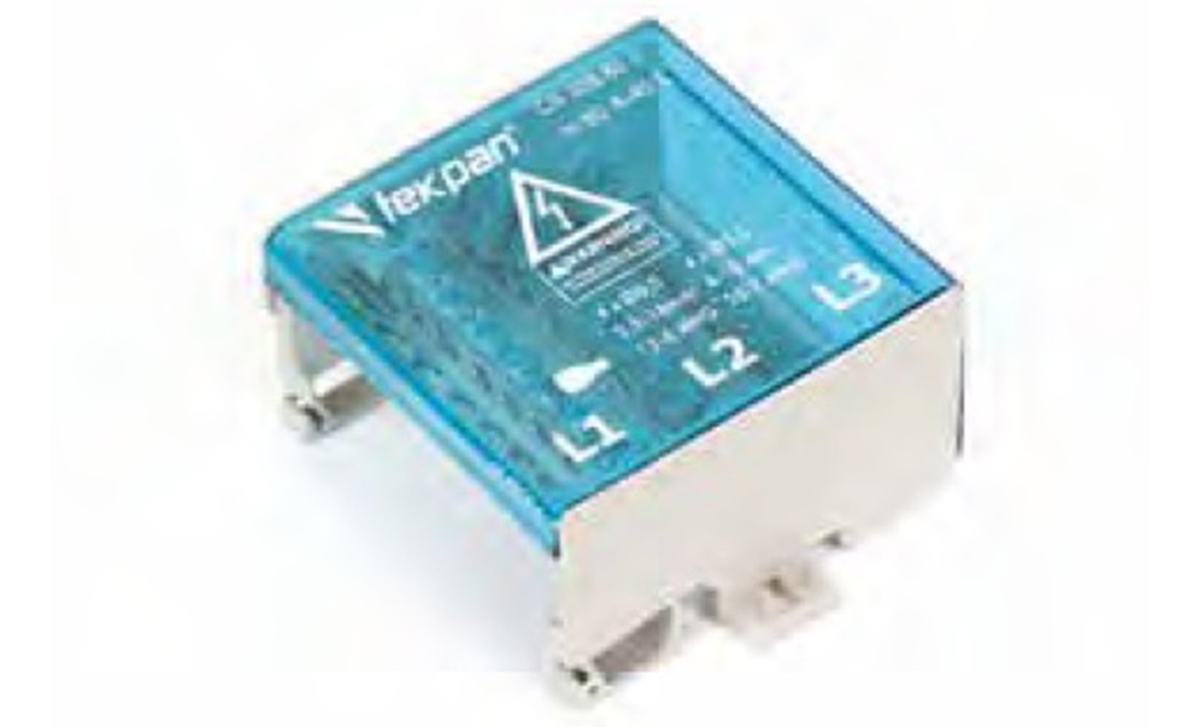

3-Pole DIN Rail Type Distribution Blocks
   Product CodePacks OfPoleCurrent(A)Size(mm)Cable Sizes
2D DXF3D STEPCS 3507.12513125A99x82,5x495x (2,5-16mm2) 2x(2,5-25mm2)
2D DXF3D STEPCS 3508.0801380A99x82,5x494x (2,5-16mm2) 4x(2,5-10mm2)
2D DXF3D STEPCS 3510.12513125A129x82,5x498x (2,5-16mm2) 2x(2,5-25mm2)
2D DXF3D STEPCS 3511.0801380A129x82,5x497x (2,5-16mm2) 4x(2,5-10mm2)
2D DXF3D STEPCS 3512.12513125A155x82,5x499x (2,5-16mm2) 3x(2,5-25mm2)
2D DXF3D STEPCS 3514.0801380A155x82,5x498x (2,5-16mm2) 6x(2,5-10mm2)
2D DXF3D STEPCS 3516.12513125A195x82,5x4913x (2,5-16mm2) 3x(2,5-25mm2)
2D DXF3D STEPCS 3519.0801380A195x82,5x499x (2,5-16mm2) 10x(2,5-10mm2)
2D DXF3D STEPCS 3519.12513125A225x82,5x4915x (2,5-16mm2) 4x(2,5-25mm2)
2D DXF3D STEPCS 3522.0801380A225x82,5x4910x (2,5-16mm2) 12x(2,5-10mm2)
