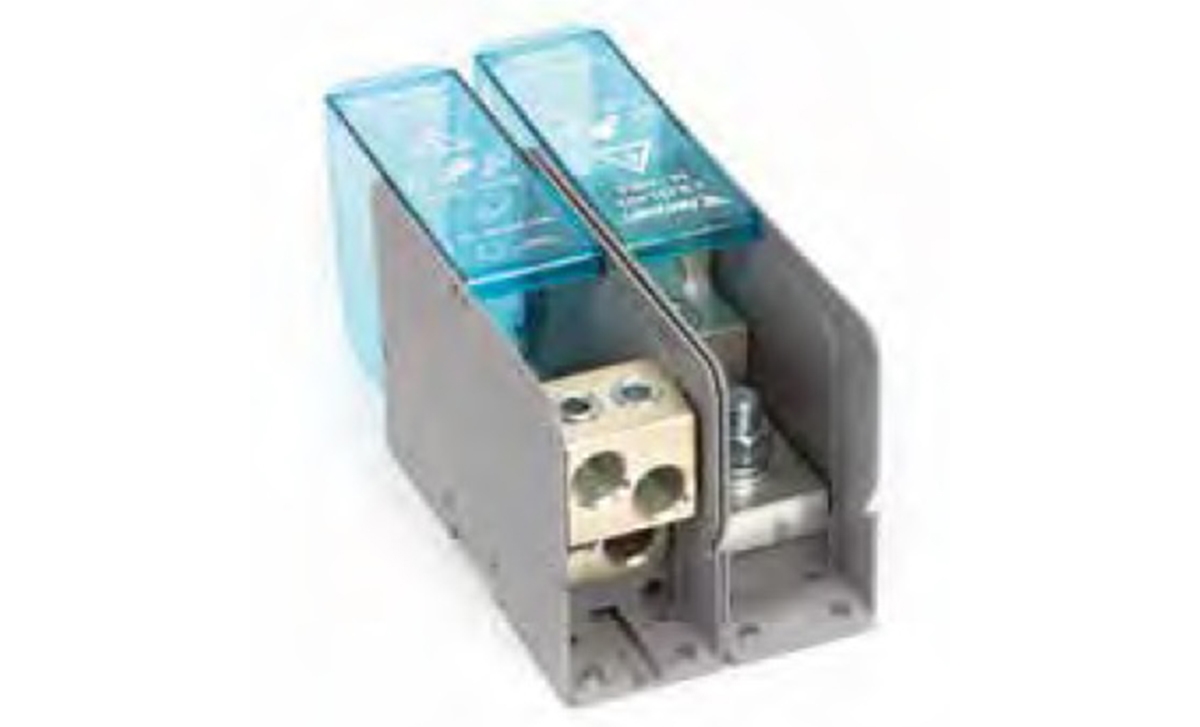

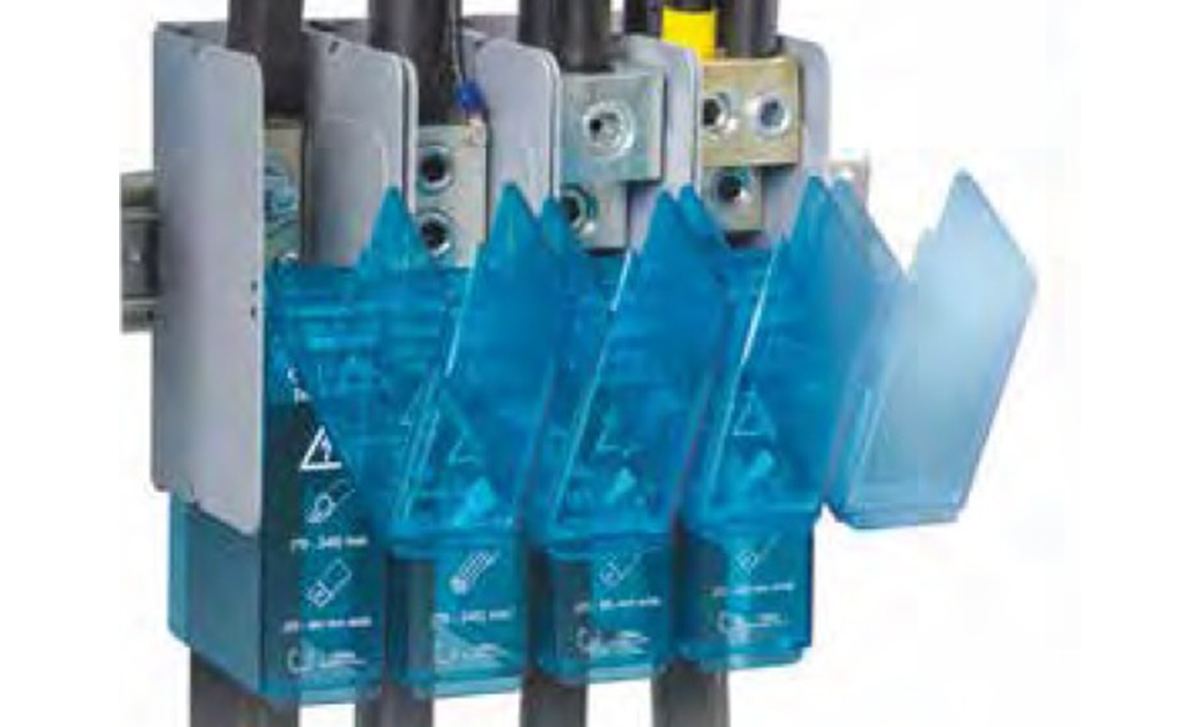

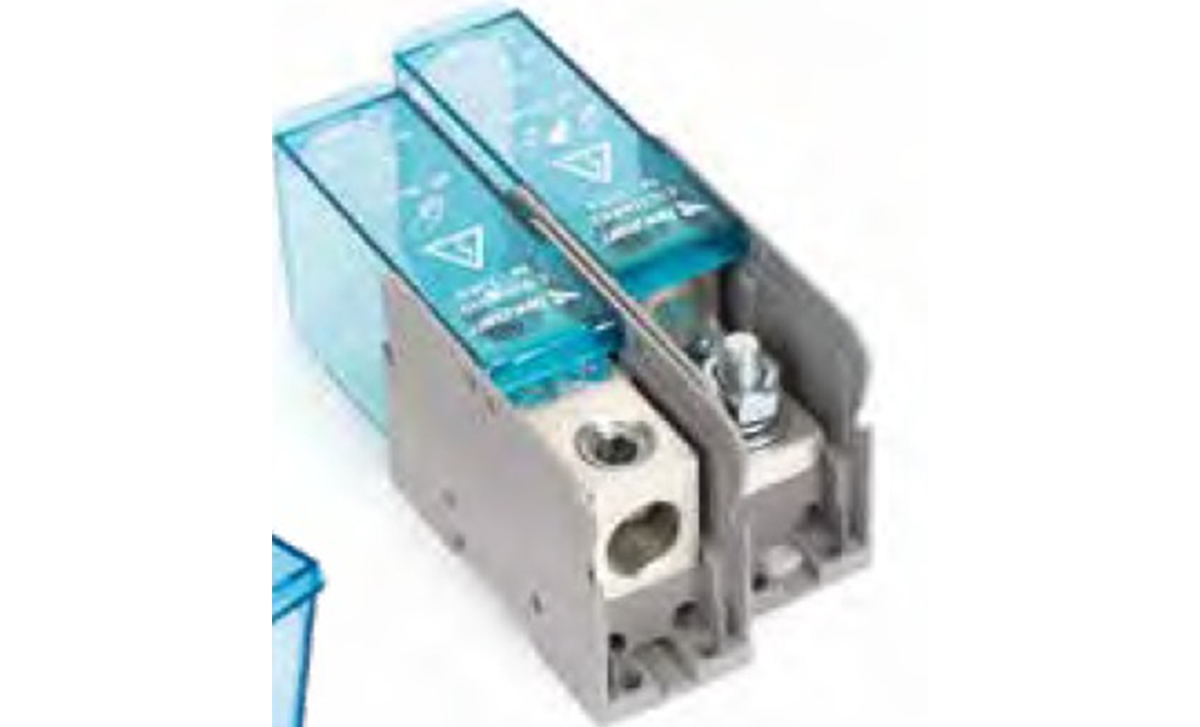

315A Single-Pole Power and Connection Terminal
 | | | | | Product Code | Packs Of | Pole | Current(A) | Size(mm) | Input | Output |
|---|
| 2D DXF | 3D STEP | CS 111.300 | 1 | 1 | 315A | 36x201x61 | Pabuç(35-95mm2) Bakır (20-25mm) | Pabuç(35-95mm2) Bakır (20-25mm) | | 2D DXF | 3D STEP | CS 111.301 | 1 | 1 | 315A | 36x201x61 | Yüksük(35-95mm2) | Yüksük(35-95mm2) | | 2D DXF | 3D STEP | CS 111.302 | 1 | 1 | 315A | 36x201x61 | Pabuç(35-95mm2) Bakır (20-25mm) | Yüksük(35-95mm2) |
|
400A Single-Pole Power and Connection Terminal
 | | | | | Product Code | Packs Of | Pole | Current(A) | Size(mm) | Input | Output |
|---|
| 2D DXF | 3D STEP | CS 111.400 | 1 | 1 | 400A | 41x215x84 | Pabuç(50-120mm2) Bakır (20-32mm) | Pabuç(50-120mm2) Bakır (20-32mm) | | 2D DXF | 3D STEP | CS 111.401 | 1 | 1 | 400A | 41x215x84 | Yüksük(70-185mm2) | Yüksük(70-185mm2) | | 2D DXF | 3D STEP | CS 111.402 | 1 | 1 | 400A | 41x215x84 | Pabuç(50-120mm2) Bakır (20-32mm) | Yüksük 2x(70-185mm2) | | 2D DXF | 3D STEP | CS 111.403 | 1 | 1 | 400A | 41x215x84 | Pabuç(50-120mm2) Bakır (20-32mm) | Yüksük 4x(35-70mm2) |
|
630A Single-Pole Power and Connection Terminal
 | | | | | Product Code | Packs Of | Pole | Current(A) | Size(mm) | Input | Output |
|---|
| 2D DXF | 3D STEP | CS 111.600 | 1 | 1 | 630A | 49x260x99 | Pabuç(70-240mm2) Bakır (25-40mm) | Pabuç(70-240mm2) Bakır (25-40mm) | | 2D DXF | 3D STEP | CS 111.601 | 1 | 1 | 630A | 49x260x99 | Yüksük(70-240mm2) | Yüksük(70-240mm2) | | 2D DXF | 3D STEP | CS 111.602 | 1 | 1 | 630A | 49x260x99 | Pabuç(70-240mm2) Bakır (25-40mm) | Yüksük 2x(70-240mm2) | | 2D DXF | 3D STEP | CS 111.603 | 1 | 1 | 630A | 49x260x99 | Pabuç(70-240mm2) Bakır (25-40mm) | Yüksük 4x(70-120mm2) |
|
400A Single-Pole Power and Connection Terminal2
 | | | | | Product Code | Packs Of | Pole | Current(A) | Size(mm) | Input | Output |
|---|
| 2D DXF | 3D STEP | CS 111.450 | 1 | 1 | 400A | 35x84x63 | Yüksük(35-150mm2) | Yüksük(35-150mm2) |
|
