Compact Distribution Blocks, 4 Poles

  • Suitable for 4-pole cable connections and distribution
  • Can be mounted on DIN rails or mounting plates.
  • Connection is made using cable ferrules.
  • Available in 100A, 160A, and 250A power ratings.
  • Compliant with IEC 60947-7-1, IEC 60947-1, and IEC 61439-1 standards.
  • Operational Voltage (Ue): 415V AC
  • Insulation Voltage (Ui): 690V AC / 690V DC
  • Impulse Voltage (Uimp): 8kV
  • Short-Circuit Withstand (Icw): 100A → 3kA / 160A → 8kA / 250A → 8kA
  • Peak Short-Circuit Current (Ipk): 100A → 30kA / 160A → 22kA / 250A → 42kA
  • Flame retardant according to UL 94 standard, V0 rating.
  • Halogen-free.

Material:
Conductors:
Tin-plated Brass

Plastic Components:
Glass Fiber Reinforced Polyamide (PA 6.6)

CE EAC ROHS IEC

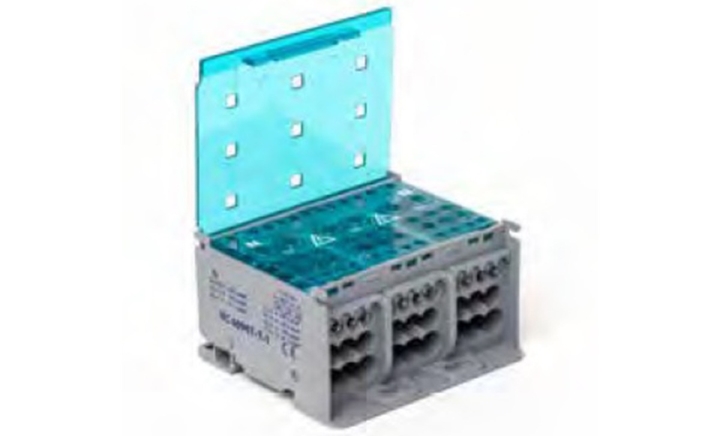

4-Pole Combined Compact Distribution Block
   Product CodePacks OfPoleCurrent(A)Size(mm)L1/L2/L3 ConnectionN Connection
2D DXF3D STEPCS 4509.25014250A121x85x504 x 2,5-10mm2 3 x 4-25mm2 2 x 6-35mm22 x 2,5-10mm2 6 x 2,5-16mm2 2 x 6-35mm2
2D DXF3D STEPCS 4510.10014100A90x85x503 x 4-35mm2 3 x 2,5-10mm2 4 x 2,5-6mm22 x 2,5-25mm2 4 x 2,5-10mm2 5 x 2,5-6mm2
2D DXF3D STEPCS 4512.16014160A90x85x502 x 6-35mm2 3 x 2,5-16mm2 2 x 2,5-6mm22 x 2,5-25mm2 4 x 2,5-10mm2 5 x 2,5-6mm2

Tekpan product technical documents, brochures and catalogs, support line
