Neutral and Ground Bars

Product Descriptions Dimensions / Order Codes

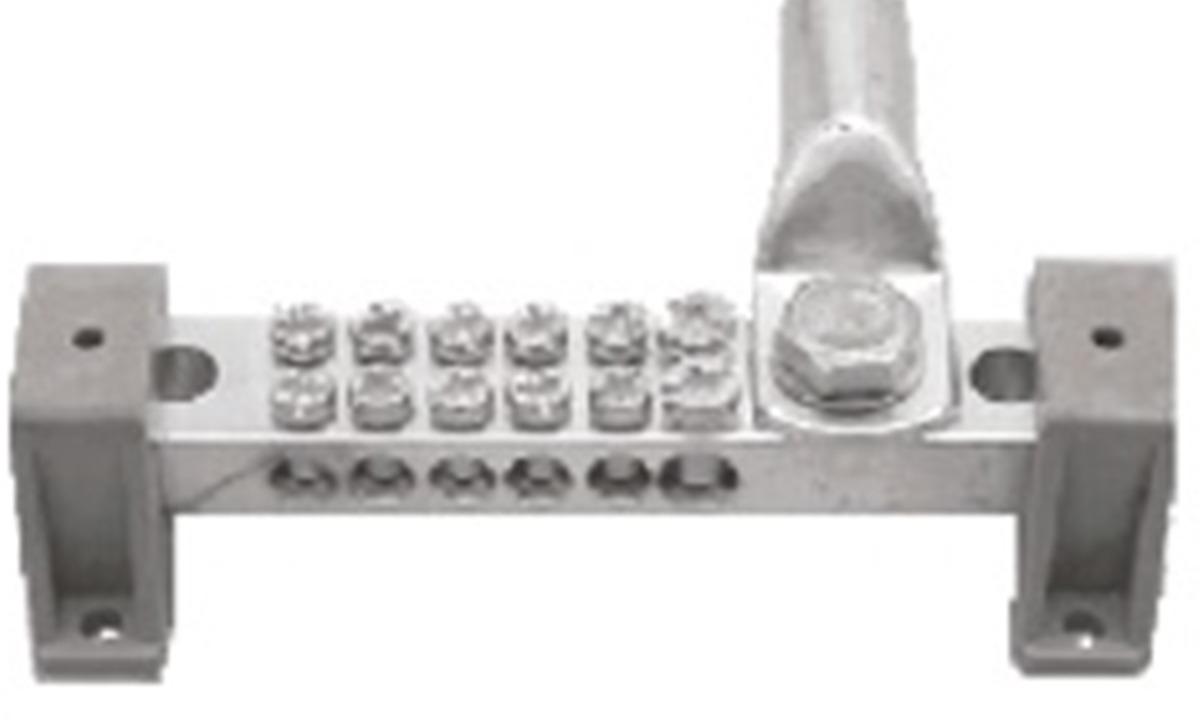

Bars designed to combine Neutral (N) and Protective Earth (PE) connections in a single terminal block.
Neutral bars are suitable for DIN rail or mounting plate installation.
Protective Earth (PE) bars are suitable for direct mounting onto the mounting plate.
Incoming and outgoing connections are made using cable lugs (ferrules).
Available in 63A – 80A – 125A – 160A current or cross-section options.
Compliant with IEC 60947-7-1, IEC 60947-1, IEC 61439-1 standards.
Operational Voltage (Ue): 415V AC
Insulation Voltage (Ui): 690V AC / 690V DC
Flame-retardant rating: UL 94 V0
Halogen-free

Materials:
Active Conductors:
Tin-plated brass

Plastic Components:
Glass fiber reinforced polyamide (PA 6.6)

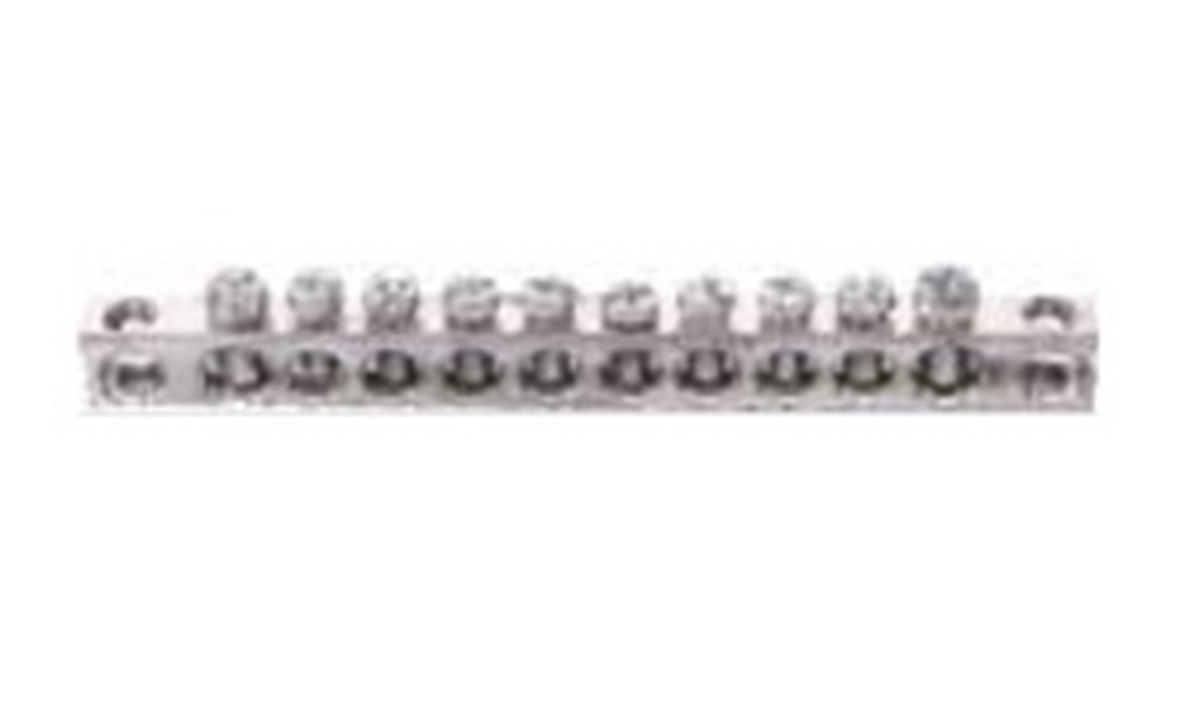

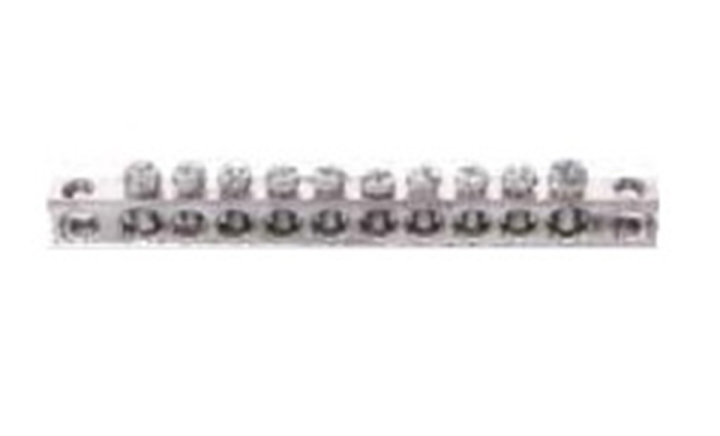

Neutral Bars (Screw-Mounted)

		Product Code	Packs Of	Pole	Current(A)	Size(mm)	Input Connection	Output Connection
2D DXF	3D STEP	CS 1054.160.N	1	1	160A	685	10 x 35mm2	54 x 16mm2
2D DXF	3D STEP	CS 106.125.N	1	1	125A	93	1 x 25mm2	1 x 16mm2 5 x 10mm2
2D DXF	3D STEP	CS 106.160.N	1	1	160A	113	1 x 35mm2	1 x 25mm2 6 x 16mm2
2D DXF	3D STEP	CS 107.063.N	1	1	63A	93	1 x 10mm2	7 x 6mm2
2D DXF	3D STEP	CS 107.080.N	1	1	80A	93	1 x 16mm2	1 x 10mm2 6 x 6mm2
2D DXF	3D STEP	CS 208.125.N	1	1	125A	127	1 x 25mm2	6 x 16mm2 3 x 10mm2
2D DXF	3D STEP	CS 210.080.N	1	1	80A	127	2 x 16mm2	2 x 10mm2 8 x 6mm2
2D DXF	3D STEP	CS 211.063.N	1	1	63A	127	2 x 10mm2	11 x 6mm2
2D DXF	3D STEP	CS 211.125.N	1	1	125A	150	2 x 25mm2	11 x 16mm2
2D DXF	3D STEP	CS 214.080.N	1	1	80A	164	2 x 16mm2	14 x 10mm2
2D DXF	3D STEP	CS 214.125.N	1	1	125A	164	2 x 25mm2	14 x 16mm2
2D DXF	3D STEP	CS 215.063.N	1	1	63A	164	2 x 10mm2	15 x 6mm2
2D DXF	3D STEP	CS 218.125.N	1	1	125A	230	2 x 25mm2	18 x 16mm2
2D DXF	3D STEP	CS 408.160.N	1	1	160A	164	2 x 35mm2	2 x 25mm2 8 x 16mm2
2D DXF	3D STEP	CS 411.160.N	1	1	160A	230	2 x 35mm22 x 35mm2	3 x 25mm2 10 x 16mm2
2D DXF	3D STEP	CS 420.080.N	1	1	80A	230	4 x 16mm2	20 x 10mm2
2D DXF	3D STEP	CS 426.063.N	1	1	63A	230	4 x 10mm2	26 x 6mm2
2D DXF	3D STEP	CS 614.160.N	1	1	160A	249	2 x 35mm2	6 x 25mm2 12 x 16mm2
2D DXF	3D STEP	CS 636.160.N	1	1	160A	458	6 x 35mm2	36 x 16mm2

Neutral Bars (Screw-Mounted)

		Product Code	Packs Of	Pole	Current(A)	Size(mm)	Input Connection	Output Connection
2D DXF	3D STEP	CS 1210.250.N	1	1	250A	98	1 x 70mm2 2 x 25mm2	10 x 16mm2
2D DXF	3D STEP	CS 1222.250.N	1	1	250A	147	1 x 70mm2 2 x 25mm2	22 x 16mm2
2D DXF	3D STEP	CS 1234.250.N	1	1	250A	196	1 x 70mm2 2 x 25mm2	34 x 16mm2

Earth (PE) Bars (Screw-Mounted)

		Product Code	Packs Of	Pole	Current(A)	Size(mm)	Input Connection	Output Connection
2D DXF	3D STEP	CS 104.050.T	1	1	63A	45	1 x 10mm2	4 x 6mm2
2D DXF	3D STEP	CS 104.125.T	1	1	125A	60	1 x 25mm2	1 x 16mm2 3 x 10mm2
2D DXF	3D STEP	CS 104.160.T	1	1	160A	84	1 x 35mm2	1 x 25mm2 4 x 16mm2
2D DXF	3D STEP	CS 105.063.T	1	1	63A	58	1 x 10mm2	5 x 6mm2
2D DXF	3D STEP	CS 105.080.T	1	1	80A	60	1 x 16mm2	1 x 10mm2 4 x 6mm2
2D DXF	3D STEP	CS 1054.0160.T	1	1	160A	650	10 x 35mm2	54 x 16mm2
2D DXF	3D STEP	CS 206.125.T	1	1	125A	90	1 x 25mm2	4 x 16mm2 3 x 10mm2
2D DXF	3D STEP	CS 208.080.T	1	1	80A	92	2 x 16mm2	2 x 10mm2 6 x 6mm2
2D DXF	3D STEP	CS 209.063.T	1	1	63A	85	2 x 10mm2	9 x 6mm2
2D DXF	3D STEP	CS 209.125.T	1	1	125A	129	2 x 25mm2	9 x 16mm2
2D DXF	3D STEP	CS 210.063.T	1	1	63A	92	2 x 10mm2	10 x 6mm2
2D DXF	3D STEP	CS 212.080.T	1	1	80A	129	2 x 16mm2	12 x 10mm2
2D DXF	3D STEP	CS 212.125.T	1	1	125A	150	2 x 25mm2	12 x 16mm2
2D DXF	3D STEP	CS 213.063.T	1	1	63A	129	2 x 10mm2	13 x 6mm2
2D DXF	3D STEP	CS 216.0125.T	1	1	125A	195	2 x 25mm2	16 x 16mm2
2D DXF	3D STEP	CS 406.160.T	1	1	160A	129	2 x 35mm2	2 x 25mm2 6 x 16mm2
2D DXF	3D STEP	CS 406.250.T	1	1	250A	129	1 x 50mm2	2 x 35mm2 2 x 25mm2 5 x 16mm2
2D DXF	3D STEP	CS 409.160.T	1	1	160A	159	2 x 35mm2	3 x 25mm2 8 x 16mm2
2D DXF	3D STEP	CS 409.250.T	1	1	250A	168	1 x 50mm2	2 x 35mm2 4 x 25mm2 6 x 16mm2
2D DXF	3D STEP	CS 418.080.T	1	1	80A	195	4 x 16mm2	18 x 10mm2
2D DXF	3D STEP	CS 424.0063.T	1	1	63A	195	4 x 10mm2	14 x 6mm2
2D DXF	3D STEP	CS 612.160.T	1	1	160A	212	2 x 35mm2	6 x 25mm2 10 x 16mm2
2D DXF	3D STEP	CS 612.250.T	1	1	250A	212	1 x 50mm2	3 x 35mm2 4 x 25mm2 10 x 16mm2
2D DXF	3D STEP	CS 636.160.T	1	1	160A	423	6 x 35mm2	36 x 16mm2
