Our Products

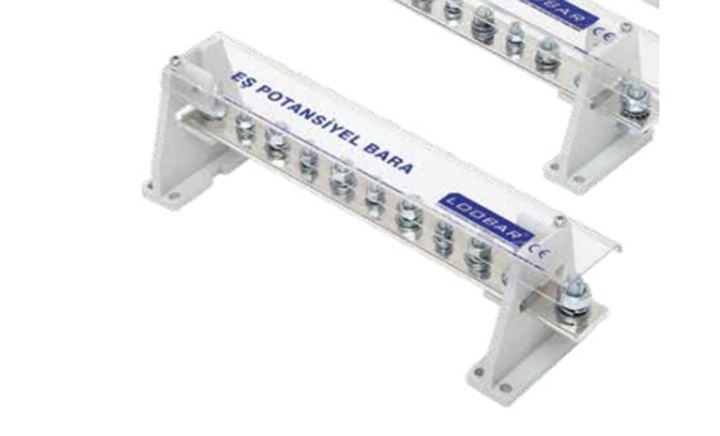

• Used in TT and IT earthing systems for chassis grounding of devices in installations.
• Mounted to the base using screws.
• Input and output connections are made with cable lugs.
• Manufactured in copper busbar cross-sections of 30×3 mm, 30×5 mm, 40×5 mm, and 40×10 mm.
• Available in copper busbar lengths of 250 mm, 480 mm, and 700 mm.
• Complies with IEC 60947-7-1, IEC 60947-1, IEC 61439-1 standards.
• Operational Voltage (Ue): 415V AC
• Insulation Voltage (Ui): 690V AC / 690V DC
• Rated according to UL 94 V0 flammability class.
• Halogen-free.

Materials:
Active Conductors:
Tin-plated Copper (Cu)

Plastic Components:
Glass Fiber Reinforced Polyamide (PA 6.6)
