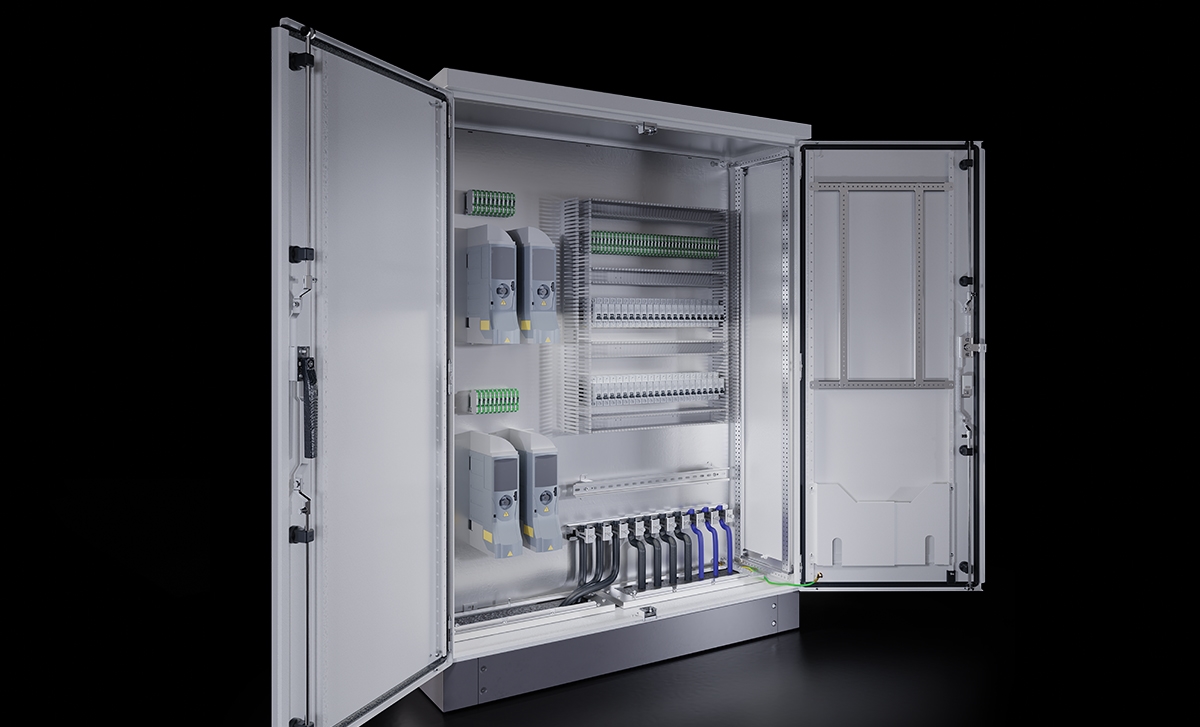

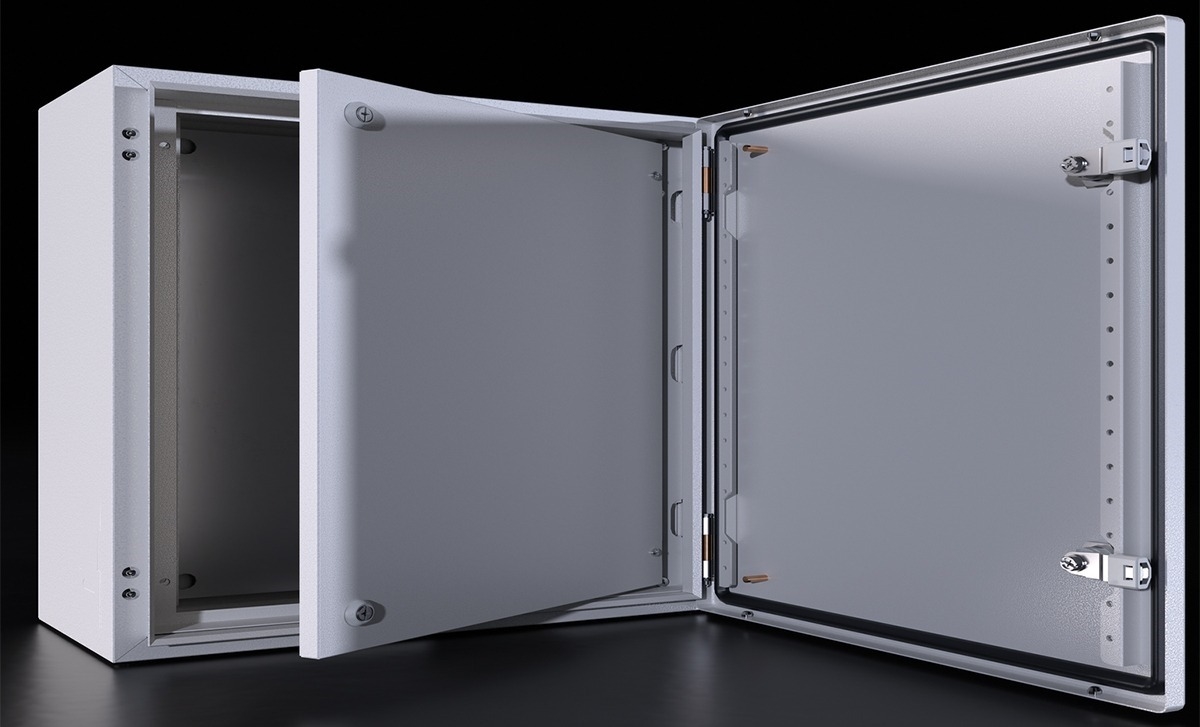

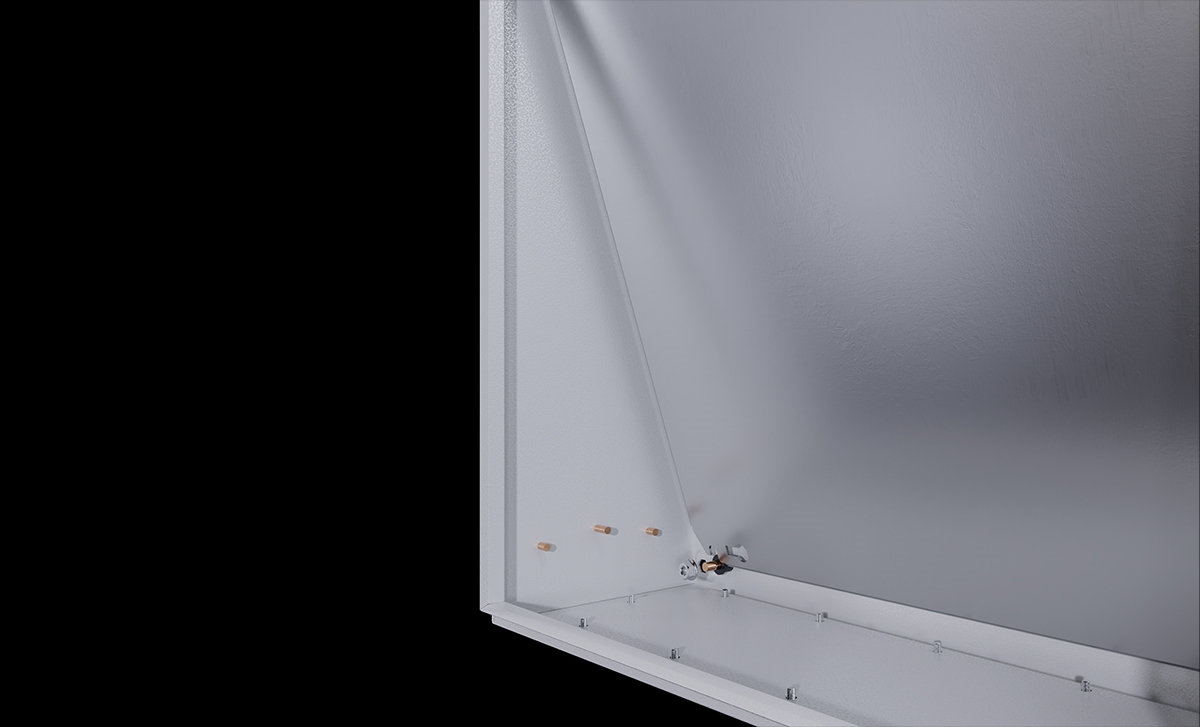

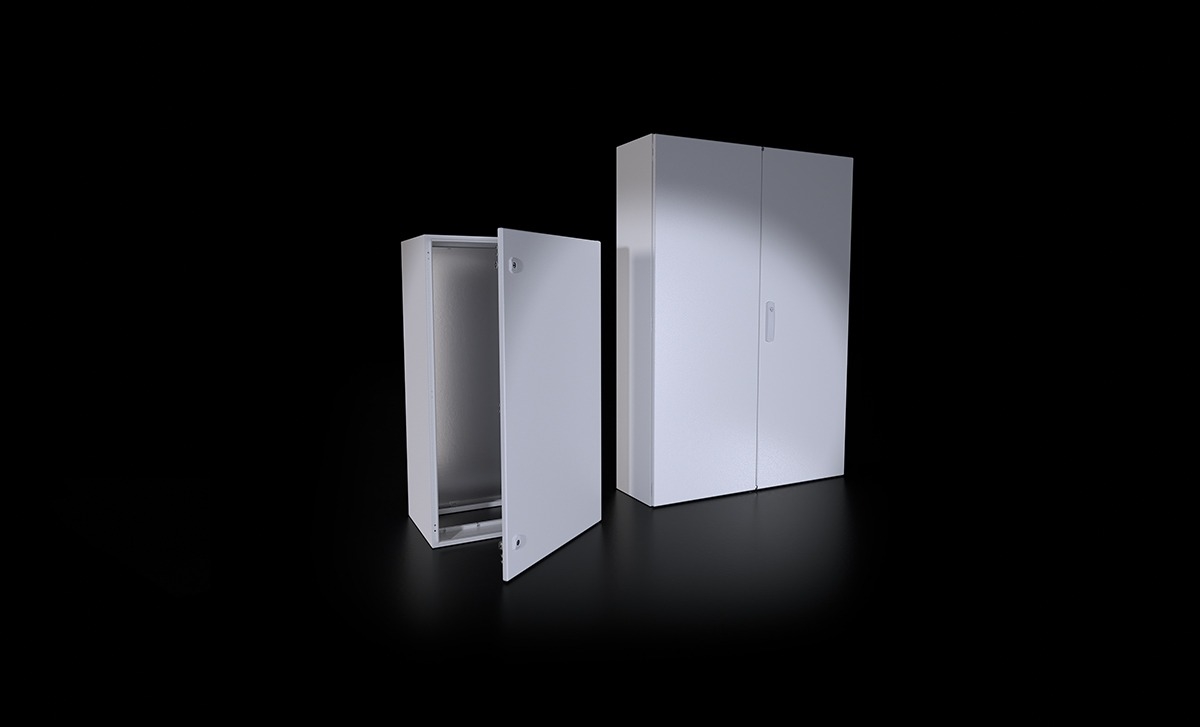

DM-L Wall Mounted Enclosure

  • Wall-Mounted / Freestanding with Plinth – Indoor / Outdoor Option (a)
  • 130° right-left opening door, quarter-turn single or swing-Handled  double-bit lock system, with mounting plate
  • Standards Compliance: IEC 62208 and UL 50E
  • Ingress Protection (IEC EN 60529 / NEMA): Single Door: IP66 / NEMA 1, 3R, 4, 12 / Double Door: IP54 / NEMA 1, 12
  • Corrosion Resistance: C3-M according to EN ISO 12944-2
  • Impact Protection: IK10 according to IEC EN 60529

Materials:
Enclosure, Door: DC-01 Sheet Steel
Mounting Plate: DX51 Galvanized Sheet Steel

Surface Finish:
Enclosure, Door: Nano coating over RAL 7035 with textured powder coating

Supply Includes:
Enclosure, Door (5mm double-bit lock), Mounting Plate, Cable Gland Plate

Options:
Wall brackets, grounding cables, and other accessories

(a): For outdoor applications, an Outdoor Canopy is required. Installation locations must comply with C3-M corrosion level according to EN ISO 12944-2

Dekra UL IEC
DM-L Duvar Tipi Pano DM-L Duvar Tipi Pano DM-L Duvar Tipi Pano DM-L Duvar Tipi Pano

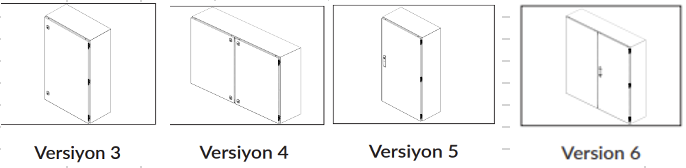

   Product CodeWidth(W)Heigth(H)Depth(D)VersionDoor
2D DXF3D STEP241.123100012003006Couple
2D DXF3D STEP241.130100010003004Couple
2D DXF3D STEP241.143100014003006Couple
2D DXF3D STEP246.12460012004005Single
2D DXF3D STEP246.14060010004003Single
2D DXF3D STEP248.12480012004005Single
2D DXF3D STEP248.14080010004003Single

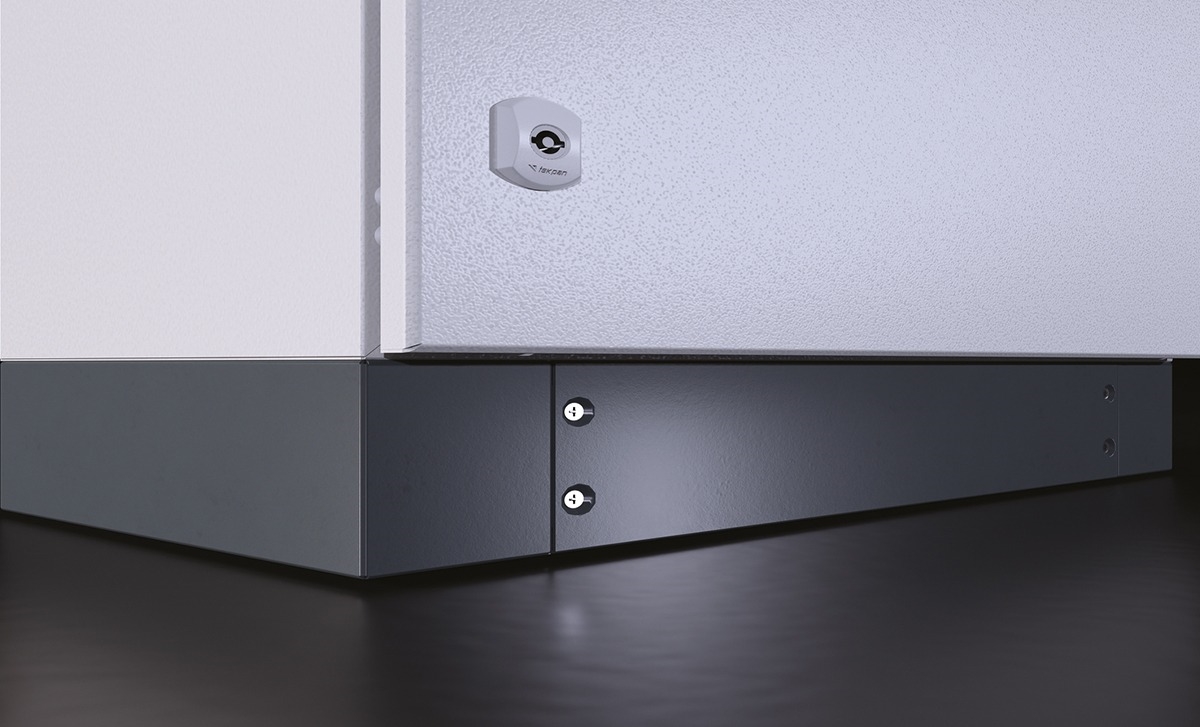

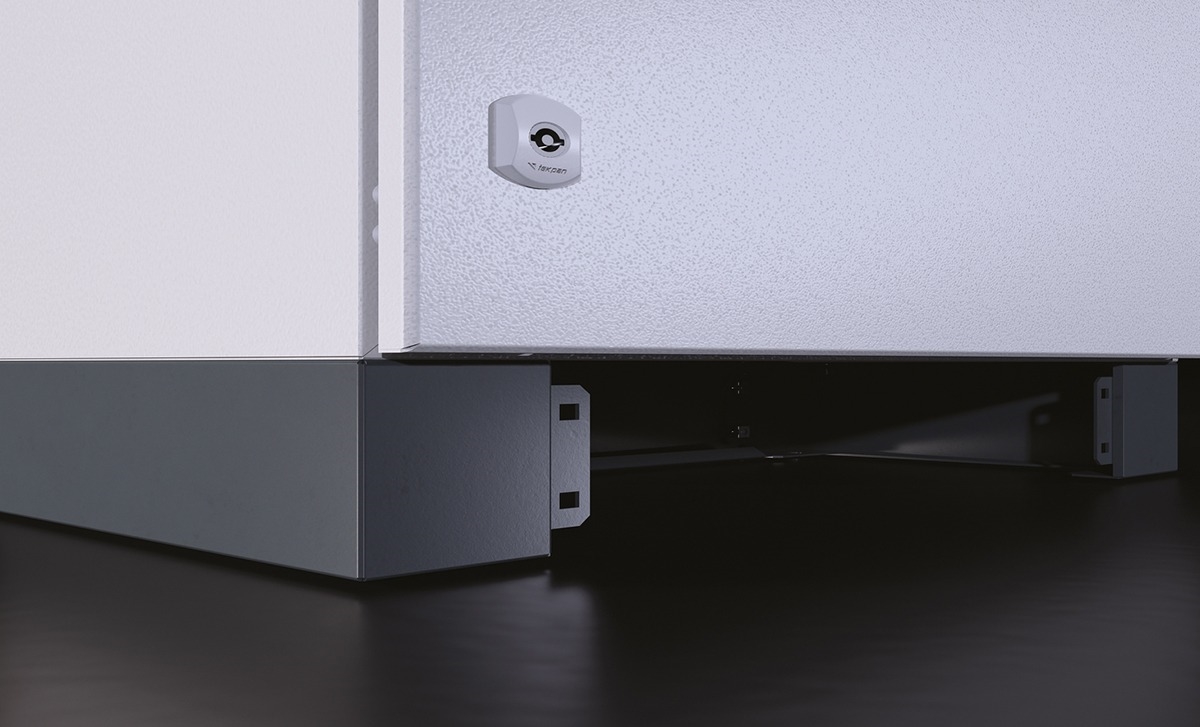

Plinth Sides
   Product CodeDepth(D)Plinth Heigth
2D DXF3D STEP973.31030000000100
2D DXF3D STEP973.320300200
2D DXF3D STEP973.410400100
2D DXF3D STEP973.420400200
Plinth Front-Rear Cover
   Product CodeWidth(W)
2D DXF3D STEP709.1001000
2D DXF3D STEP709.1201200
2D DXF3D STEP709.150500
2D DXF3D STEP709.160600
2D DXF3D STEP709.180800

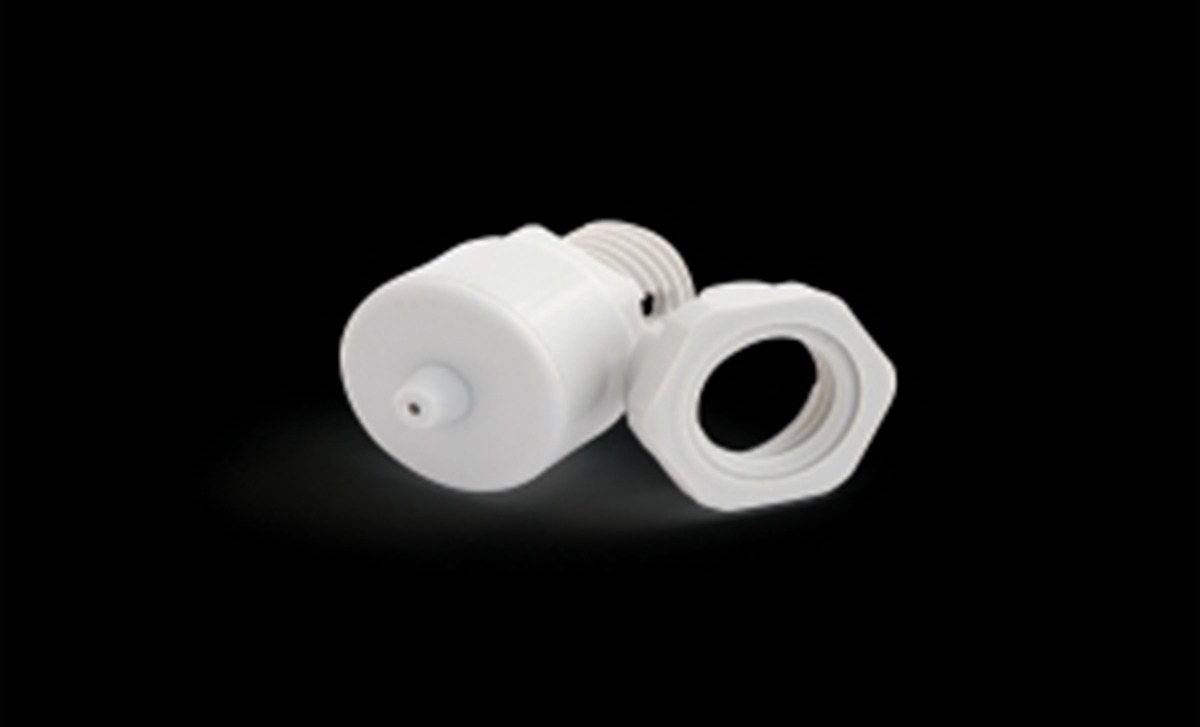

Drain Plug
   Product Code
2D DXF3D STEP973.500

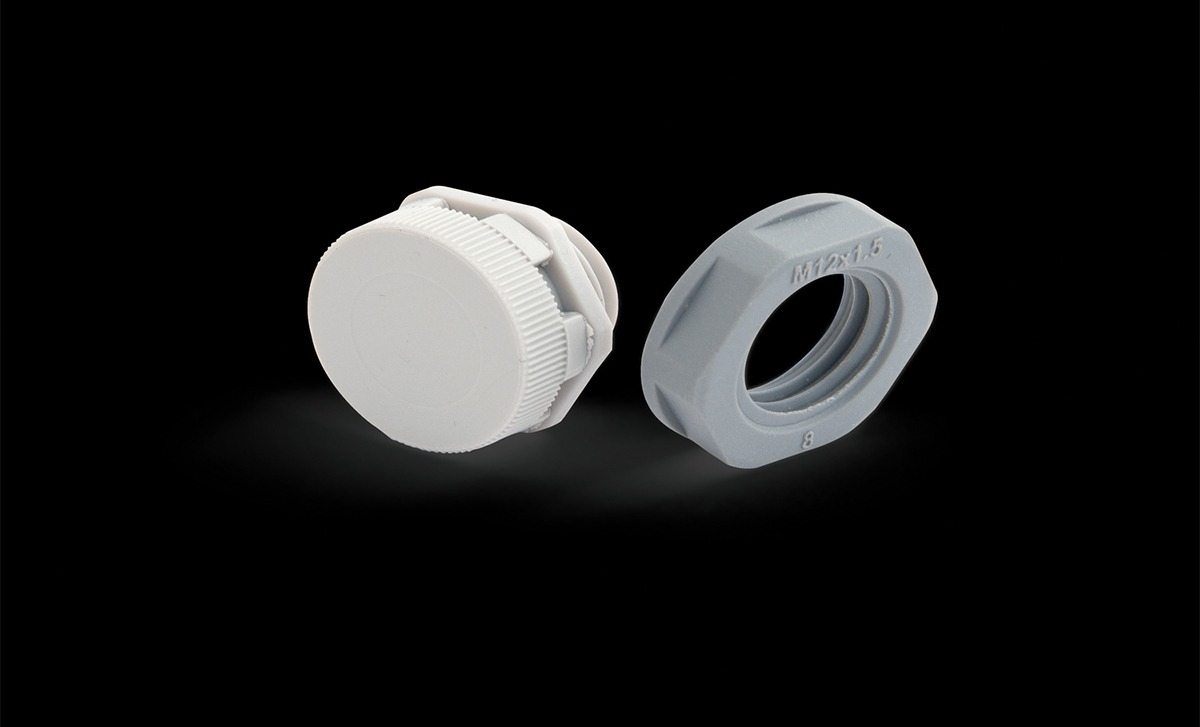

Ventilation Plug
   Product Code
2D DXF3D STEP973.501

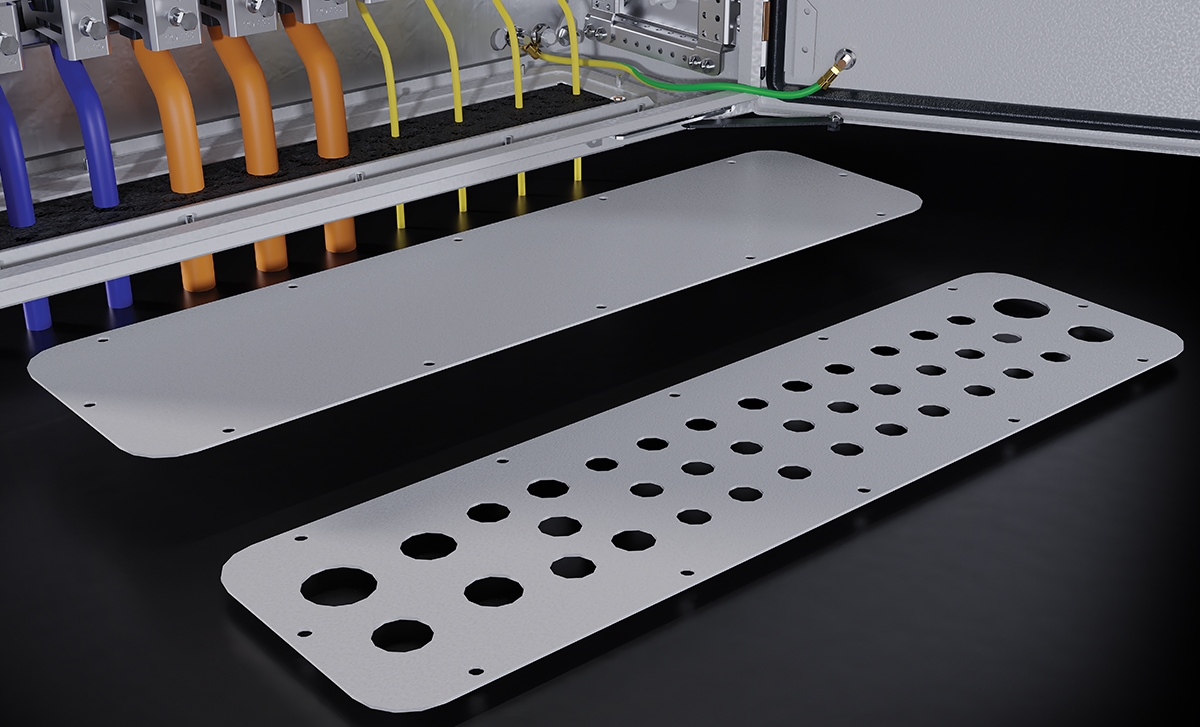

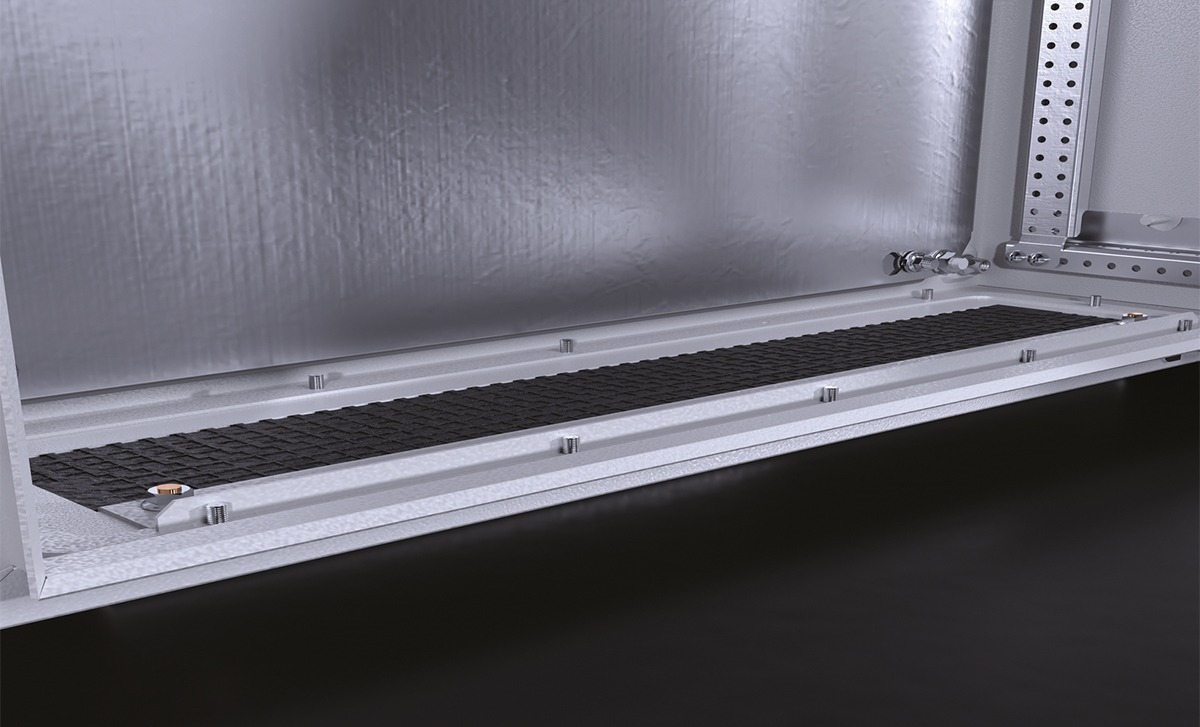

Gland Plate with Foam Entry
   Product CodeWidth(W)Depth(D)
2D DXF3D STEP973.007300210
2D DXF3D STEP973.008400210
2D DXF3D STEP973.008400260
2D DXF3D STEP973.008800260
2D DXF3D STEP973.008800210
2D DXF3D STEP973.009800300
2D DXF3D STEP973.009800400
2D DXF3D STEP973.009400300
2D DXF3D STEP973.010500210
2D DXF3D STEP973.010500260
2D DXF3D STEP973.011500300
2D DXF3D STEP973.0111000300
2D DXF3D STEP973.0111000400
2D DXF3D STEP973.012600210
2D DXF3D STEP973.012600260
2D DXF3D STEP973.013600300
2D DXF3D STEP973.013600400
2D DXF3D STEP973.0131200300
2D DXF3D STEP973.0131200400

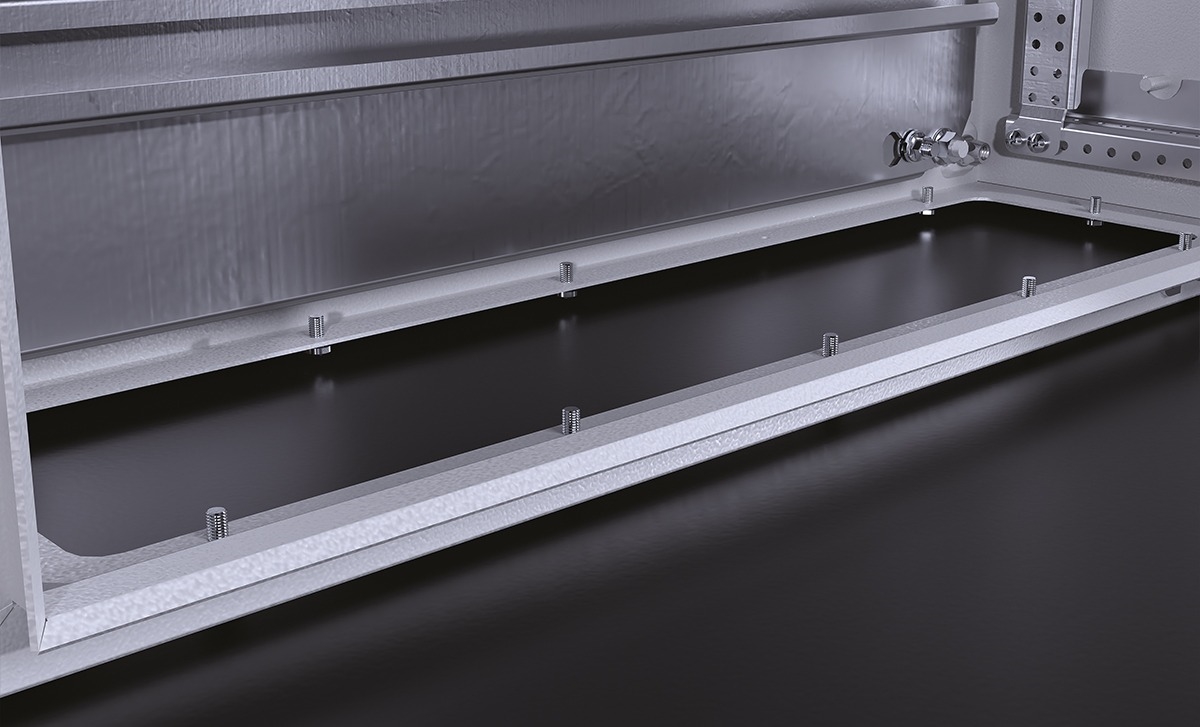

Cable Fixing Rail
   Product CodeWidth(W)Rail Size mm
2D DXF3D STEP973.940400317
2D DXF3D STEP973.950500417
2D DXF3D STEP973.960600517
2D DXF3D STEP973.980800717

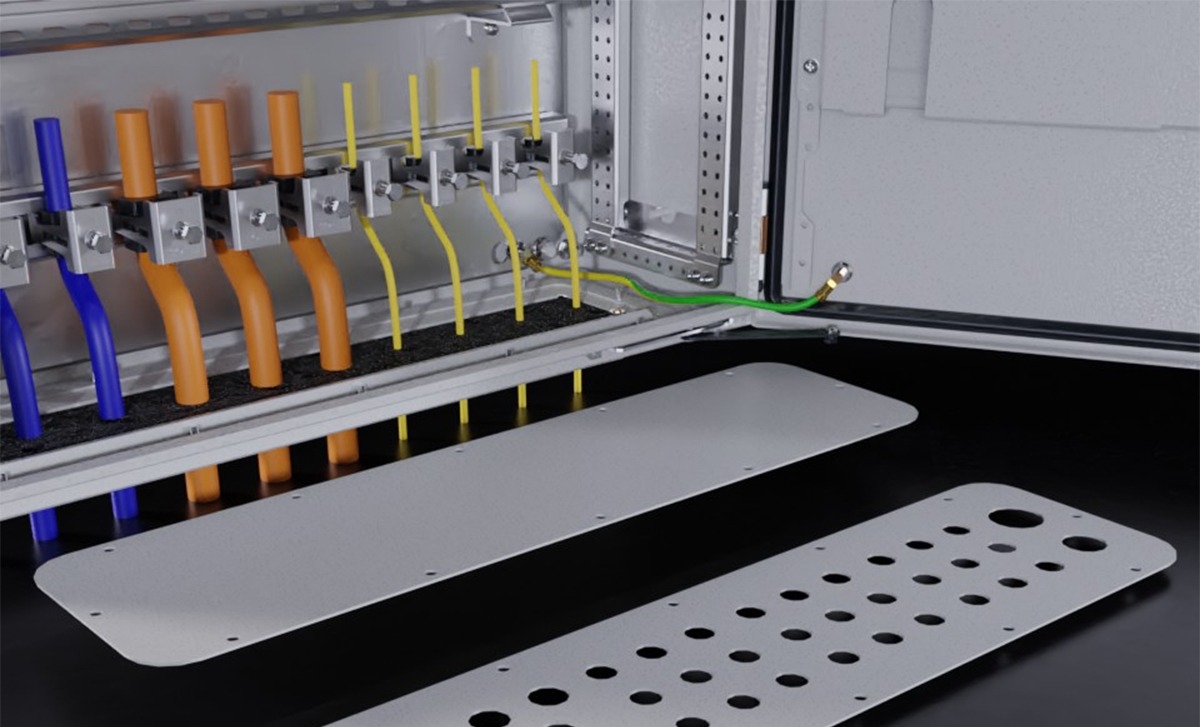

Cable Clamp
   Product CodeCable DiameterQuantity
2D DXF3D STEP998.4008 - 1430
2D DXF3D STEP998.60014 - 2020

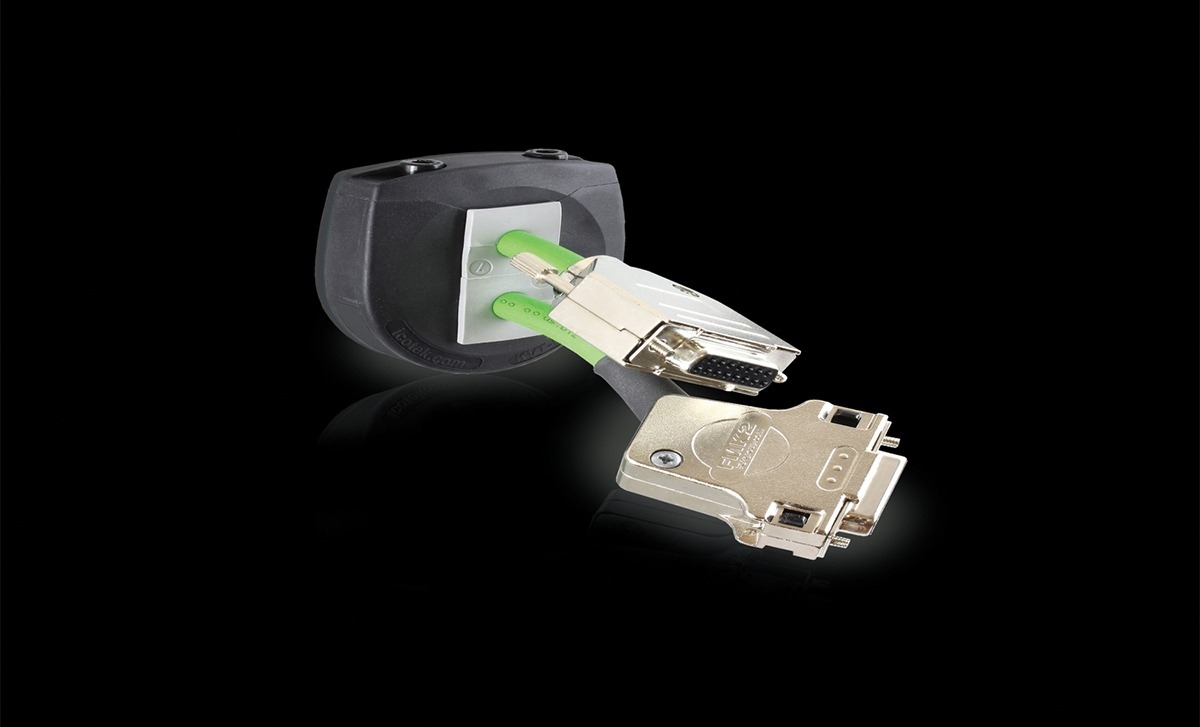

Cable Entry System with Socket
Click here for more information

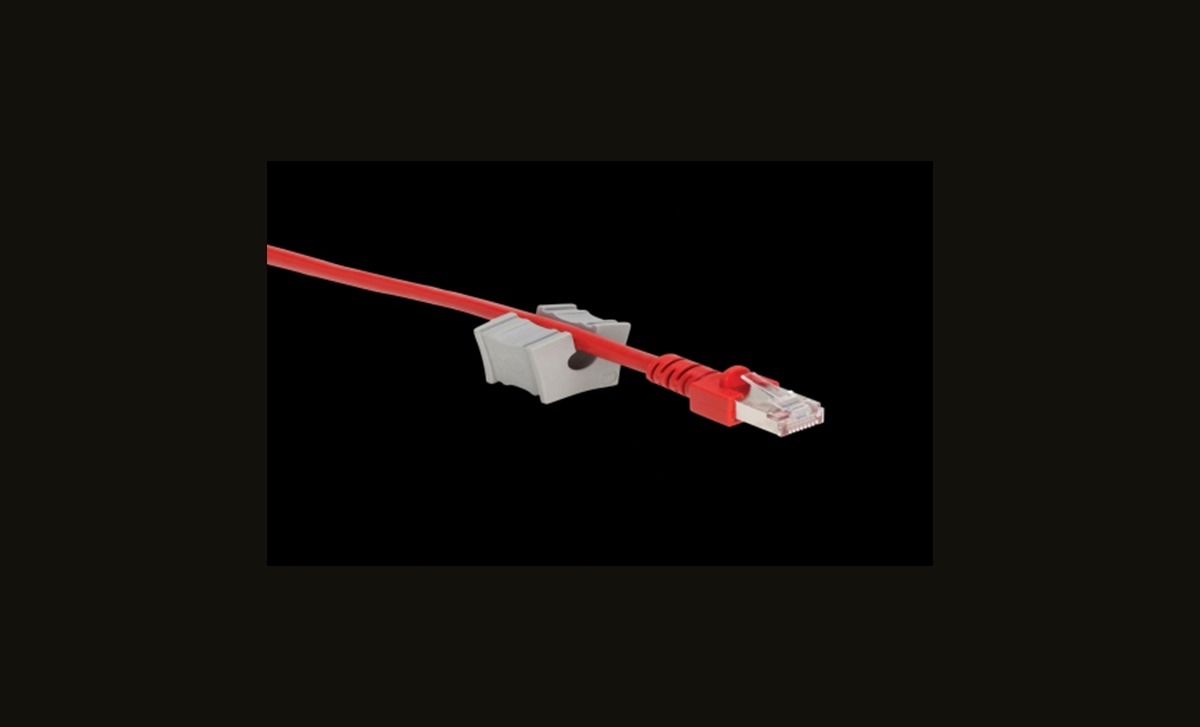

Cable Inserts
Click here for more information

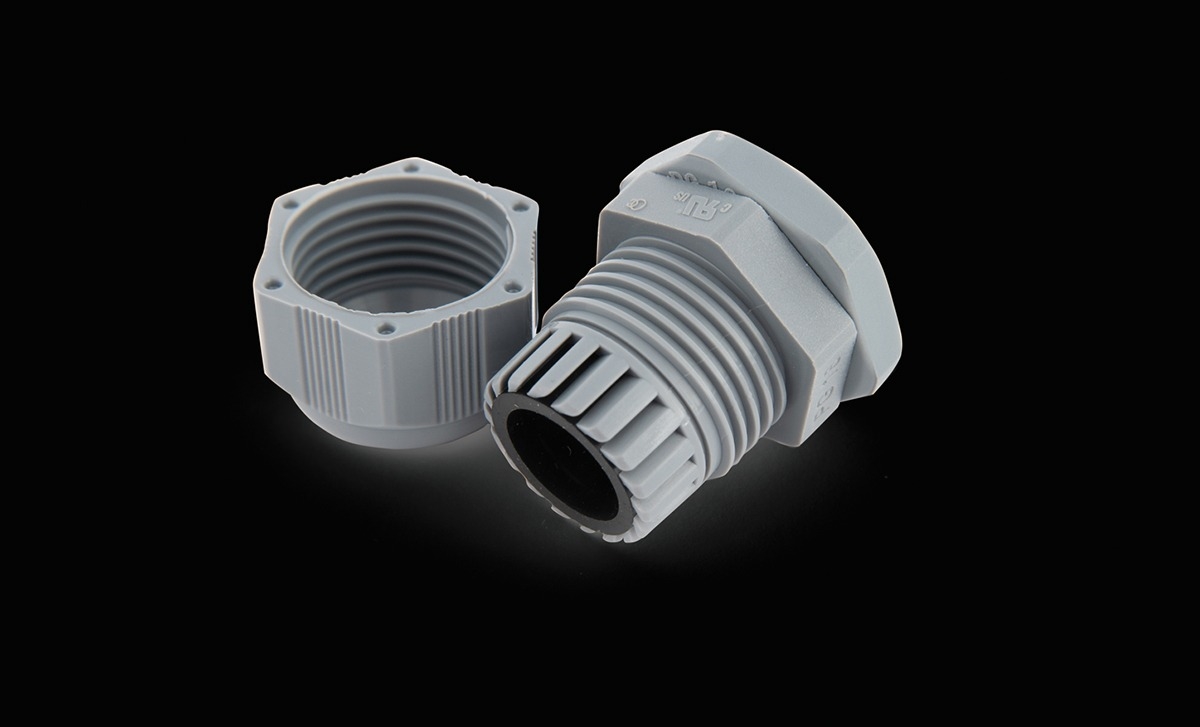

Polyamide Cable Glands
Click here for more information

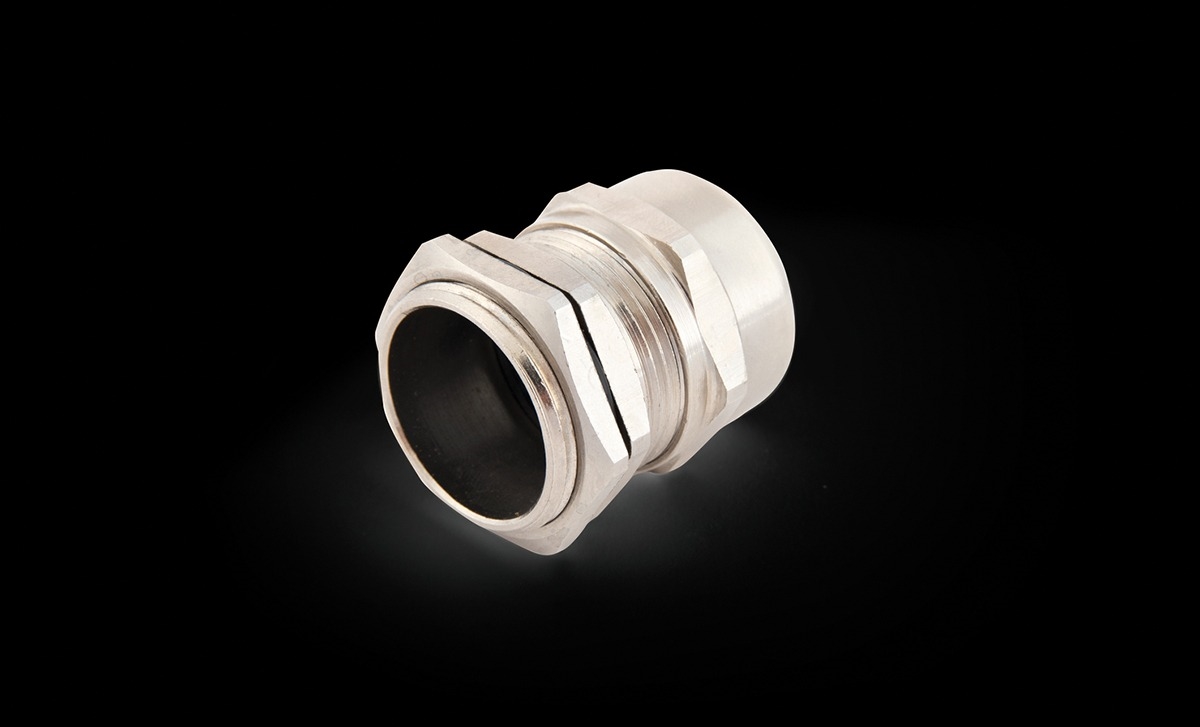

Brass Cable Glands
Click here for more information

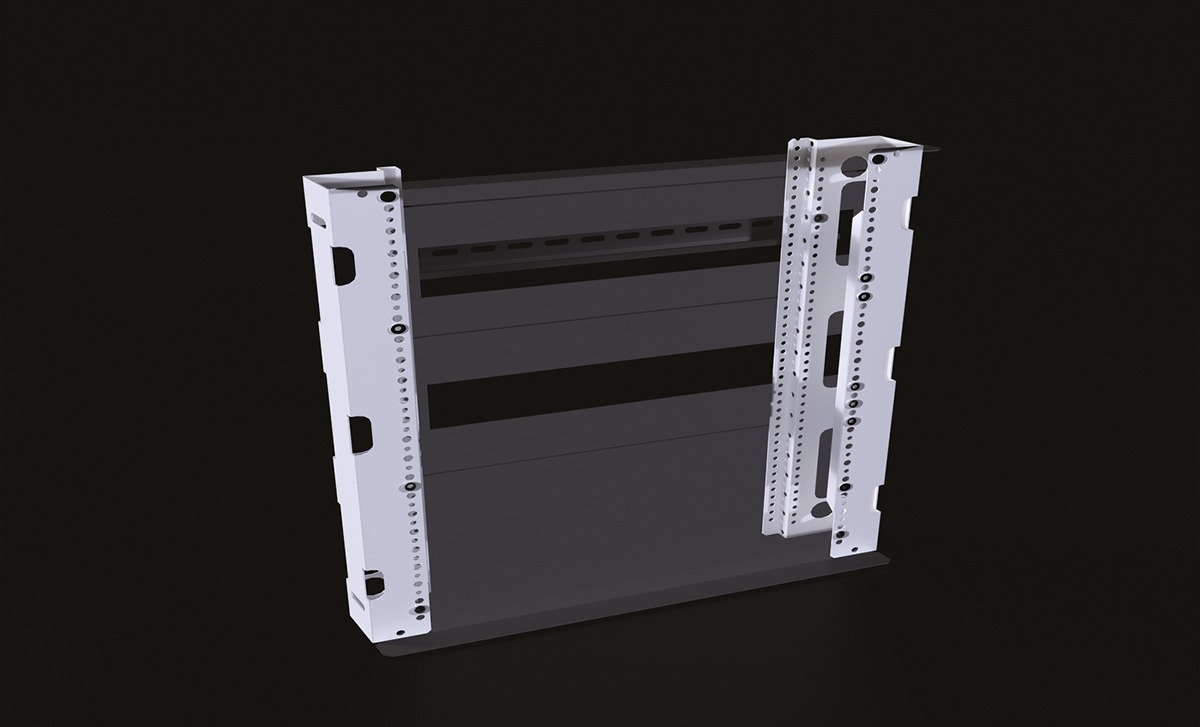

Frame Set
Click here for more information

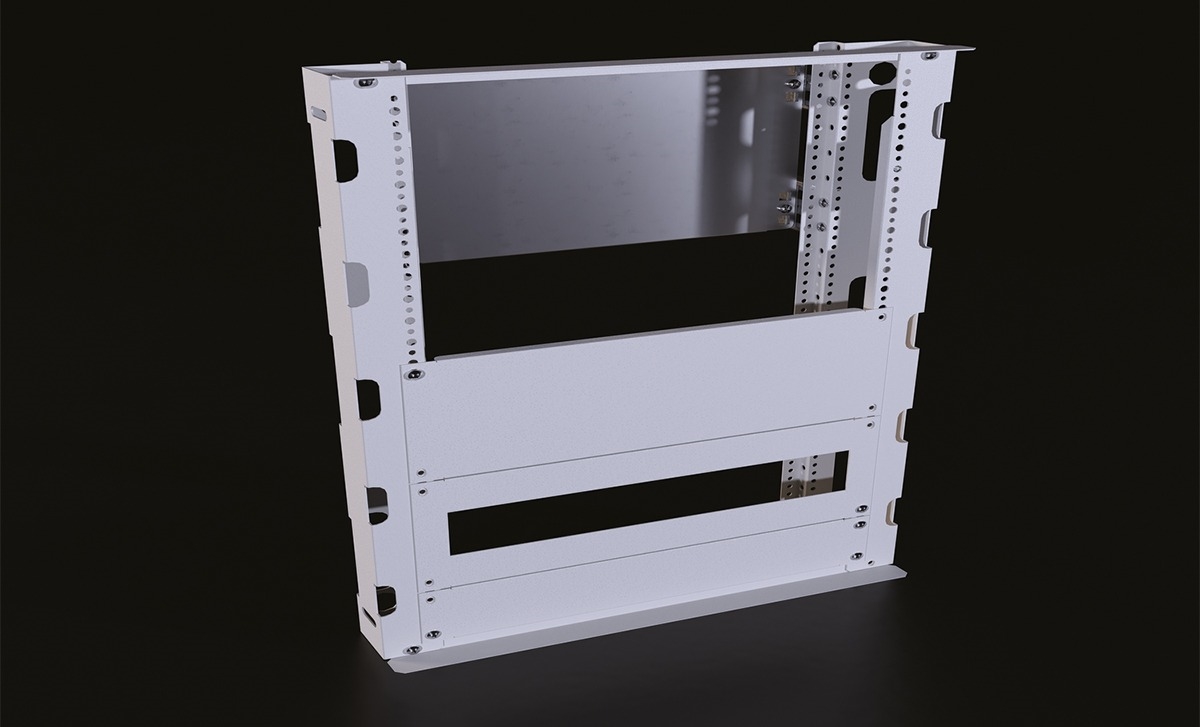

Partial Mounting Plate
Click here for more information

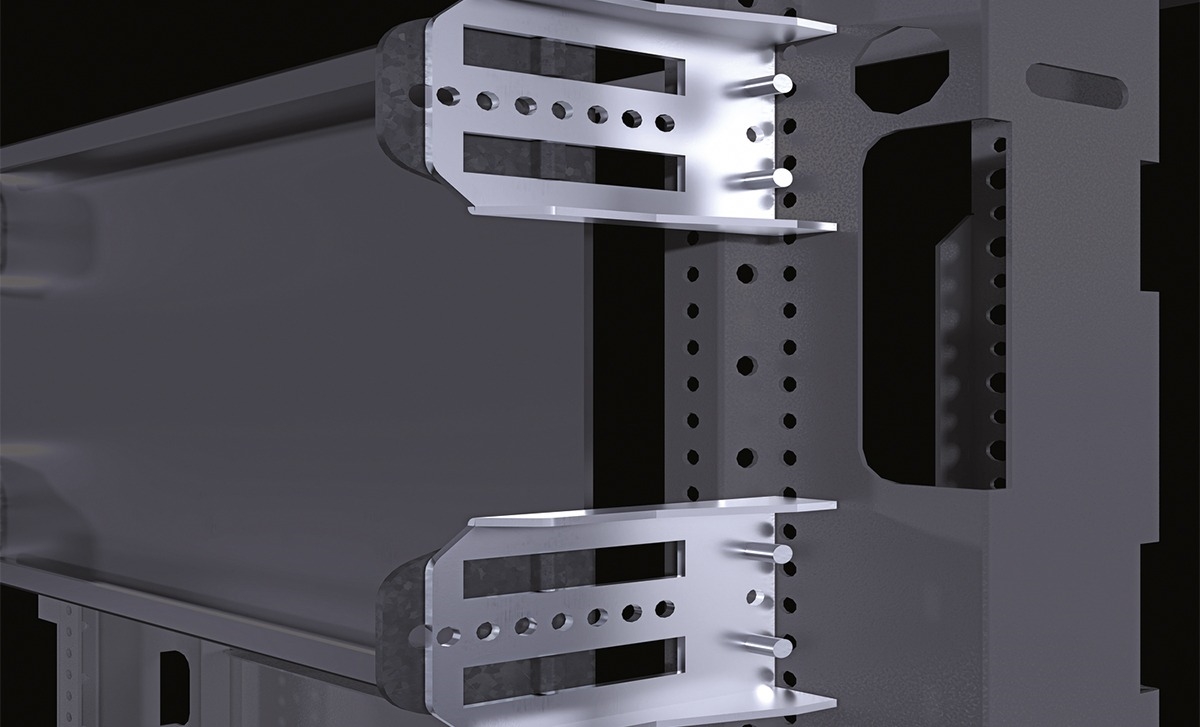

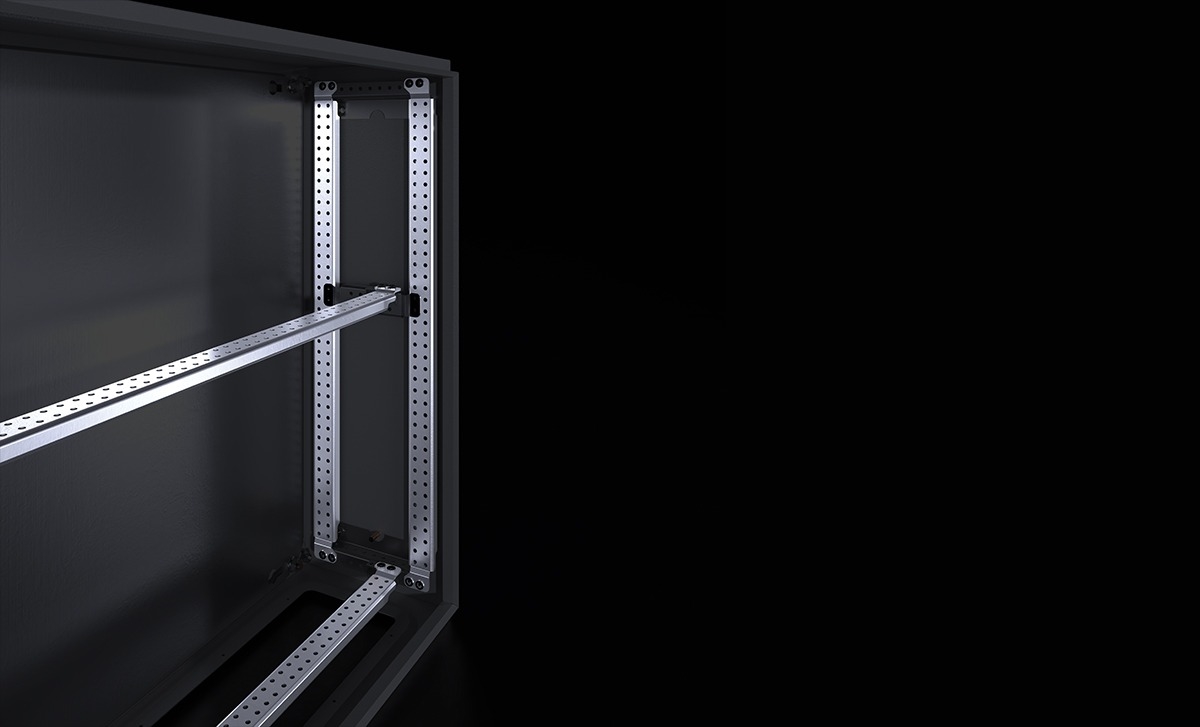

Side Rail
Click here for more information

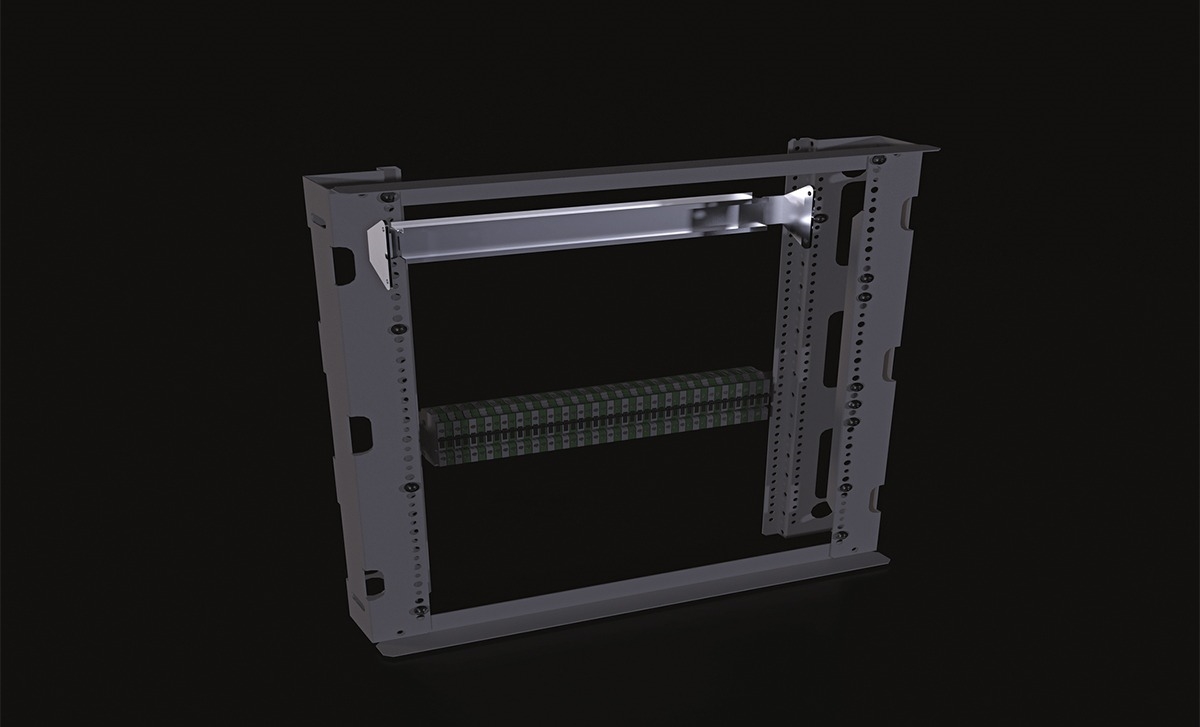

Alumunium DIN Rail
Click here for more information

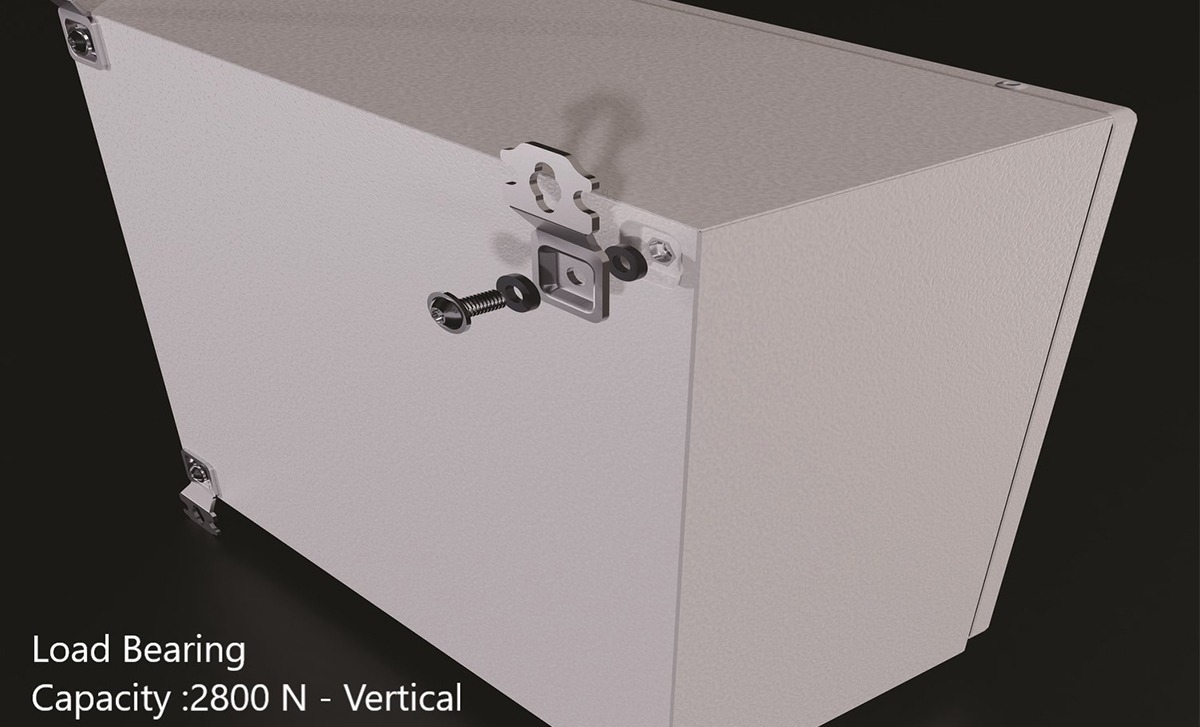

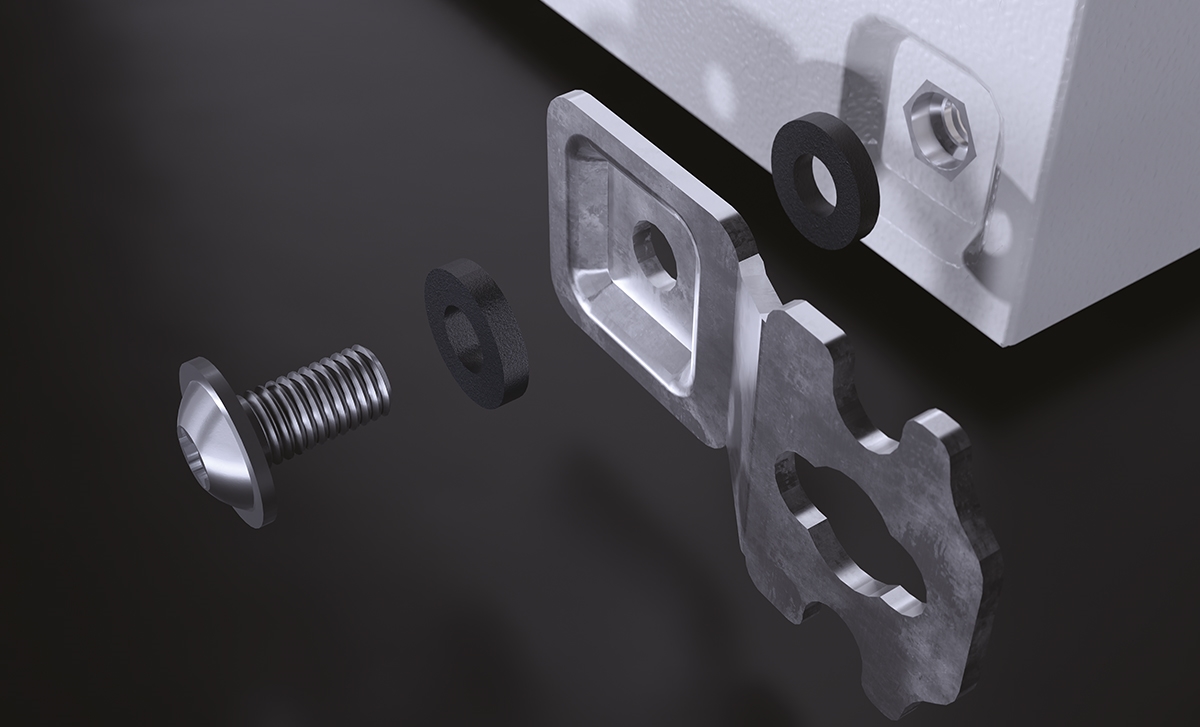

Wall Bracket
   Product Code
2D DXF3D STEP971.300

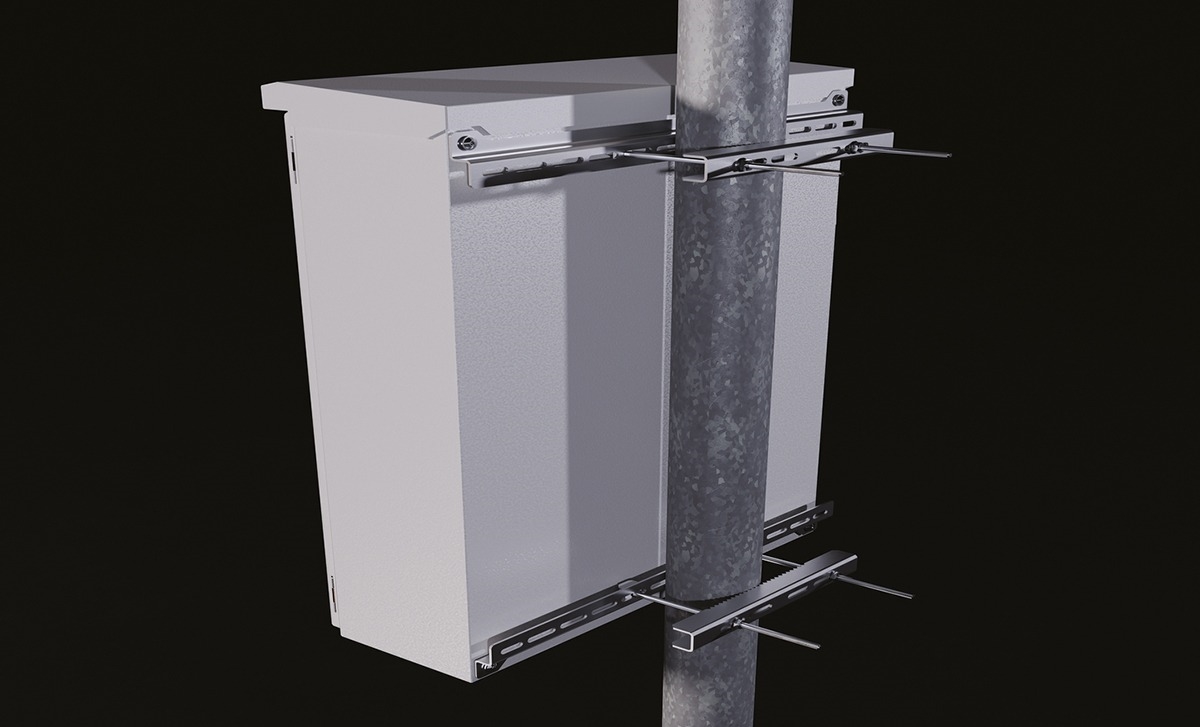

Pole Mount
Click here for more information

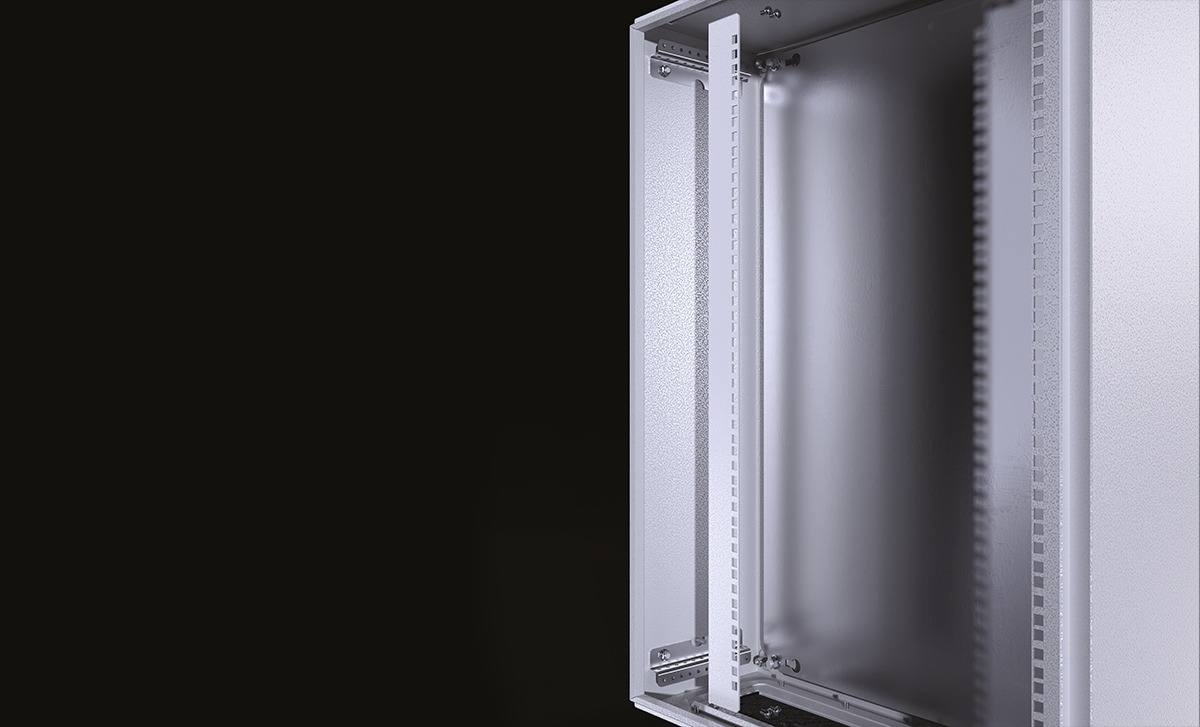

19" Installation
Click here for more information

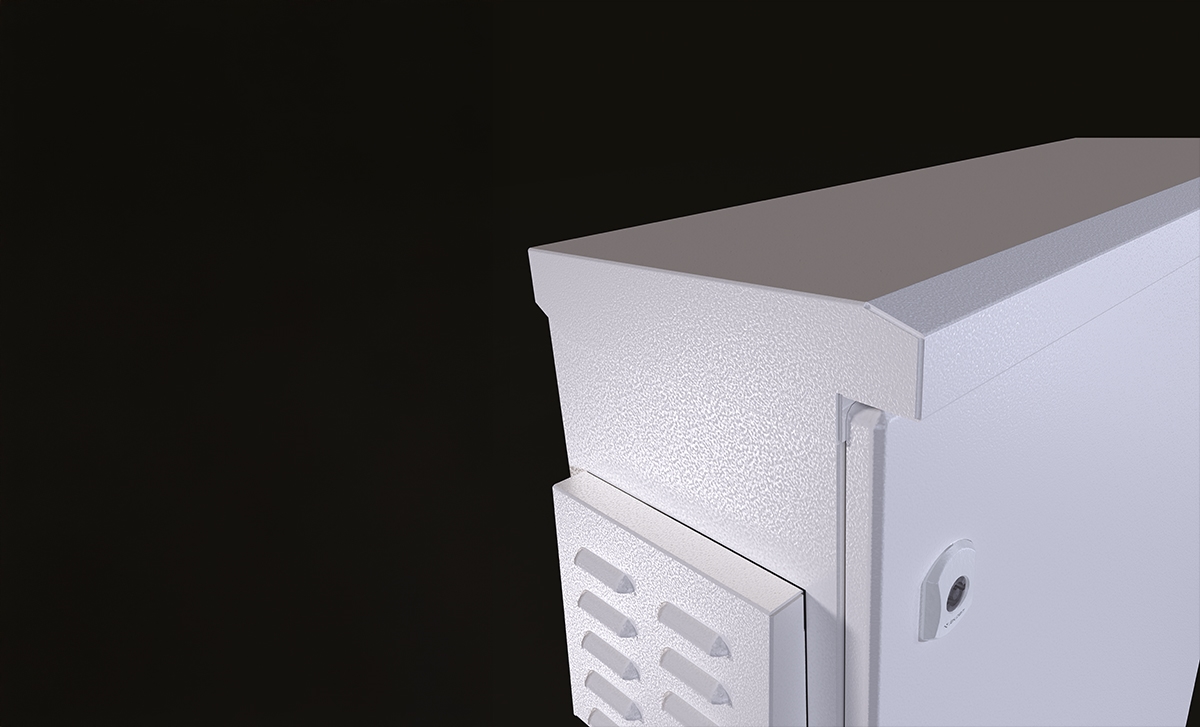

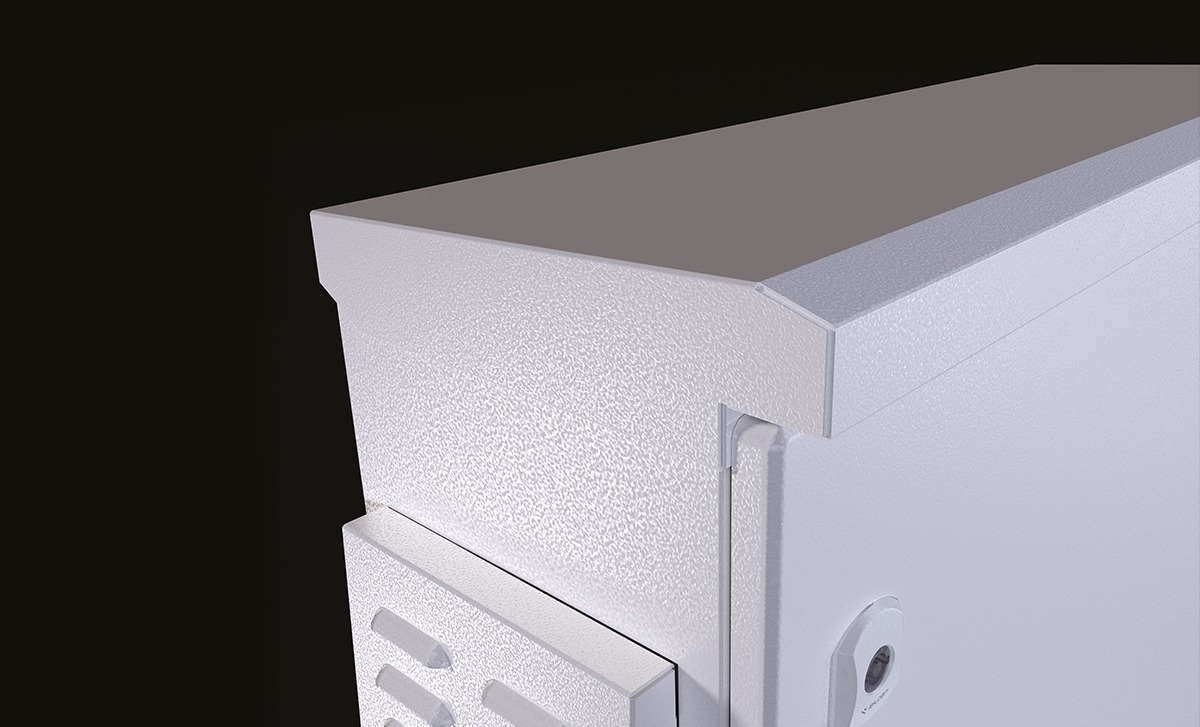

Outdoor Canopy
   Product CodeWidth(W)Depth(D)
2D DXF3D STEP973.032300210
2D DXF3D STEP973.042400210
2D DXF3D STEP973.052500210
2D DXF3D STEP973.062600210
2D DXF3D STEP973.063600300
2D DXF3D STEP973.064600400
2D DXF3D STEP973.083800300
2D DXF3D STEP973.084800400
2D DXF3D STEP973.1031000300

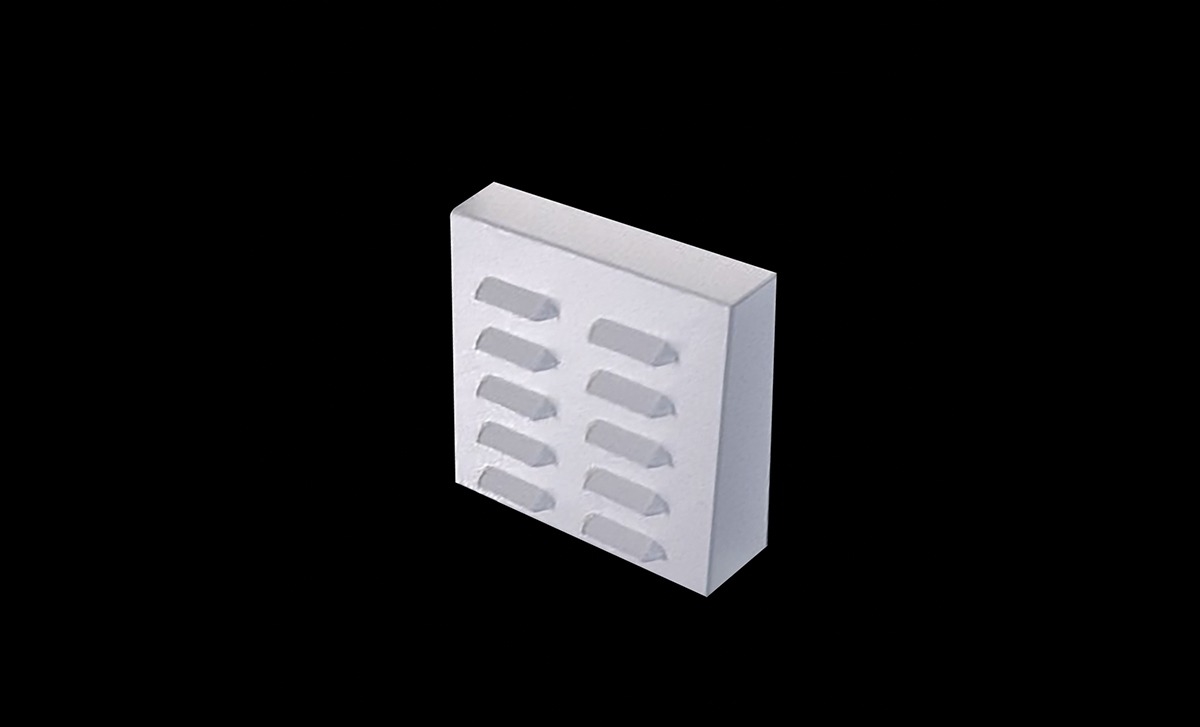

Canopy for Ventilation
   Product CodeFilter ComplianceCanopy Size
2D DXF3D STEP973.105105x105mm155x145mm
2D DXF3D STEP973.150150x150mm200x190mm

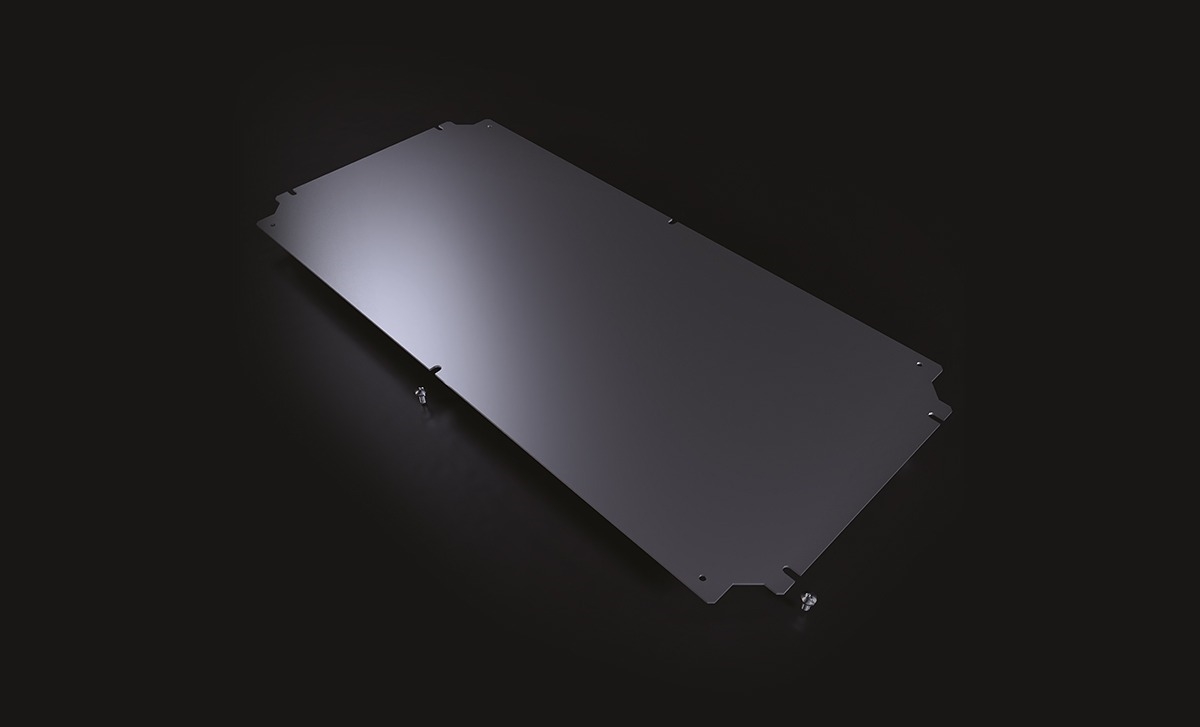

Mounting Plates
Click here for more information

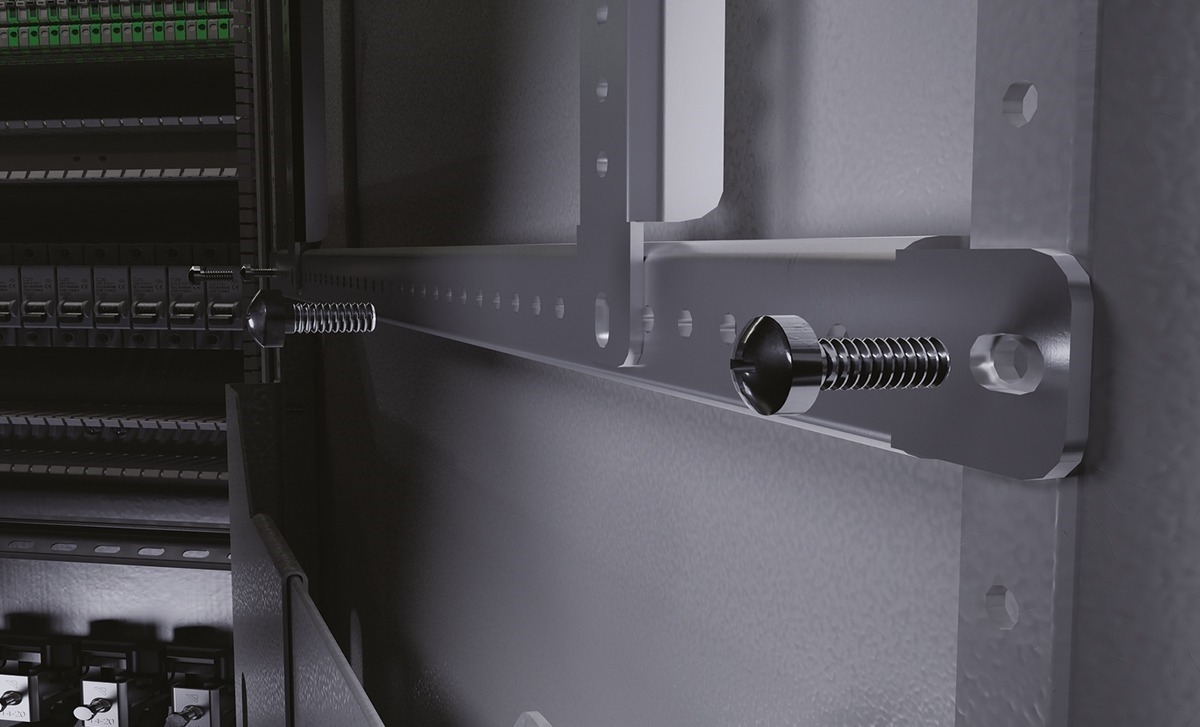

Fixing Rails
Click here for more information

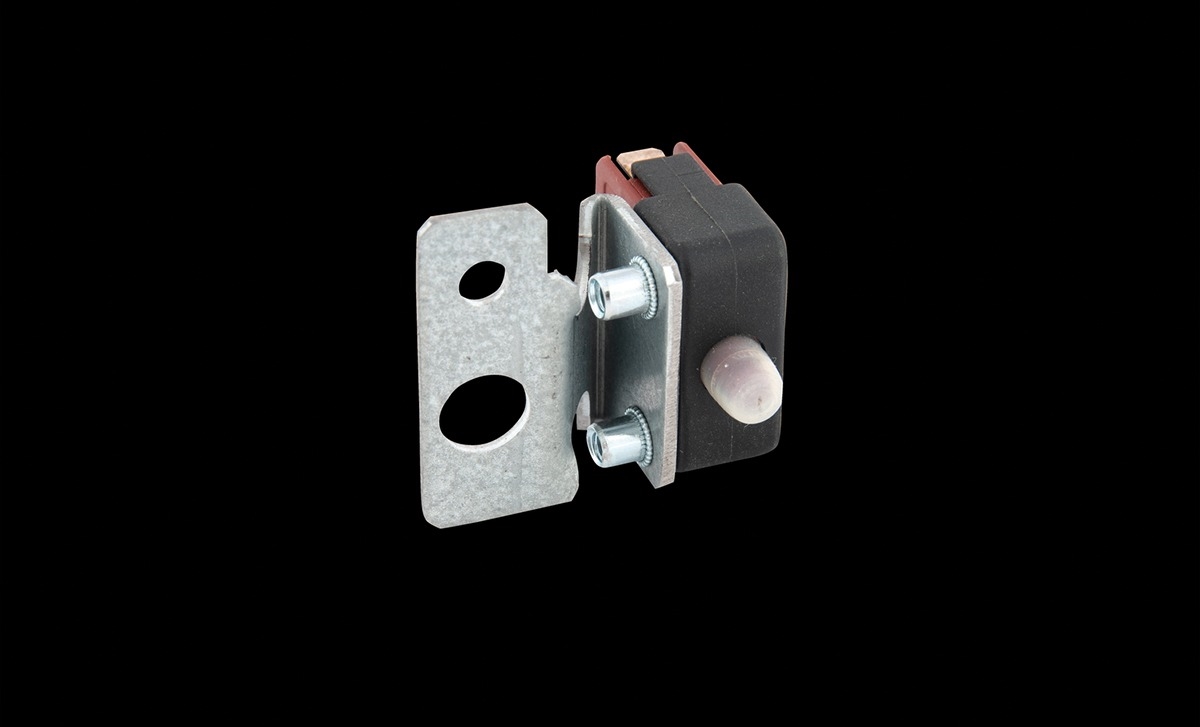

Door Switch
Click here for more information

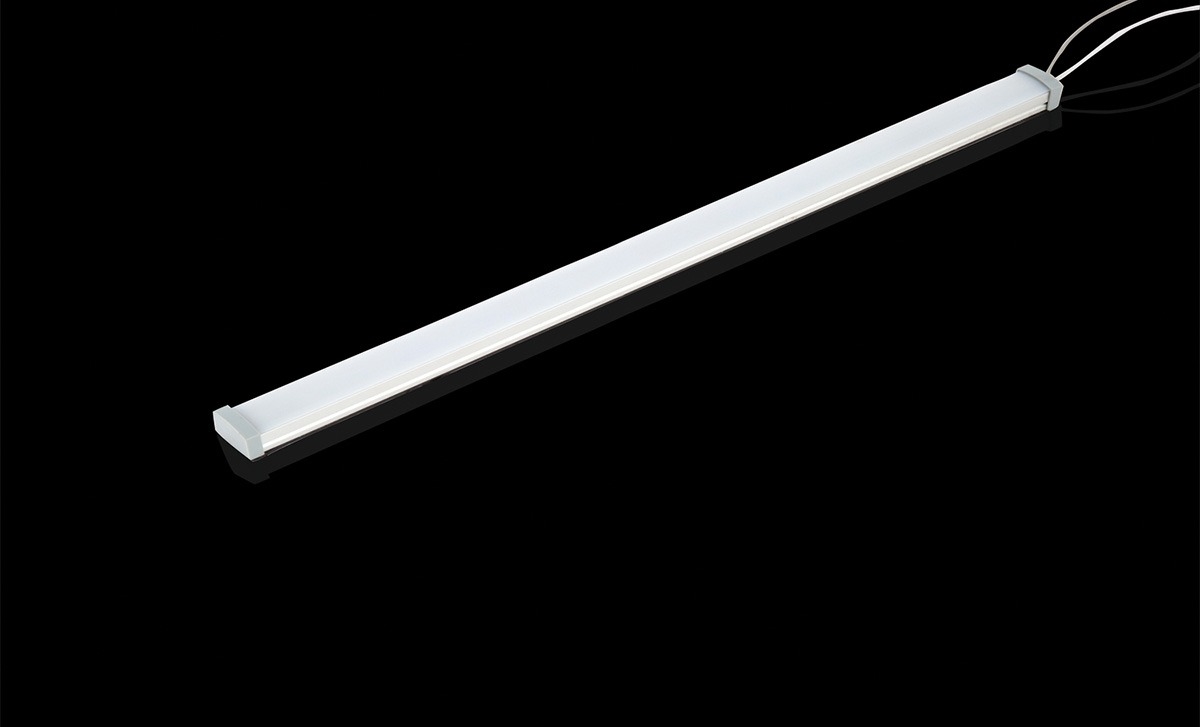

LED Ligth Lamp with Magnetic
Click here for more information

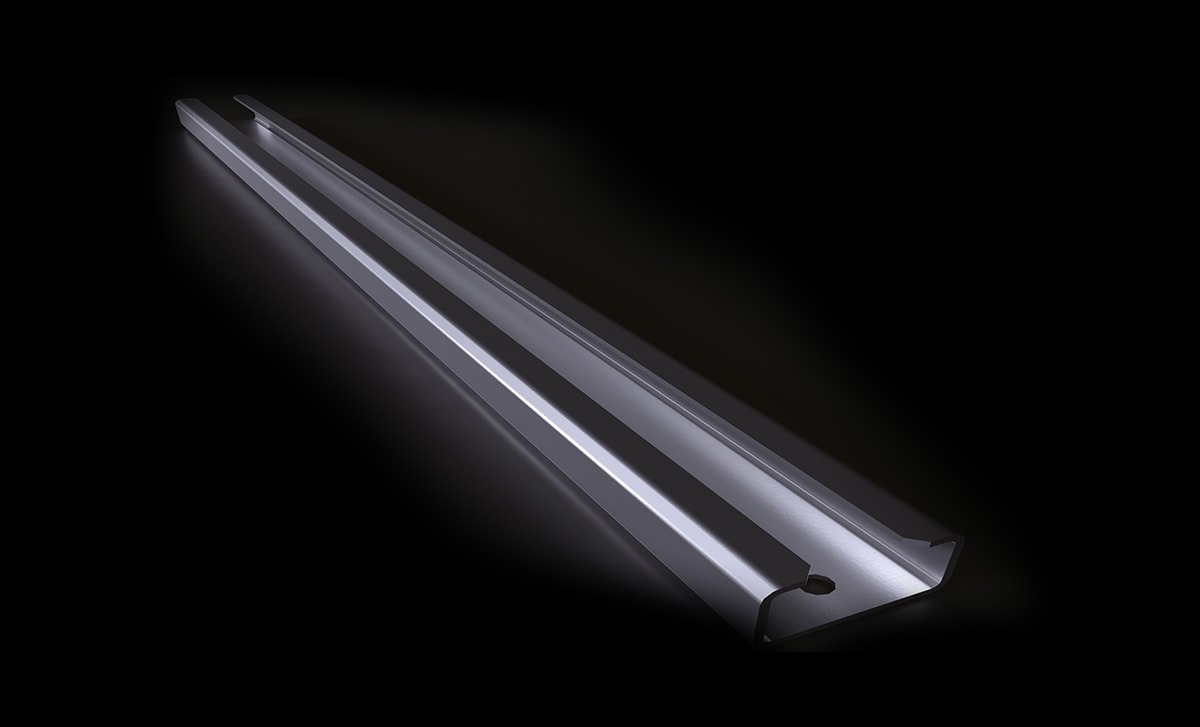

DIN Rails
Click here for more information
Solid Interior Door
   Product CodeWidth(W)Heigth(H)
2D DXF3D STEP975.034300400
2D DXF3D STEP975.044400400
2D DXF3D STEP975.045400500
2D DXF3D STEP975.046400600
2D DXF3D STEP975.057500700
2D DXF3D STEP975.068600800
2D DXF3D STEP975.6106001000
2D DXF3D STEP975.6126001200
2D DXF3D STEP975.8108001000
2D DXF3D STEP975.8128001200

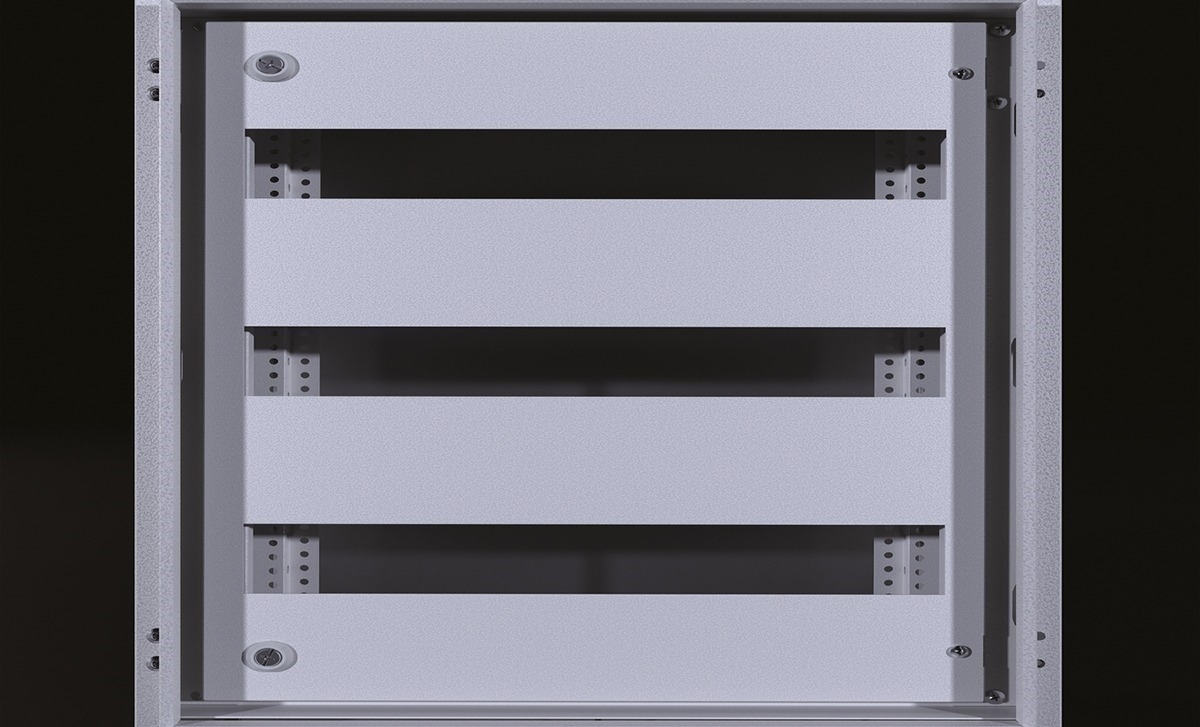

Interior Door for MCBs
Click here for more information

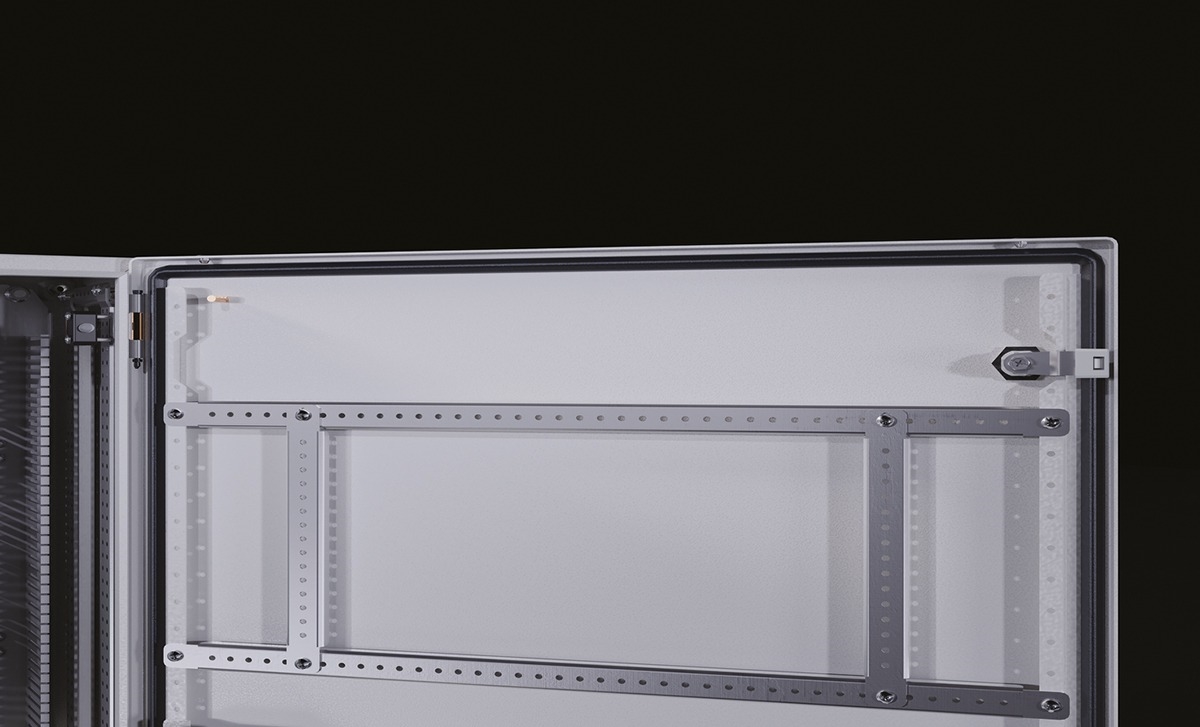

Door Support Rail
   Product CodeWidth(W)
2D DXF3D STEP973.023400 (V2-3) / ­-
2D DXF3D STEP973.024500 (V2-3) / 1000(V4)
2D DXF3D STEP973.025- / 1000(V6)
2D DXF3D STEP973.026600(V2-3) / 1200(V4)
2D DXF3D STEP973.027600(V5) / 1200(V6)
2D DXF3D STEP973.028800(V2-3) / -
2D DXF3D STEP973.029800(V5) / -
2D DXF3D STEP

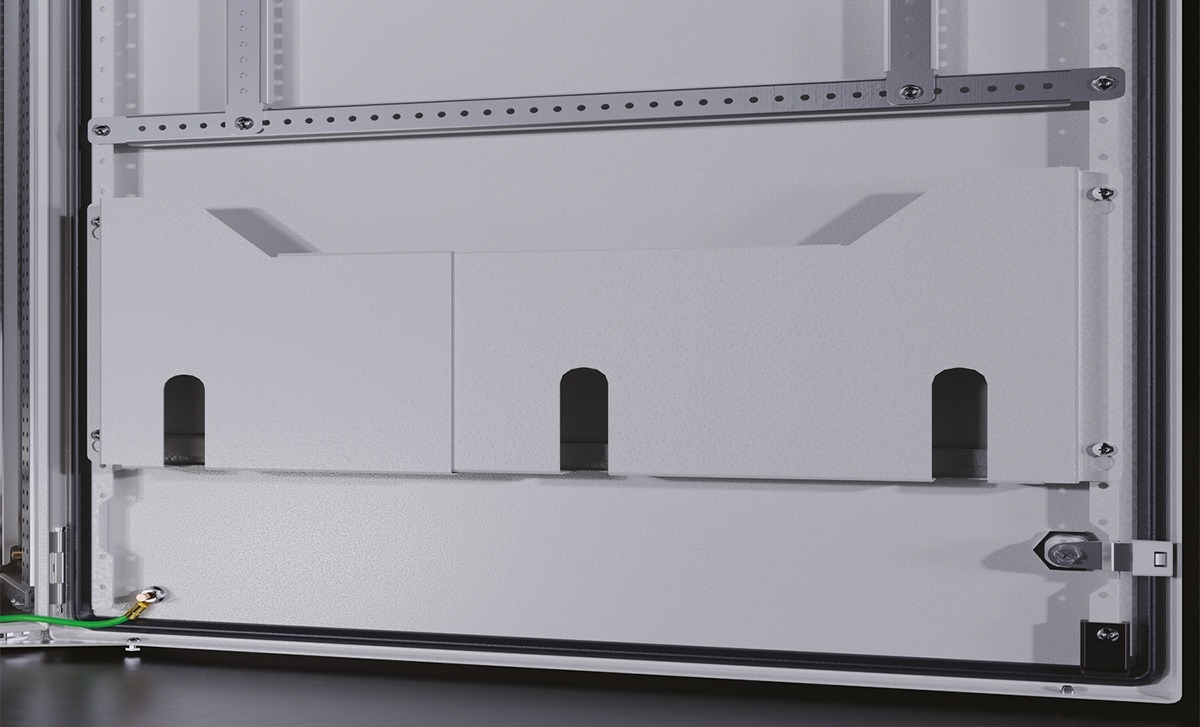

Metal Plan Pocket
   Product CodeWidth(W)
2D DXF3D STEP973.442400-500 / 1000
2D DXF3D STEP973.542600 / 1200
2D DXF3D STEP973.742800 / -

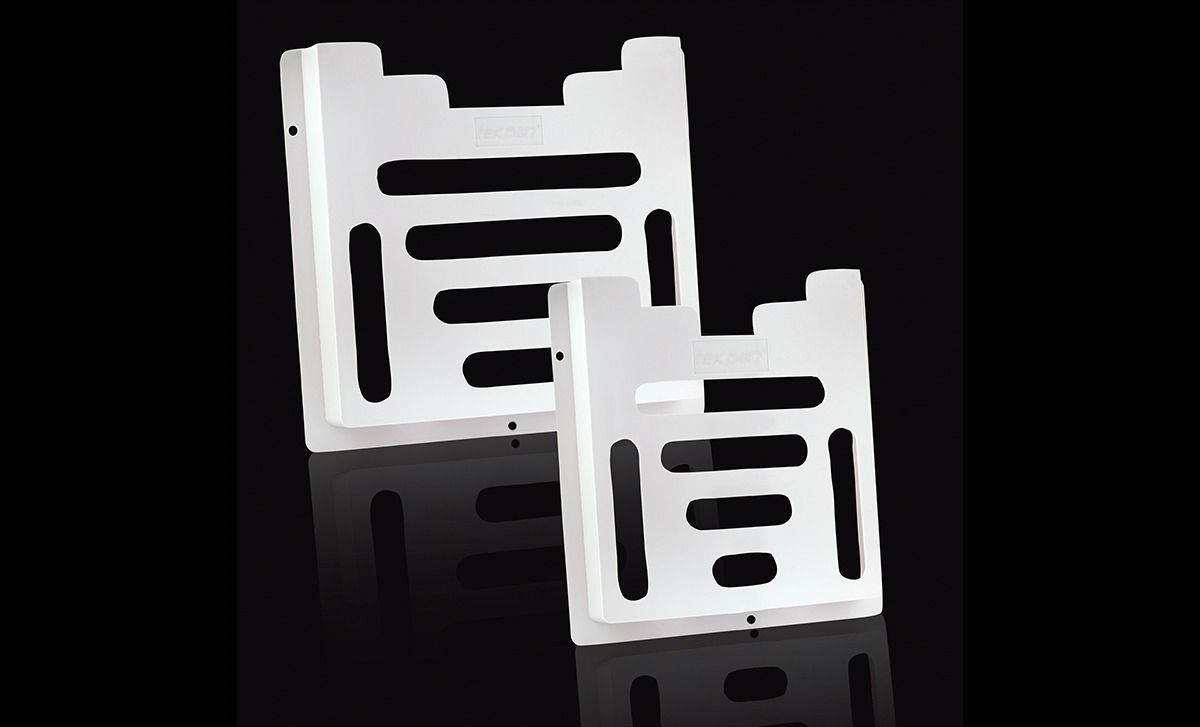

Plastic Plan Pocket
   Product CodeModel
2D DXF3D STEP994.400A4
2D DXF3D STEP994.500A5
Door Stopper
   Product Code
2D DXF3D STEP973.142

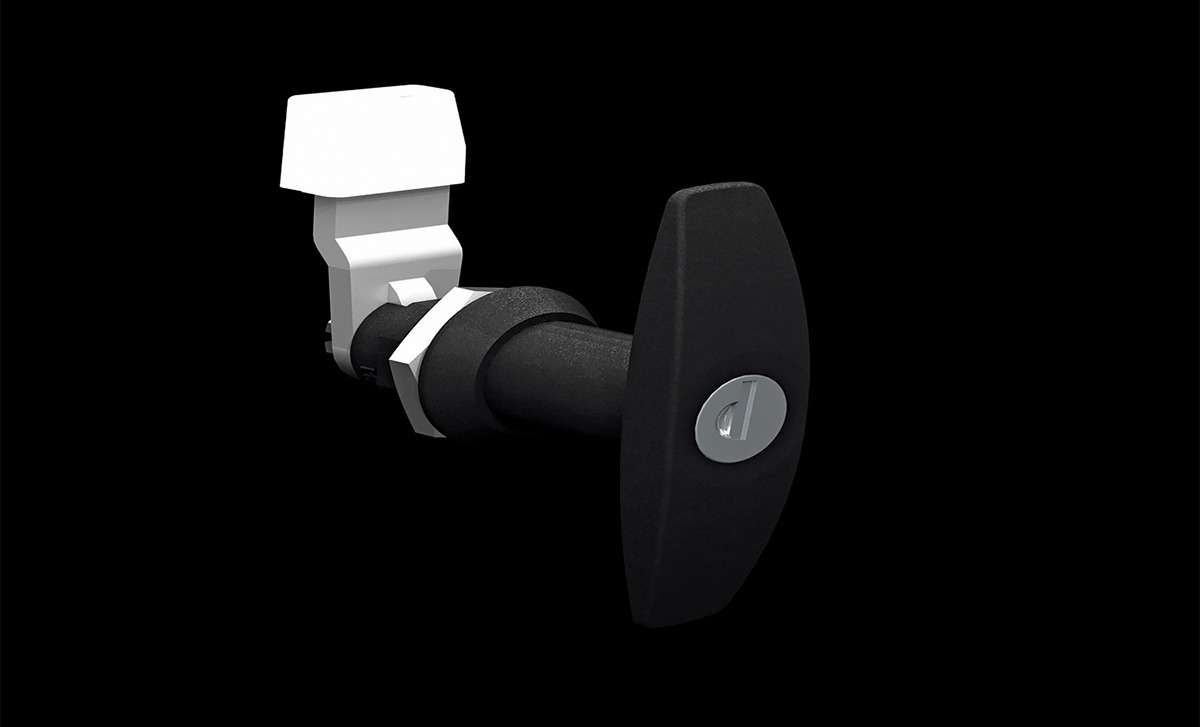

T Handle Lock
   Product Code
2D DXF3D STEP950.210

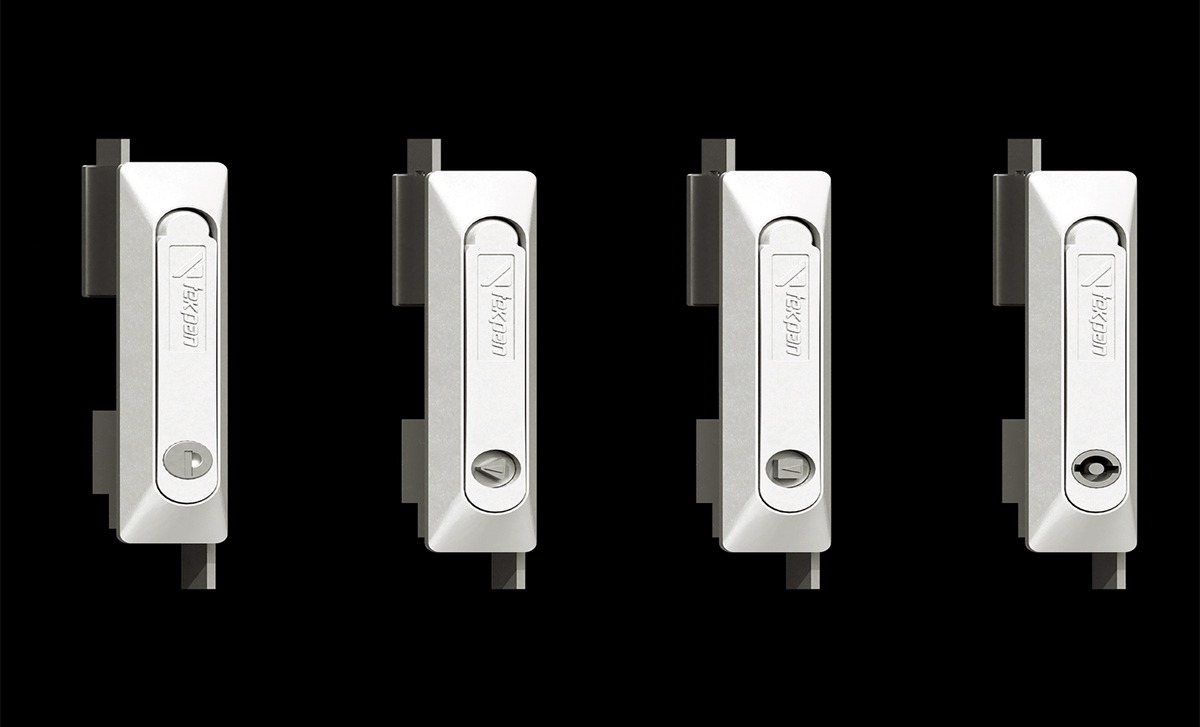

Handle Locks
   Product CodeKey Code
2D DXF3D STEP950.200Eurokey (5333)
2D DXF3D STEP950.2019,00 mm Triangle
2D DXF3D STEP950.2028,00 mm Square
2D DXF3D STEP950.2035,00 mm Doublebit

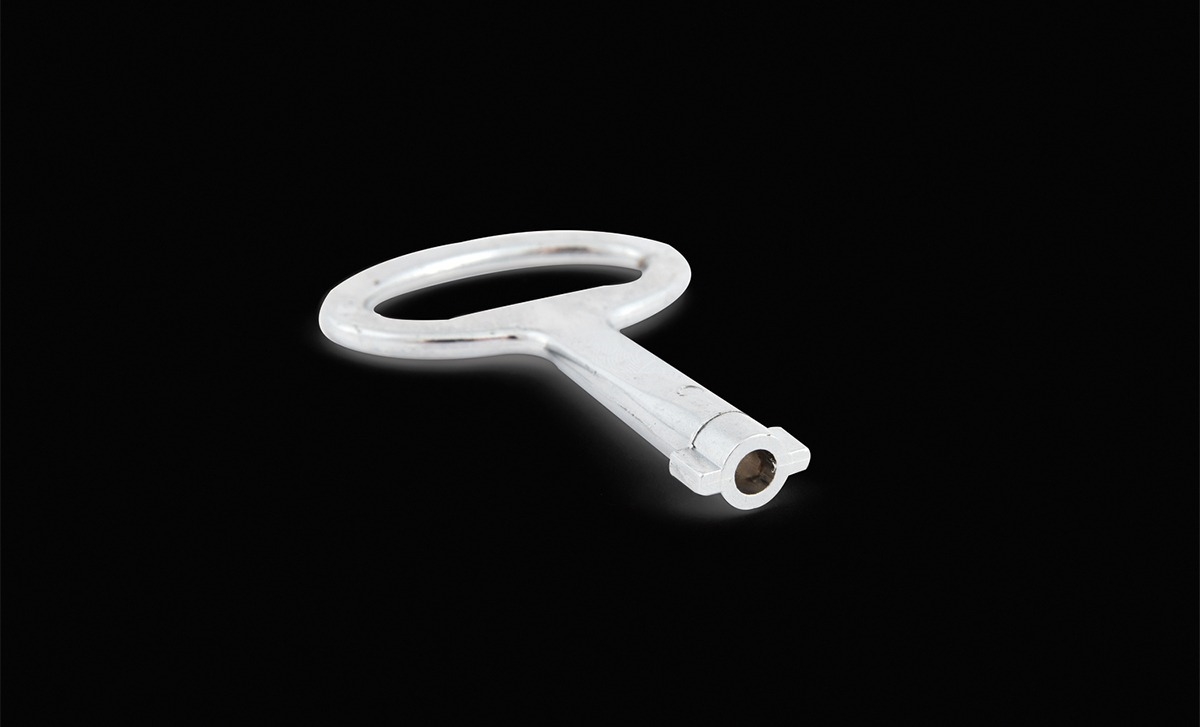

Keys
   Product CodeModel
2D DXF3D STEP952.1028,00 mm Square
2D DXF3D STEP952.1039,00 mm Triangle
2D DXF3D STEP952.3005333 Cylindrical
Self Tapping Screws
   Product CodeModelQuantity
2D DXF3D STEP993.105M5x10mm Self Tapping100
2D DXF3D STEP993.106Self Drilling100

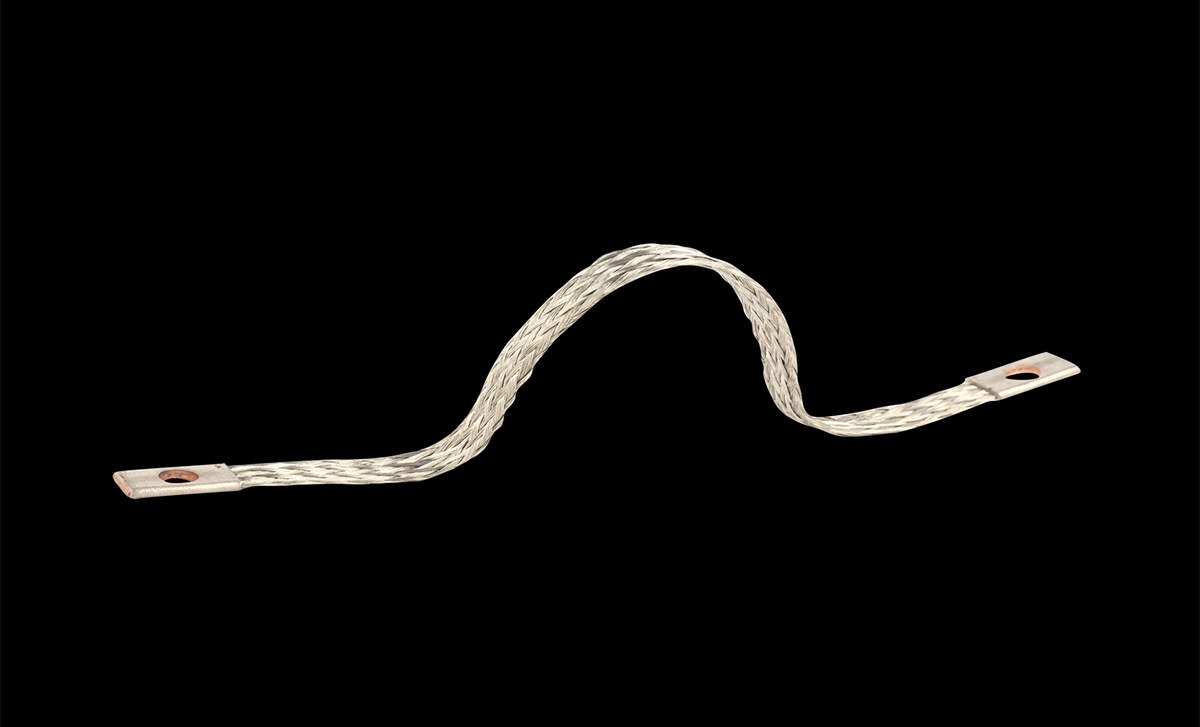

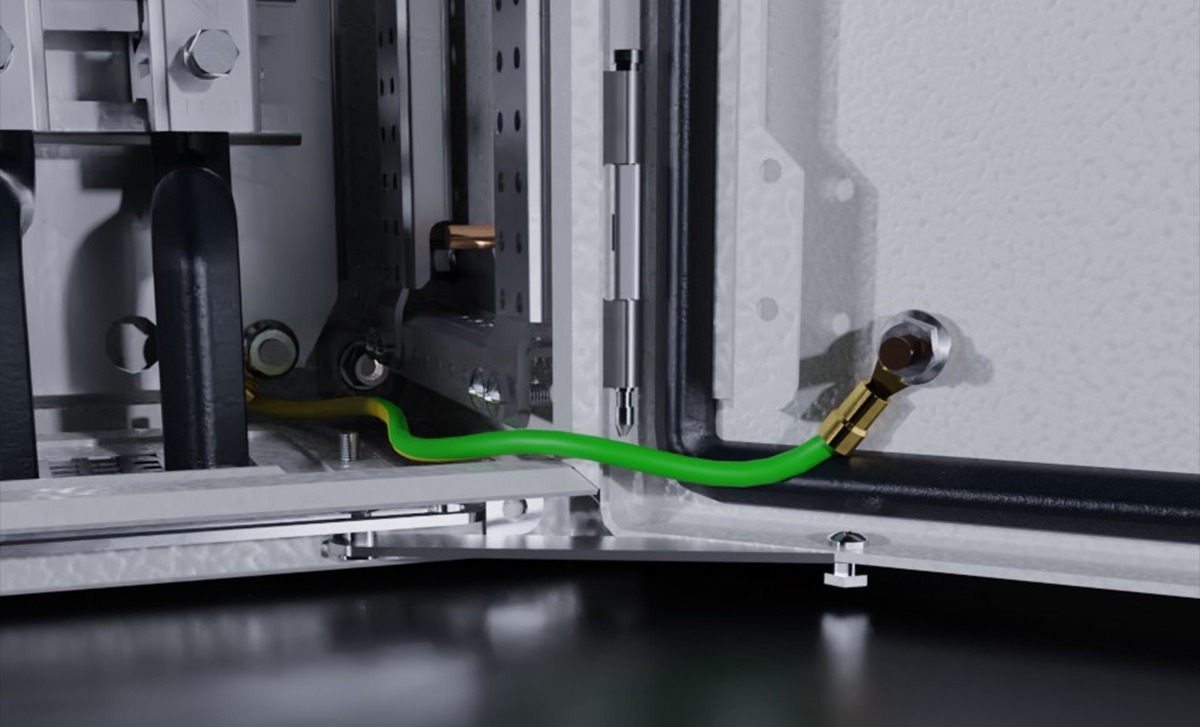

Earthing Cables
   Product CodeModelQuantityCross-cut x Length
2D DXF3D STEP991.200Braided - M61012 x 3 x 163mm
2D DXF3D STEP991.201Braided - M61012 x 3 x 260mm
2D DXF3D STEP991.202Braided - M8515 x 3 x 260mm
2D DXF3D STEP991.203Braided - M6112 x 3 x 260mm
2D DXF3D STEP991.204Braided - M8115 x 3 x 260mm
2D DXF3D STEP991.205Braided - M6112 x 3 x 163mm
2D DXF3D STEP991.208Yellow-Green Cable-M8516mm² x 210mm
2D DXF3D STEP991.209Yellow-Green Cable-M8516mm² x 260mm
2D DXF3D STEP991.210Yellow-Green Cable-M8516mm² x 310mm
