General Overview

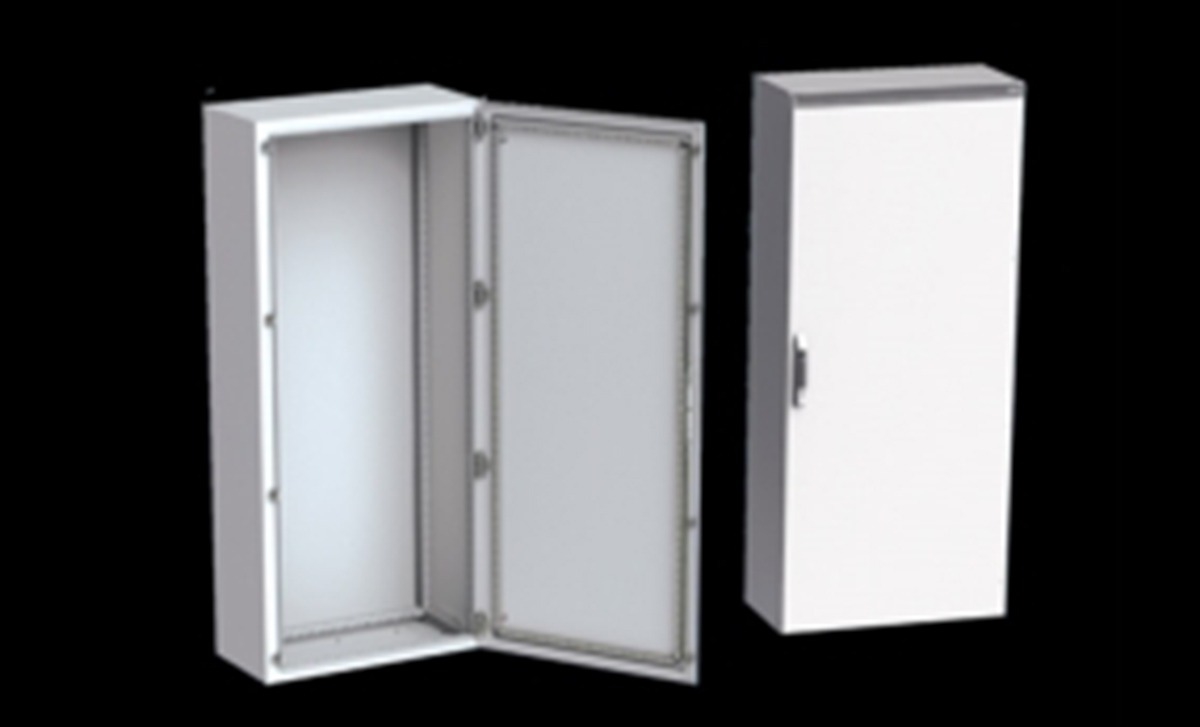

NEO MB Solid Door, Without Mounting Plate

  • Free- standing, indoor type ,monoblock enclosures
  • Complies with IEC 62208 and UL 50E
  • Provides IP protection up to IP65 according to IEC EN 60529 / NEMA 1 , 12
  • Corrosion resistance level C3-M according to EN ISO 12944-2
  • IK protection: IK10 for solid door

Material:

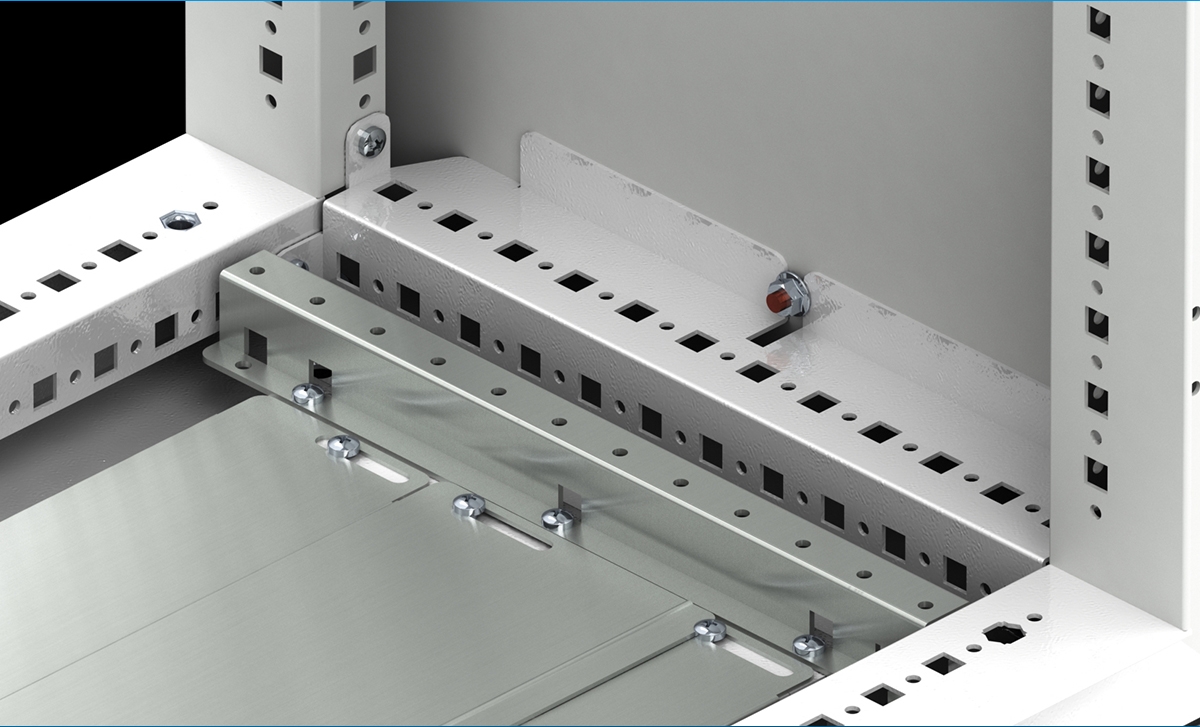

Solid door, rear panel, top panel: DC01 sheet steel Frame, Gland plates: DX51 galvanized sheet steel

Surface Finish:
Frame, door, rear panel, top panel: nano coating with RAL 7035 powder coating

Supply Includes:
1 pc frame , gland plates , 1 pc top panel, 1 pc solid door ( handle lock with 5333 key) and 1 pc rear panel

Options:
Mounting plate, Plinth and other accessories

Dekra IEC
   Product CodeWidth(W)Heigth(H)Depth(D)Door Type
2D DXF3D STEP650.204.00010002000400Double
2D DXF3D STEP650.205.00010002000500Double
2D DXF3D STEP652.205.00012002000500Double
2D DXF3D STEP652.205.01012002000400Double
2D DXF3D STEP652.206.00012002000600Double
2D DXF3D STEP656.124.0006001200400Single
2D DXF3D STEP656.164.0006001600400Single
2D DXF3D STEP656.184.0006001800400Single
2D DXF3D STEP656.204.0006002000400Single
2D DXF3D STEP658.124.0008001200400Single
2D DXF3D STEP658.164.0008001600400Single
2D DXF3D STEP658.165.0008001600500Single
2D DXF3D STEP658.184.0008001800400Single
2D DXF3D STEP658.185.0008001800500Single
2D DXF3D STEP658.204.0008002000400Single
2D DXF3D STEP658.205.0008002000500Single
2D DXF3D STEP658.206.0008002000600Single
Base Corner Piece
   Product CodePlinth Heigth
2D DXF3D STEP708.100100
2D DXF3D STEP708.200200
Base Front–Rear Covers
   Product CodeWidth(W)
2D DXF3D STEP709.1001000
2D DXF3D STEP709.1201200
2D DXF3D STEP709.140400
2D DXF3D STEP709.160600
2D DXF3D STEP709.170700
2D DXF3D STEP709.180800
Base Side Covers
   Product CodeDepth(D)
2D DXF3D STEP710.1001000
2D DXF3D STEP710.140400
2D DXF3D STEP710.150500
2D DXF3D STEP710.160600
2D DXF3D STEP710.180800
Block Base Side Covers
Click here for more information
Block Base
Click here for more information
Block Base Bottom Covers
Click here for more information
M12 Adjustable Foot
Click here for more information
Wheel Set
Click here for more information
NEO Modular Side Panels
   Product CodeHeigth(H)Depth(D)
2D DXF3D STEP632.1251200500
2D DXF3D STEP632.1651600500
2D DXF3D STEP632.1841800400
2D DXF3D STEP632.1851800500
2D DXF3D STEP632.1861800600
2D DXF3D STEP632.2042000400
2D DXF3D STEP632.2052000500
2D DXF3D STEP632.2062000600
2D DXF3D STEP632.2082000800
M12 Eyebolt Carrier
   Product Code
2D DXF3D STEP612.000
Wall Mounting Profile
Click here for more information
Top Angle Profile
Click here for more information
Corner Cabinet Adapter
Click here for more information
Sponge Cable Entry System
   Product CodeWidth(W)
2D DXF3D STEP923.1001000
2D DXF3D STEP923.1201200
2D DXF3D STEP923.400400
2D DXF3D STEP923.600600
2D DXF3D STEP923.700700
2D DXF3D STEP923.800800
Brush Cable Entry System
   Product CodeWidth(W)
2D DXF3D STEP923.1011000
2D DXF3D STEP923.1211200
2D DXF3D STEP923.401400
2D DXF3D STEP923.601600
2D DXF3D STEP923.701700
2D DXF3D STEP923.801800
Cable Tie Rail
   Product CodeWidth(W)
2D DXF3D STEP998.1001000
2D DXF3D STEP998.1201200
2D DXF3D STEP998.400400
2D DXF3D STEP998.600600
2D DXF3D STEP998.700700
2D DXF3D STEP998.800800
Cable Clamp
   Product CodeCable DiameterQuantity
2D DXF3D STEP998.60014 - 2020
2D DXF3D STEP998.70020 - 2815
Cable Fixing Rail (C-Type)
   Product CodeWidth(W)Rail Size mm
2D DXF3D STEP973.040400250
2D DXF3D STEP973.060600450
2D DXF3D STEP973.080800650
Rail Elevators
Click here for more information
Mounting Plate (3 mm)
   Product CodeWidth(W)Heigth(H)
2D DXF3D STEP707.01810001800
2D DXF3D STEP707.02010002000
2D DXF3D STEP707.21212001200
2D DXF3D STEP707.21612001600
2D DXF3D STEP707.21812001800
2D DXF3D STEP707.22012002000
2D DXF3D STEP707.22212002200
2D DXF3D STEP707.418400800
2D DXF3D STEP707.4204002000
2D DXF3D STEP707.6126001200
2D DXF3D STEP707.6166001600
2D DXF3D STEP707.6186001800
2D DXF3D STEP707.6206002000
2D DXF3D STEP707.6226002200
2D DXF3D STEP707.7187001800
2D DXF3D STEP707.7207002000
2D DXF3D STEP707.8128001200
2D DXF3D STEP707.8168001600
2D DXF3D STEP707.8188001800
2D DXF3D STEP707.8208002000
2D DXF3D STEP707.8228002200
Mounting Plate (2 mm)
Click here for more information
Intermediate Mounting Plate
   Product CodeHeigth(H)
2D DXF3D STEP712.1201200
2D DXF3D STEP712.1601600
2D DXF3D STEP712.1801800
2D DXF3D STEP712.2002000
2D DXF3D STEP712.2202200
Edge Extension Plate
Click here for more information
Split Mounting Plates
Click here for more information
Cuttable Crossbar, Zinc-Plated (50x25 mm)
Click here for more information
Cuttable Crossbar, Pre-galvanized (50x25 mm)
Click here for more information
Heavy Equipment Profile
Click here for more information
Snap-in Crossbar Holder
   Product CodeQuantity
2D DXF3D STEP944.420100
2D DXF3D STEP944.42112
Crossbar Holder (T-Type)
   Product CodeQuantity
2D DXF3D STEP944.4334
Adjustable Crossbar Holder (L-Type)
   Product CodeQuantity
2D DXF3D STEP944.4344
Adjustable Mounting Kit
Click here for more information
Aluminum DIN Rail Kit (Rear Mounted)
Click here for more information
Aluminum DIN Rail Kit (Front Mounted)
Click here for more information
Cabinet Partition Panel (NEO)
Click here for more information
LED Cabinet Lamp (Screw Mount)
Click here for more information
LED Cabinet Lamp (Magnetic Mount)
Click here for more information
LED Lamp Mounting Rail
   Product CodeWidth(W)
2D DXF3D STEP903.204400
2D DXF3D STEP903.206600
2D DXF3D STEP903.207700
2D DXF3D STEP903.208800
2D DXF3D STEP903.2101000
2D DXF3D STEP903.2121200
Door Lighting Switch
   Product Code
2D DXF3D STEP902.110
Switch Holder
   Product Code
2D DXF3D STEP903.300
Fixed Mounting Shelves
Click here for more information
Sliding Mounting Shelves
Click here for more information
19" Mounting Profile
Click here for more information
800-Width Profile Adapter
Click here for more information
19" Fixed Mounting Shelves
Click here for more information
19" Sliding Mounting Shelves
Click here for more information
19" Swing-Frame System
Click here for more information
Upper-Lower Fixed Panel
   Product CodeWidth(W)ModelPanel Heigth
2D DXF3D STEP854.410400Upper-Fixed100
2D DXF3D STEP854.420400Upper-Fixed200
2D DXF3D STEP854.610600Upper-Fixed100
2D DXF3D STEP854.620600Upper-Fixed200
2D DXF3D STEP854.810800Upper-Fixed100
2D DXF3D STEP854.820800Upper-Fixed200
2D DXF3D STEP855.410400Lower Fixed200
2D DXF3D STEP855.420400Lower Fixed200
2D DXF3D STEP855.610600Lower Fixed100
2D DXF3D STEP855.620600Lower Fixed200
2D DXF3D STEP855.810800Lower Fixed100
2D DXF3D STEP855.820800Lower Fixed200
Hinged Split Door
   Product CodeWidth(W)ModelPanel Heigth
2D DXF3D STEP853.410400Middle-Hinged1000
2D DXF3D STEP853.415400Middle-Hinged150
2D DXF3D STEP853.420400Middle-Hinged200
2D DXF3D STEP853.425400Middle-Hinged250
2D DXF3D STEP853.430400Middle-Hinged300
2D DXF3D STEP853.435400Middle-Hinged350
2D DXF3D STEP853.440400Middle-Hinged400
2D DXF3D STEP853.445400Middle-Hinged450
2D DXF3D STEP853.450400Middle-Hinged500
2D DXF3D STEP853.460400Middle-Hinged600
2D DXF3D STEP853.480400Middle-Hinged800
2D DXF3D STEP853.610600Middle-Hinged1000
2D DXF3D STEP853.615600Middle-Hinged150
2D DXF3D STEP853.620600Middle-Hinged200
2D DXF3D STEP853.625600Middle-Hinged250
2D DXF3D STEP853.630600Middle-Hinged300
2D DXF3D STEP853.635600Middle-Hinged350
2D DXF3D STEP853.640600Middle-Hinged400
2D DXF3D STEP853.645600Middle-Hinged450
2D DXF3D STEP853.650600Middle-Hinged500
2D DXF3D STEP853.660600Middle-Hinged600
2D DXF3D STEP853.680600Middle-Hinged800
2D DXF3D STEP853.810800Middle-Hinged1000
2D DXF3D STEP853.815800Middle-Hinged150
2D DXF3D STEP853.820800Middle-Hinged200
2D DXF3D STEP853.825800Middle-Hinged250
2D DXF3D STEP853.830800Middle-Hinged300
2D DXF3D STEP853.835800Middle-Hinged350
2D DXF3D STEP853.840800Middle-Hinged400
2D DXF3D STEP853.845800Middle-Hinged450
2D DXF3D STEP853.850800Middle-Hinged500
2D DXF3D STEP853.860800Middle-Hinged600
2D DXF3D STEP853.880800Middle-Hinged800
Door-Inner Mounting Crossbar
   Product CodeWidth(W)
2D DXF3D STEP997.104400 Single Door / 800 Double Door
2D DXF3D STEP997.1111000 Single Door / -­
2D DXF3D STEP997.113600 Single Door / 1200 Double Door
2D DXF3D STEP997.114800 Single Door / -
2D DXF3D STEP997.115­- / 1000 Double Doors
2D DXF3D STEP997.116700 Single Door / -
Metal Document Pocket
   Product CodeWidth(W)
2D DXF3D STEP994.704400 Tek Kapı / 800 Çift kapı
2D DXF3D STEP994.706600 Tek Kapı / 1200 Çift Kapı
2D DXF3D STEP994.707700 Tek Kapı / - ­
2D DXF3D STEP994.708800 Tek Kapı / - ­
2D DXF3D STEP994.710­- / 1000 Çift Kapı
2D DXF3D STEP994.7111000 Tek Kapı / -­
Door Stopper (NEO)
   Product Code
2D DXF3D STEP905.204
Lever Locks (NEO)
   Product CodeModelKey Code
2D DXF3D STEP950.110İnsert5,00 mm Doublebit
2D DXF3D STEP950.115İnsert9,00 mm Triangle
2D DXF3D STEP950.116İnsert8,00 mm Square
2D DXF3D STEP950.117Komple Kilit5333 Cylindrical
2D DXF3D STEP951.214Complete Lock (Padlock)5334 Cylindrical
Lock Keys
   Product CodeModel
2D DXF3D STEP952.1015,00 mm Doublebit
2D DXF3D STEP
2D DXF3D STEP952.1028,00 mm Square
2D DXF3D STEP952.1039,00 mm Triangle
2D DXF3D STEP952.3005333 Cylindrical
Self-Tapping Screws
   Product CodeModelQuantity
2D DXF3D STEP993.105M5x10mm Self Tapping100
2D DXF3D STEP993.106Self Drilling100
Earthing Cables
   Product CodeModelQuantityCross-cut x Length
2D DXF3D STEP991.200Braided - M61012 x 3 x 163mm
2D DXF3D STEP991.201Braided - M61012 x 3 x 260mm
2D DXF3D STEP991.202Braided - M8515 x 3 x 260mm
2D DXF3D STEP991.203Braided - M6112 x 3 x 260mm
2D DXF3D STEP991.204Braided - M8115 x 3 x 260mm
2D DXF3D STEP991.205Braided - M6112 x 3 x 163mm
2D DXF3D STEP991.208Yellow-Green Cable-M8516mm² x 210mm
2D DXF3D STEP991.209Yellow-Green Cable-M8516mm² x 260mm
2D DXF3D STEP991.210Yellow-Green Cable-M8516mm² x 310mm
M6 Profile Nut
   Product CodeQuantity
2D DXF3D STEP994.170100
2D DXF3D STEP994.17110
