TEOS Flat Pack Modular Enclosure

  • Floor standing, indoor type, modular enclosures (suitable for side-by-side combination)
  • Complies with IEC 62208 and UL 50E
  • Provides IP protection up to IP65 according to IEC EN 60529 / NEMA 1 , 12
  • Corrosion resistance level C3-M according to EN ISO 12944-2
  • IK protection: IK10 for solid door, IK08 for glass door

Material:
Door, rear panel, top panel: DC01 sheet steel Frame, Gland plates, mounting plate: DX51 galvanized sheet steel

Surface Finish:
Frame, door, rear panel, top panel : nano coating with RAL 7035 powder coating

Supply Includes:
Modular flat-pack enclosure sets (see “Sizes/Order Codes” for details)

Options:
Plinth, side panels, baying kit, and other accessories

Dekra UL IEC
Product Catalogues

TEOS Moduler Enclosure
Product Technical Information

TEOS Moduler Enclosure Technical Drawings

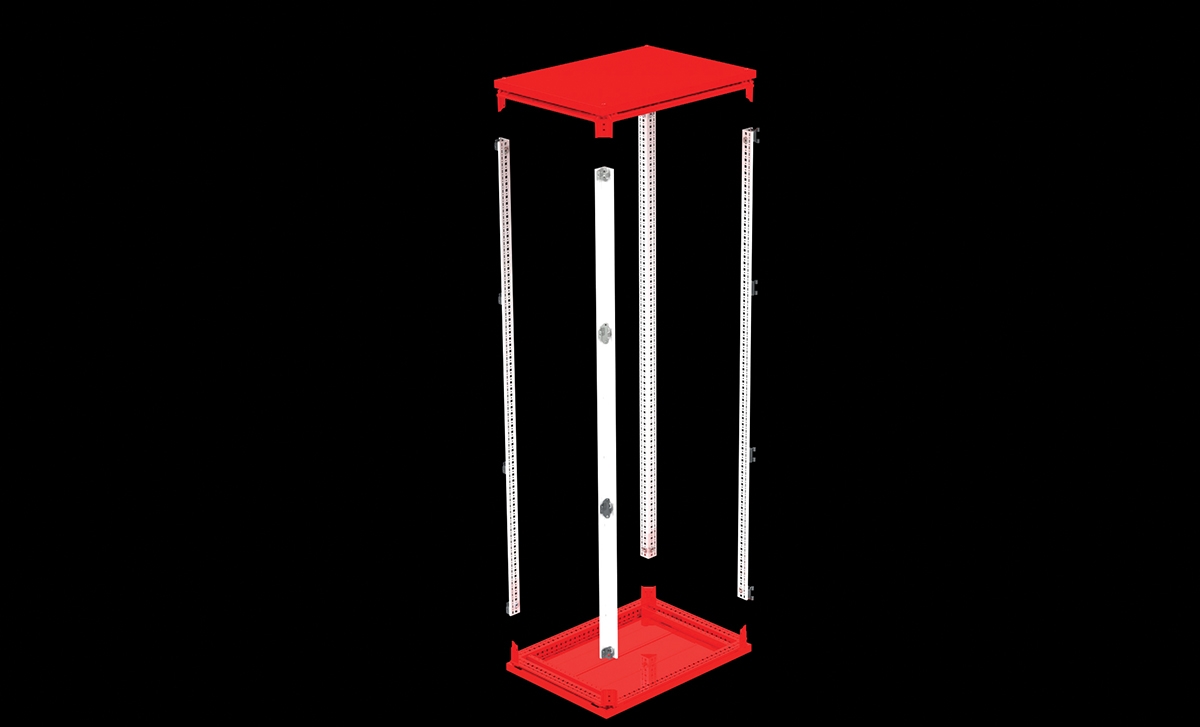

Top-Bottom Group
   Product CodeWidth(W)Depth(D)
2D DXF3D STEP701.0401000400
2D DXF3D STEP701.0501000500
2D DXF3D STEP701.0601000600
2D DXF3D STEP701.0801000800
2D DXF3D STEP701.2401200400
2D DXF3D STEP701.2501200500
2D DXF3D STEP701.2601200600
2D DXF3D STEP701.2801200800
2D DXF3D STEP701.450400500
2D DXF3D STEP701.460400600
2D DXF3D STEP701.480400800
2D DXF3D STEP701.6106001000
2D DXF3D STEP701.640600400
2D DXF3D STEP701.650600500
2D DXF3D STEP701.660600600
2D DXF3D STEP701.680600800
2D DXF3D STEP701.740700400
2D DXF3D STEP701.750700500
2D DXF3D STEP701.760700600
2D DXF3D STEP701.780700800
2D DXF3D STEP701.8108001000
2D DXF3D STEP701.840800400
2D DXF3D STEP701.850800500
2D DXF3D STEP701.860800600
2D DXF3D STEP701.880800800

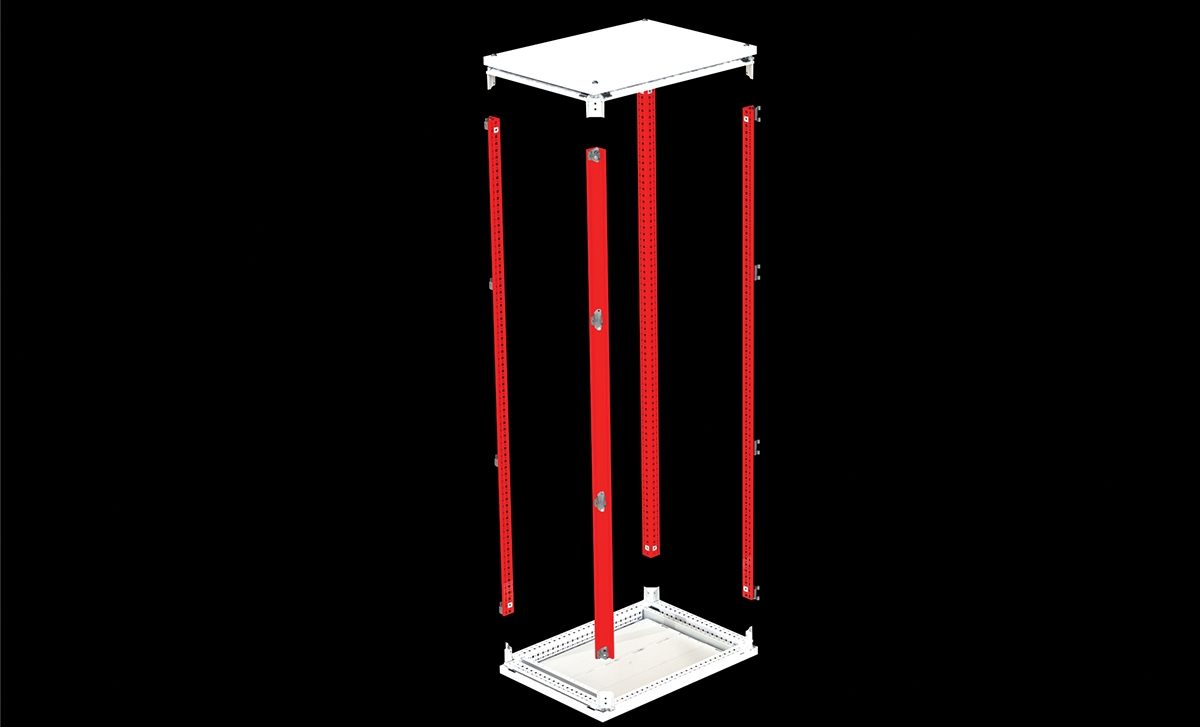

Vertical Frames
   Product CodeHeigth(H)
2D DXF3D STEP702.1201200
2D DXF3D STEP702.1601600
2D DXF3D STEP702.1801800
2D DXF3D STEP702.2002000
2D DXF3D STEP702.2202200

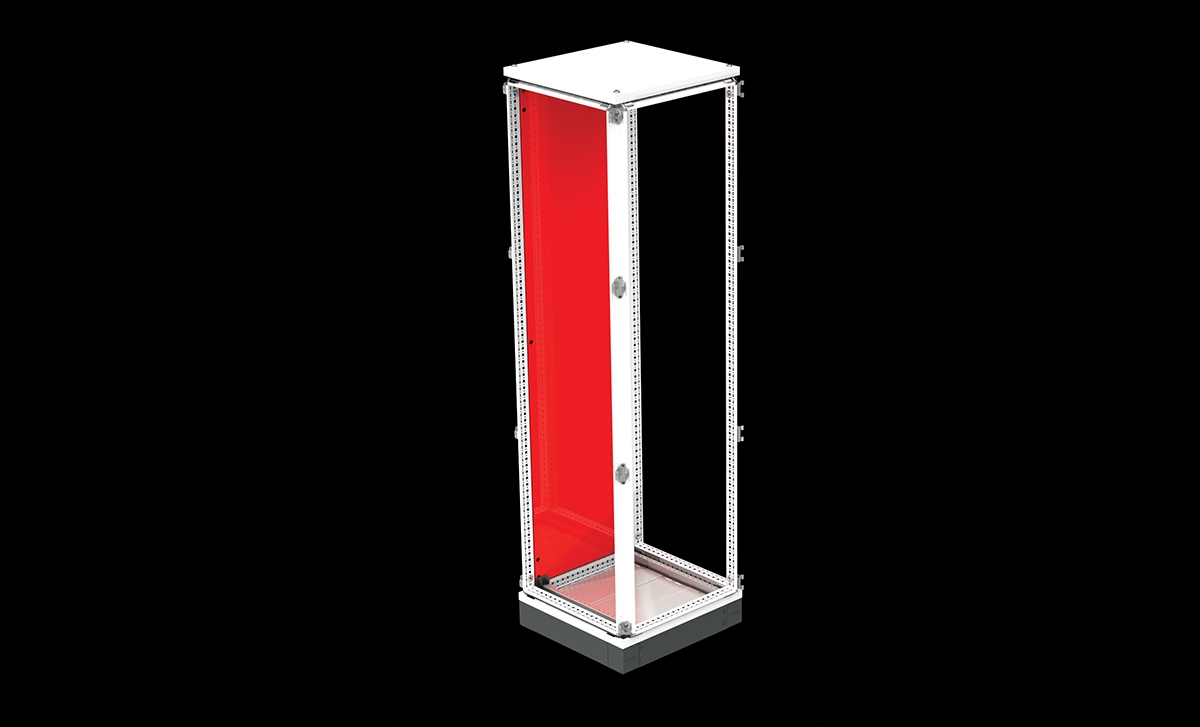

Rear Panel
   Product CodeWidth(W)Heigth(H)
2D DXF3D STEP703.01810001800
2D DXF3D STEP703.02010002000
2D DXF3D STEP703.21212001200
2D DXF3D STEP703.21612001600
2D DXF3D STEP703.21812001800
2D DXF3D STEP703.22012002000
2D DXF3D STEP703.22212002200
2D DXF3D STEP703.4184001800
2D DXF3D STEP703.4204002000
2D DXF3D STEP703.6126001200
2D DXF3D STEP703.6166001600
2D DXF3D STEP703.6186001800
2D DXF3D STEP703.6206002000
2D DXF3D STEP703.6226002200
2D DXF3D STEP703.7207002000
2D DXF3D STEP703.8128001200
2D DXF3D STEP703.8168001600
2D DXF3D STEP703.8188001800
2D DXF3D STEP703.8208002000
2D DXF3D STEP703.8228002200

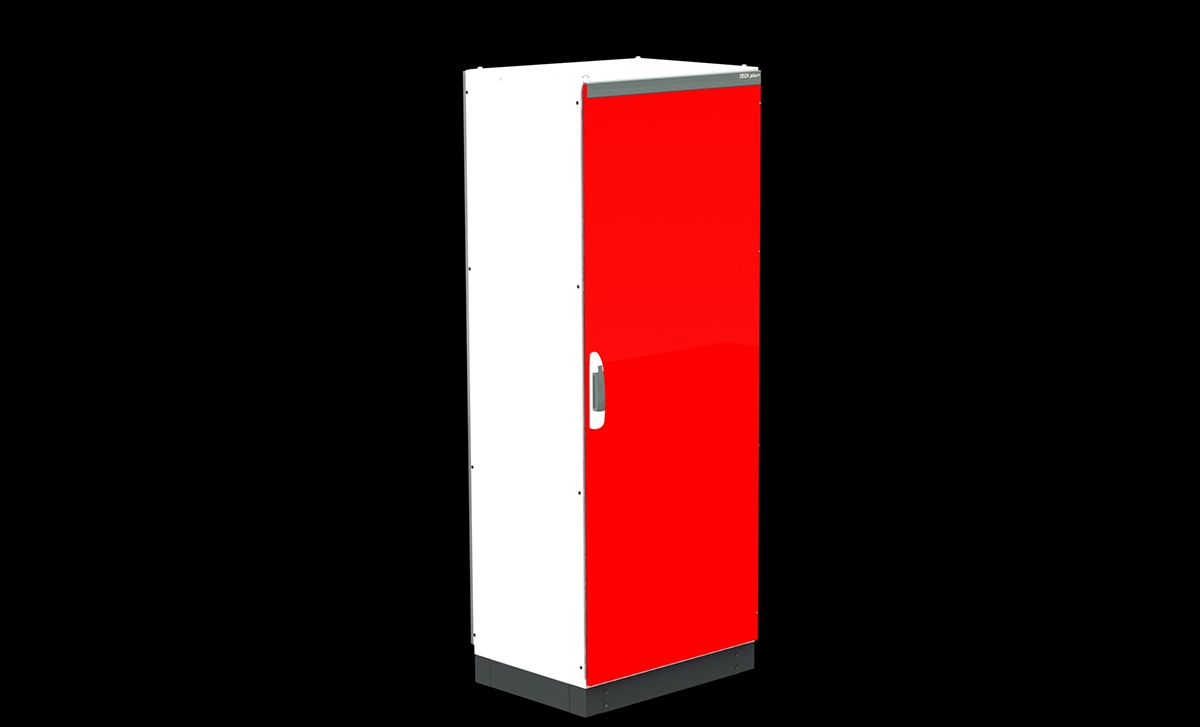

Solid Door
   Product CodeWidth(W)Heigth(H)Door Type
2D DXF3D STEP724.01810001800Double
2D DXF3D STEP724.02010002000Double
2D DXF3D STEP724.02110002000Single
2D DXF3D STEP724.21212001200Double
2D DXF3D STEP724.21612001600Double
2D DXF3D STEP724.21812001800Double
2D DXF3D STEP724.22012002000Double
2D DXF3D STEP724.22212002200Double
2D DXF3D STEP724.4184001800Single
2D DXF3D STEP724.4204002000Single
2D DXF3D STEP724.6126001200Single
2D DXF3D STEP724.6166001600Single
2D DXF3D STEP724.6186001800Single
2D DXF3D STEP724.6206002000Single
2D DXF3D STEP724.6226002200Single
2D DXF3D STEP724.7207002000Single
2D DXF3D STEP724.8118001800Double
2D DXF3D STEP724.8128001200Single
2D DXF3D STEP724.8168001600Single
2D DXF3D STEP724.8188001800Single
2D DXF3D STEP724.8208002000Single
2D DXF3D STEP724.8218002000Double
2D DXF3D STEP724.8228002200Single

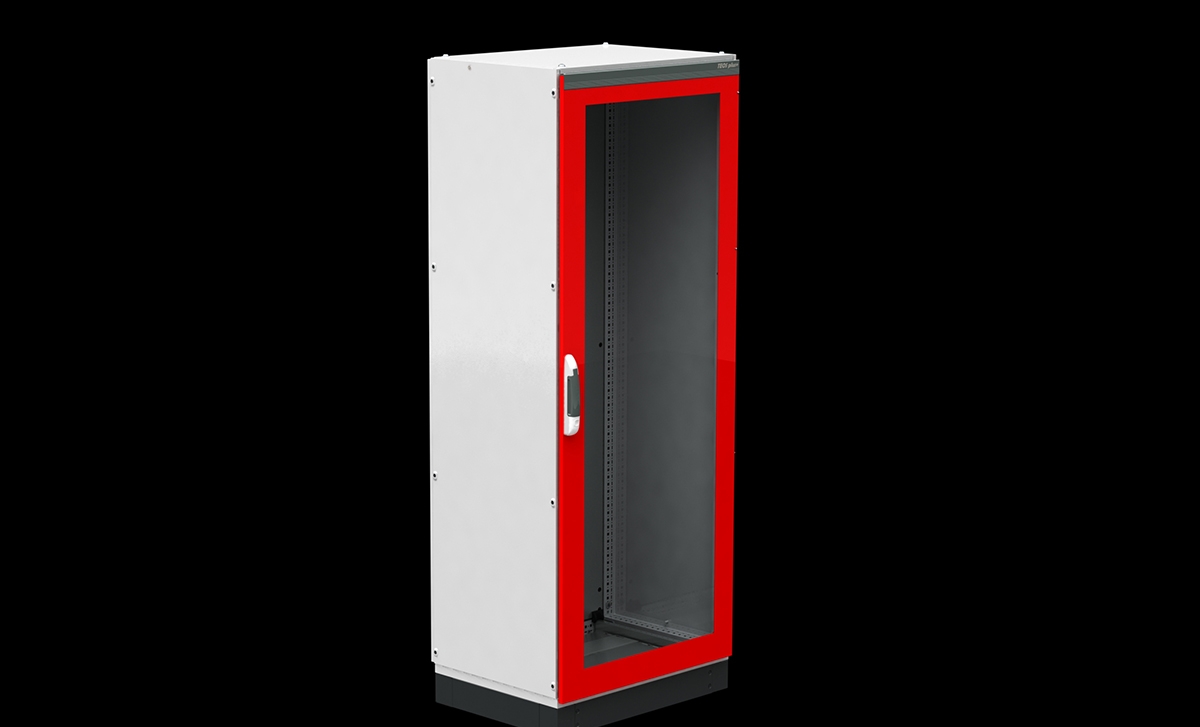

Glazed Door
   Product CodeWidth(W)Heigth(H)Door Type
2D DXF3D STEP725.6186001800Single
2D DXF3D STEP725.6206002000Single
2D DXF3D STEP725.7207002000Single
2D DXF3D STEP725.8188001800Single
2D DXF3D STEP725.8208002000Single
Mounting Plate (3mm)
   Product CodeWidth(W)Heigth(H)
2D DXF3D STEP707.01810001800
2D DXF3D STEP707.02010002000
2D DXF3D STEP707.21212001200
2D DXF3D STEP707.21612001600
2D DXF3D STEP707.21812001800
2D DXF3D STEP707.22012002000
2D DXF3D STEP707.22212002200
2D DXF3D STEP707.4184001800
2D DXF3D STEP707.4204002000
2D DXF3D STEP707.6126001200
2D DXF3D STEP707.6166001600
2D DXF3D STEP707.6186001800
2D DXF3D STEP707.6206002000
2D DXF3D STEP707.6226002200
2D DXF3D STEP707.7187001800
2D DXF3D STEP707.7207002000
2D DXF3D STEP707.8128001200
2D DXF3D STEP707.8168001600
2D DXF3D STEP707.8188001800
2D DXF3D STEP707.8208002000
2D DXF3D STEP707.8228002200
Base Corner Piece
   Product CodePlinth Heigth
2D DXF3D STEP708.100100
2D DXF3D STEP708.200200
Base Front–Rear Covers
   Product CodeWidth(W)
2D DXF3D STEP709.1001000
2D DXF3D STEP709.1201200
2D DXF3D STEP709.140400
2D DXF3D STEP709.160600
2D DXF3D STEP709.170700
2D DXF3D STEP709.180800
Base Side Covers
   Product CodeDepth(D)
2D DXF3D STEP710.1001000
2D DXF3D STEP710.140400
2D DXF3D STEP710.150500
2D DXF3D STEP710.160600
2D DXF3D STEP710.180800
Block Base
Click here for more information
Block Base Side Covers
Click here for more information
Block Base Bottom Covers
Click here for more information
M12 Adjustable Foot
Click here for more information
Wheel Set
Click here for more information

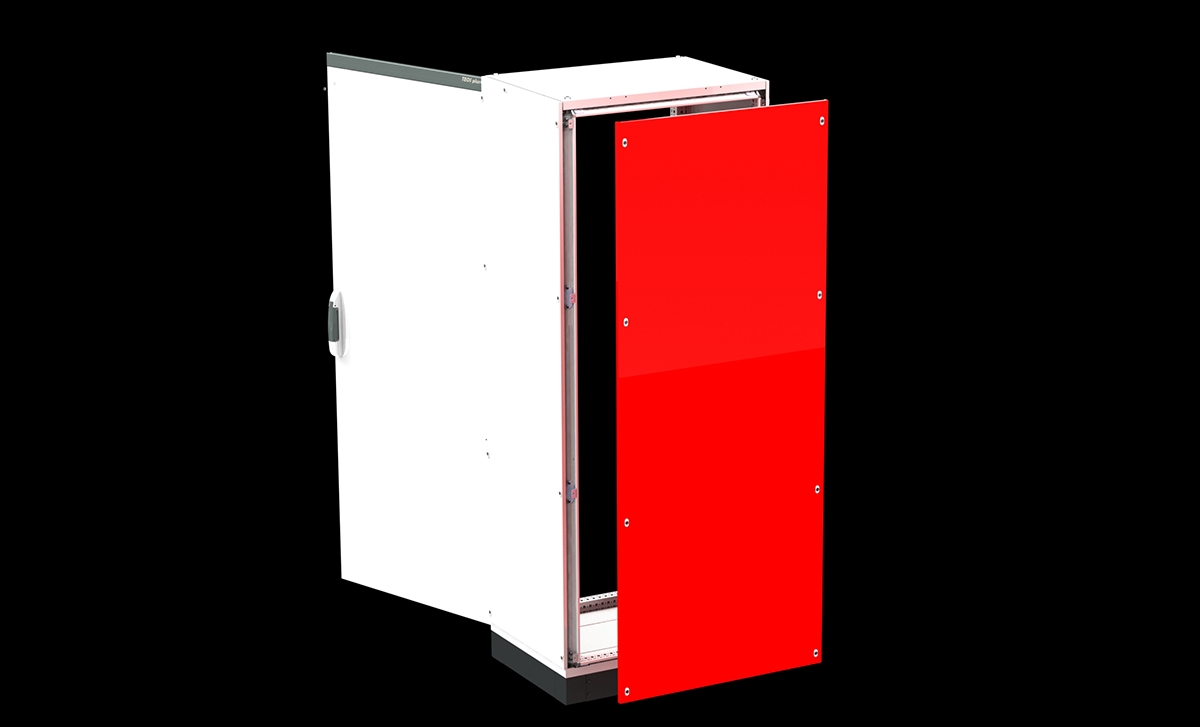

TEOS Side Panels
   Product CodeHeigth(H)Depth(D)
2D DXF3D STEP706.1241200400
2D DXF3D STEP706.1251200500
2D DXF3D STEP706.1261200600
2D DXF3D STEP706.1641600400
2D DXF3D STEP706.1651600500
2D DXF3D STEP706.1661600600
2D DXF3D STEP706.1841800400
2D DXF3D STEP706.1851800500
2D DXF3D STEP706.1861800600
2D DXF3D STEP706.1881800800
2D DXF3D STEP706.20020001000
2D DXF3D STEP706.2042000400
2D DXF3D STEP706.2052000500
2D DXF3D STEP706.2062000600
2D DXF3D STEP706.2082000800
2D DXF3D STEP706.2252200500
2D DXF3D STEP706.2262200600
TEOS Joining Kit
   Product Code
2D DXF3D STEP711.000
TEOS Group Cabinet Joining Kit
   Product Code
2D DXF3D STEP1036.001
M12 Eyebolt Carrier
   Product Code
2D DXF3D STEP612.000
Wall Mounting Profile
Click here for more information
Top Angle Profile
Click here for more information
Corner Cabinet Adapter
Click here for more information
Sponge Cable Entry System
   Product CodeWidth(W)
2D DXF3D STEP923.1001000
2D DXF3D STEP923.1201200
2D DXF3D STEP923.400400
2D DXF3D STEP923.600600
2D DXF3D STEP923.700700
2D DXF3D STEP923.800800
Brush Cable Entry System
   Product CodeWidth(W)
2D DXF3D STEP923.1011000
2D DXF3D STEP923.1211200
2D DXF3D STEP923.401400
2D DXF3D STEP923.601600
2D DXF3D STEP923.701700
2D DXF3D STEP923.801800
Cable Tie Rail
   Product CodeWidth(W)
2D DXF3D STEP998.1001000
2D DXF3D STEP998.1201200
2D DXF3D STEP998.400400
2D DXF3D STEP998.600600
2D DXF3D STEP998.700700
2D DXF3D STEP998.800800
Cable Clamp
   Product CodeCable DiameterQuantity
2D DXF3D STEP998.60014 - 2020
2D DXF3D STEP998.70020 - 2815
Cable Fixing Rail (C-Type)
   Product CodeWidth(W)Rail Size mm
2D DXF3D STEP973.040400250
2D DXF3D STEP973.060600450
2D DXF3D STEP973.080800650
Rail Elevators
Click here for more information
Mounting Plate (3 mm)
Click here for more information
Mounting Plate (2 mm)
Click here for more information
Intermediate Mounting Plate
   Product CodeHeigth(H)
2D DXF3D STEP712.1201200
2D DXF3D STEP712.1601600
2D DXF3D STEP712.1801800
2D DXF3D STEP712.2002000
2D DXF3D STEP712.2202200
Edge Extension Plate
Click here for more information
Split Mounting Plates
Click here for more information
Cuttable Crossbar, Zinc-Plated (50x25 mm)
Click here for more information
Cuttable Crossbar, Pre-galvanized (50x25 mm)
Click here for more information
Heavy Equipment Profile
Click here for more information
Snap-in Crossbar Holder
   Product CodeQuantity
2D DXF3D STEP944.420100
2D DXF3D STEP944.42112
Crossbar Holder (T-Type)
   Product CodeQuantity
2D DXF3D STEP944.4334
Adjustable Crossbar Holder (L-Type)
   Product CodeQuantity
2D DXF3D STEP944.4344
Adjustable Mounting Kit
Click here for more information
Aluminum DIN Rail Kit (Rear Mounted)
Click here for more information
Aluminum DIN Rail Kit (Front Mounted)
Click here for more information
Cabinet Partition Panel (TEOS)
Click here for more information
LED Cabinet Lamp (Screw Mount)
Click here for more information
LED Cabinet Lamp (Magnetic Mount)
Click here for more information
LED Lamp Mounting Rail
   Product CodeWidth(W)
2D DXF3D STEP903.204400
2D DXF3D STEP903.206600
2D DXF3D STEP903.207700
2D DXF3D STEP903.208800
2D DXF3D STEP903.2101000
2D DXF3D STEP903.2121200
Door Lighting Switch
   Product Code
2D DXF3D STEP902.110
Switch Holder
   Product Code
2D DXF3D STEP903.300
Fixed Mounting Shelves
Click here for more information
Sliding Mounting Shelves
Click here for more information
19" Mounting Profile
Click here for more information
800-Width Profile Adapter
Click here for more information
19" Fixed Mounting Shelves
Click here for more information
19" Sliding Mounting Shelves
Click here for more information
19" Swing-Frame System
Click here for more information
Upper-Lower Fixed Panel
   Product CodeWidth(W)ModelPanel Heigth
2D DXF3D STEP854.410400Upper-Fixed100
2D DXF3D STEP854.420400Upper-Fixed200
2D DXF3D STEP854.610600Upper-Fixed100
2D DXF3D STEP854.620600Upper-Fixed200
2D DXF3D STEP854.810800Upper-Fixed100
2D DXF3D STEP854.820800Upper-Fixed200
2D DXF3D STEP855.410400Lower Fixed200
2D DXF3D STEP855.420400Lower Fixed200
2D DXF3D STEP855.610600Lower Fixed100
2D DXF3D STEP855.620600Lower Fixed200
2D DXF3D STEP855.810800Lower Fixed100
2D DXF3D STEP855.820800Lower Fixed200
Hinged Split Door
   Product CodeWidth(W)ModelPanel Heigth
2D DXF3D STEP853.410400Middle-Hinged1000
2D DXF3D STEP853.415400Middle-Hinged150
2D DXF3D STEP853.420400Middle-Hinged200
2D DXF3D STEP853.425400Middle-Hinged250
2D DXF3D STEP853.430400Middle-Hinged300
2D DXF3D STEP853.435400Middle-Hinged350
2D DXF3D STEP853.440400Middle-Hinged400
2D DXF3D STEP853.445400Middle-Hinged450
2D DXF3D STEP853.450400Middle-Hinged500
2D DXF3D STEP853.460400Middle-Hinged600
2D DXF3D STEP853.480400Middle-Hinged800
2D DXF3D STEP853.610600Middle-Hinged1000
2D DXF3D STEP853.615600Middle-Hinged150
2D DXF3D STEP853.620600Middle-Hinged200
2D DXF3D STEP853.625600Middle-Hinged250
2D DXF3D STEP853.630600Middle-Hinged300
2D DXF3D STEP853.635600Middle-Hinged350
2D DXF3D STEP853.640600Middle-Hinged400
2D DXF3D STEP853.645600Middle-Hinged450
2D DXF3D STEP853.650600Middle-Hinged500
2D DXF3D STEP853.660600Middle-Hinged600
2D DXF3D STEP853.680600Middle-Hinged800
2D DXF3D STEP853.810800Middle-Hinged1000
2D DXF3D STEP853.815800Middle-Hinged150
2D DXF3D STEP853.820800Middle-Hinged200
2D DXF3D STEP853.825800Middle-Hinged250
2D DXF3D STEP853.830800Middle-Hinged300
2D DXF3D STEP853.835800Middle-Hinged350
2D DXF3D STEP853.840800Middle-Hinged400
2D DXF3D STEP853.845800Middle-Hinged450
2D DXF3D STEP853.850800Middle-Hinged500
2D DXF3D STEP853.860800Middle-Hinged600
2D DXF3D STEP853.880800Middle-Hinged800
Door-Inner Mounting Crossbar
   Product CodeWidth(W)
2D DXF3D STEP997.104400 Single Door / 800 Double Door
2D DXF3D STEP997.1111000 Single Door / -­
2D DXF3D STEP997.113600 Single Door / 1200 Double Door
2D DXF3D STEP997.114800 Single Door / -
2D DXF3D STEP997.115­- / 1000 Double Doors
2D DXF3D STEP997.116700 Single Door / -
Metal Document Pocket
   Product CodeWidth(W)
2D DXF3D STEP994.704400 Tek Kapı / 800 Çift kapı
2D DXF3D STEP994.706600 Tek Kapı / 1200 Çift Kapı
2D DXF3D STEP994.707700 Tek Kapı / - ­
2D DXF3D STEP994.708800 Tek Kapı / - ­
2D DXF3D STEP994.710­- / 1000 Çift Kapı
2D DXF3D STEP994.7111000 Tek Kapı / -­
Door Stopper (TEOS)
   Product CodeModel
2D DXF3D STEP905.202Right
2D DXF3D STEP
2D DXF3D STEP
2D DXF3D STEP
2D DXF3D STEP
Lever Locks (TEOS)
   Product CodeModelKey Code
2D DXF3D STEP950.103Complete Lock (Padlock)5333 Cylindrical
2D DXF3D STEP951.250İnsert5,00 mm Doublebit
2D DXF3D STEP951.251İnsert8,00 mm Square
2D DXF3D STEP951.252İnsert9,00 mm Triangle
Lock Keys
   Product CodeModel
2D DXF3D STEP952.1015,00 mm Doublebit
2D DXF3D STEP
2D DXF3D STEP952.1028,00 mm Square
2D DXF3D STEP952.1039,00 mm Triangle
2D DXF3D STEP952.3005333 Cylindrical
Self-Tapping Screws
   Product CodeModelQuantity
2D DXF3D STEP993.105M5x10mm Self Tapping100
2D DXF3D STEP993.106Self Drilling100
Earthing Cables
   Product CodeModelQuantityCross-cut x Length
2D DXF3D STEP991.200Braided - M61012 x 3 x 163mm
2D DXF3D STEP991.201Braided - M61012 x 3 x 260mm
2D DXF3D STEP991.202Braided - M8515 x 3 x 260mm
2D DXF3D STEP991.203Braided - M6112 x 3 x 260mm
2D DXF3D STEP991.204Braided - M8115 x 3 x 260mm
2D DXF3D STEP991.205Braided - M6112 x 3 x 163mm
2D DXF3D STEP991.208Yellow-Green Cable-M8516mm² x 210mm
2D DXF3D STEP991.209Yellow-Green Cable-M8516mm² x 260mm
2D DXF3D STEP991.210Yellow-Green Cable-M8516mm² x 310mm
M6 Profile Nut
   Product CodeQuantity
2D DXF3D STEP994.170100
2D DXF3D STEP994.17110

Tekpan product technical documents, brochures and catalogs, support line

Tekpan Product Catalogue and Brochures

CLICK HERE FOR DOCUMENTS

EXPERT LEVEL CERTIFICATION

Venüs Ajans web tasarım
